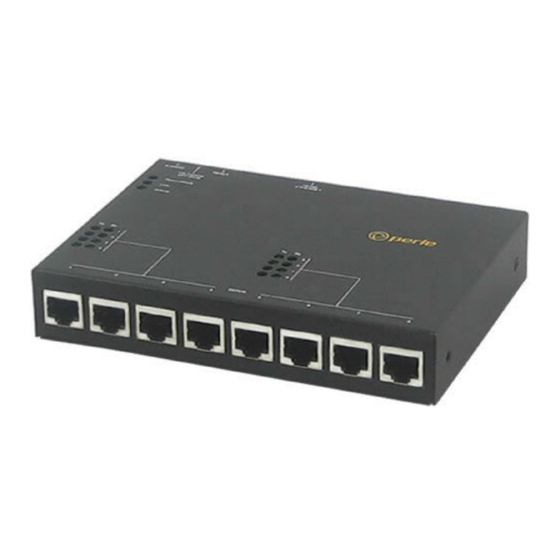

- Page 1 IOLAN STS8D GR/SDS8P GR Hardware Installation Guide Updated: October 2017 Version A.1.10.03.2017 www.perle.com Document Part#:5500426-10...
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
IOLAN STS8D GR / SDS8P GR ........ -
Page 4: Preface
This document describes the hardware and physical characteristics of the Perle IOLAN STS8D GR /SDS8P GR. It covers hardware features as well as installation and operation of the IOLAN. This document does not cover how to configure your Perle IOLAN STS8D GR / SDS8P GR. -
Page 5: Overview
LED Indicators Power/Ready Connecting the Power Connecting the Console Port Rebooting/Resetting the IOLAN Connecting Data Ports Configuring the IOLAN IOLAN STS8D GR / SDS8P GR The IOLAN STS8D GR only supports RS‐232 on RJ45‐10 pin. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... -
Page 6: Iolan Stsd Gr/Sds8P Gr (Back View With Socket For Barrel Connector)
In console mode, the port provides access to the IOLAN management function using the industry standard CLI command set. See the IOLAN Command Line Interface Reference Guide for more information. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... -
Page 7: Led Indicators
Error condition Link 10/100/1000 State Description Green 1000 Mbps Amber 100 /10 Mbps No LAN connection Activity State Description Green Flashes with activity Amber Flashes with activity No LAN connection IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... -
Page 8: Installation
Connecting the Power The STS8D GR model connects to power using the power adapter that came with your IOLAN. The SDS8P GR does not come with a Perle supplied external power adapter, how‐ ever it can be powered over Ethernet. -
Page 9: Connecting The Console Port
3. Connect an RJ45 cable directly from the IOLAN to the COM port on your PC. An RJ45 to DB9 adapter can be ordered from Perle. 4. Choose Start > Control Panel > Systems or equivalent on the Windows Operating System you are using. -
Page 10: Rebooting/Resetting The Iolan
2. Once the IOLAN is connected and the link is established, the link LEDs will turn on. These LEDs will indicate whether you have a 10, 100 or 1000 Mbps link to your hub/ switch. See. (LED Indicators Power/Ready) for more details. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... - Page 11 Ethernet Connector - 8-pin RJ-45 IOLAN STS8D GR/SDS8P GR Hardware Installation Guide...
-
Page 12: Configuring The Iolan
SSH, SNMP or the Web interface. Web Device Manager The Perle Web Device Manager is an embedded Web based application that provides an easy to use browser interface for configuring and managing the IOLAN. The IOLAN can be accessed through any standard desktop web browser. The IOLAN must have a valid IP address. -
Page 13: Appendix A - Technical Specifications
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. https://www.perle.com/support_services/support_request.shtm Warranty / Registration This product is covered by the Perle IOLAN SDS Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... -
Page 14: Appendix B - Mechanical Drawing
Appendix B - Mechanical Drawing IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... - Page 15 IOLAN STS8D GR/SDS8P GR Hardware Installation Guide...
-
Page 16: Appendix C - Labels (Sample)
Appendix C - Labels (Sample) IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... -
Page 17: Appendix D - Cabling And Connectors
(See the IOLAN User’s Guide for information on setting this parameter in your IOLAN firmware). If EIA 422 or 485 is selected, the line termination may need to be set. Line Termination is not necessary unless the IOLAN’s are the end points. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide... - Page 18 To terminate Serial Port 6 for Full P9, jumper pins 1 & 2 P9, jumper pins 2 & 3 Duplex set DIP switch 1 ON. To terminate for Half Duplex set only DIP switch 2 to ON. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide...
- Page 19 For fixed 5V DC output, jumper pins 1 and 2. For the output to equal the external adapter input, jumper pins 2 and 3 4. Close the IOLAN case by replacing the case lid and the screws. You can now power the IOLAN with the new settings. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide...
-
Page 20: Appendix E - Iolan Maintenance
• Do not use solvents or cleaning agents on this unit. • Keep vent holes clear of debris. • If case gets dirty wipe with a dry cloth. • Ensure all cables are in working condition. IOLAN STS8D GR/SDS8P GR Hardware Installation Guide...
