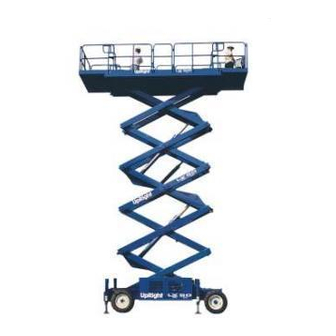

Upright LX31 Operator's Manual
  1. Manuals
  2. Brands
  3. Upright Manuals
  4. Lifting Systems
  5. LX31
  6. Operator's manual

Upright LX31 Operator's Manual

Serial no. 4022 to current
Hide thumbs Also See for LX31:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Operator Manual
LX31/41/50
SERIAL NO. 4022 to Current
WARNING
All personnel shall carefully read, understand and follow all safety rules,
operating instructions, and the Scaffold Industry Association's
MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999 before performing
maintenance on or operating any UpRight Aerial Work Platform.
L
D
:
USA
OCAL
ISTRIBUTOR
TEL: (1) 800-926-5438 or (1) 559-662-3900
FAX: (1) 559-673-6184
Parts FAX: (1) 800-669-9884
801 South Pine Street
Madera, California 93637
http://www.upright.com
E
UROPE
TEL: +353 1 620 9300
FAX: +353 1 620 9301
Unit S1, Park West Industrial Park
Friel Avenue
067903-004R1
Nangor Road
Dublin 12, Ireland
06-02
067903-004R1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Upright LX31

Summary of Contents for Upright LX31

  • Page 1 All personnel shall carefully read, understand and follow all safety rules, operating instructions, and the Scaffold Industry Association’s MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999 before performing maintenance on or operating any UpRight Aerial Work Platform. OCAL ISTRIBUTOR TEL: (1) 800-926-5438 or (1) 559-662-3900...
  • Page 2 Serial Numbers 4022 - Current When contacting UpRight for service or parts information, be sure to include the MODEL and SERIAL NUMBERS from the equipment nameplate. Should the nameplate be missing, the SERIAL NUMBER is also stamped on top of the chassis above the left front axle pivot.
  • Page 3 Low Temperature (<32° F [0° C]) ISO #32 ISO #32 ISO #32 • NEVER use damaged equipment. (Contact UpRight for instructions. See toll free phone number on inside back cover.) Extreme Temperature (<0° F [-17° C]) ISO #15 ISO #15 ISO #15 •...

  • Page 4: Table Of Contents

    LX31 and LX41, Serial # 4275 to Current ....... . .

  • Page 5: Introduction

    These labels shall be present and in good condition before operating the work platform. Be sure to read, This manual covers the operation of the LX31, LX41 and LX50 Internal Combustion Work Platforms. This understand and follow these labels when operating the work platform.

  • Page 6: Controls And Indicators

    067903-004R1 LX Series Work Platform Controls and Indicators Preventative Maintenance 067903-004R1 LX Series Work Platform ONTROLS AND NDICATORS REVENTATIVE AINTENANCE Figure 3: Controls and Indicators The complete inspection consists of periodic visual and operational checks, along with periodic minor adjustments to assure proper performance. Daily inspection will prevent abnormal wear and prolong the Platform Controls Chassis Controls life of all systems.

  • Page 7: Pre-Operation & Safety Inspection

    6. Check tire pressure: LX31 and LX41 - 3,4 bar (50 psi). The LX50 is equipped with poly-filled tires. 7. Carefully inspect the entire work platform for damage such as cracked welds in structural members, loose or missing parts, oil leaks, damaged cables or hoses, loose connections and tire damage.

  • Page 8: Operation

    14. Release the tilt sensor and fully elevate the platform. Always replace batteries with UpRight batteries or manufacturer 15. Visually inspect the elevating assembly, lift cylinder, cables and hoses for damage or erratic operation. approved replacements.
  • Page 9 067903-004R1 LX Series Work Platform Maintenance Operation 067903-004R1 LX Series Work Platform AINTENANCE PERATION Figure 11: Blocking Elevating Assembly NOTE: Before operating the work platform, ensure that the pre-operation and safety inspection has been completed, any deficiencies have been corrected, and the operator has been thoroughly trained on this machine. W A R N I N G W A R N I N G Upper Scissor...
  • Page 10 067903-004R1 LX Series Work Platform Operation Transporting Work Platform 067903-004R1 LX Series Work Platform R A V E L W I T H O R K L A T F O R M L E V A T E D RANSPORTING LATFORM Travel with the platform elevated ONLY on firm and level surfaces.

  • Page 11: Emergency Lowering

    URRENT located at the top of the sockets that hold the slide-out deck side Figure 5: Emergency Lowering Knob, LX31 and LX41 guardrails to the deck (C) The Emergency Lowering Control Knob is • fold the side guardrails down onto...

  • Page 12: Towing Or Winching

    067903-004R1 LX Series Work Platform Operation Towing or Winching 067903-004R1 LX Series Work Platform E V E L I N G T H E L A T F O R M OWING OR INCHING U T R I G G E R E Q U I P P E D M A C H I N E S O N L Y Perform the following only when the machine will not operate under its own power and it is necessary to move the machine or when winching onto a transport vehicle (see “Transporting Work Platform”...

This manual is also suitable for:

Lx41Lx50
