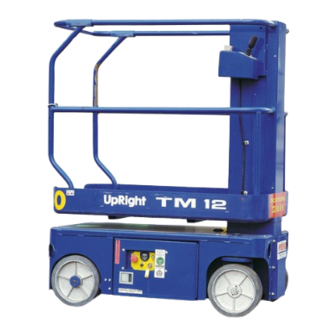

Upright TM12 Operator's Manual
Hide thumbs
Also See for TM12:
- Service & parts manual (102 pages) ,
- Service manual (84 pages) ,
- Operator's manual (26 pages)
Table of Contents
Advertisement
Quick Links
Operator Manual
TM12
SERIAL NO. 7352 to Current
WARNING
All personnel shall carefully read, understand and follow all safety rules,
operating instructions, and the Scaffold Industry Association's
MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999 before performing
maintenance on or operating any UpRight Aerial Work Platform.
L
D
:
USA
OCAL
ISTRIBUTOR
TEL: (1) 800-926-5438 or (1) 559-662-3900
FAX: (1) 559-673-6184
Parts FAX: (1) 800-669-9884
801 South Pine Street
Madera, California 93637
http://www.upright.com
E
UROPE
TEL: +353 1 620 9300
FAX: +353 1 620 9301
Unit S1, Park West Industrial Park
Friel Avenue
Nangor Road
P/N 107098-002
Dublin 12, Ireland
07-02
P/N 107098-002
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Upright TM12
Summary of Contents for Upright TM12
- Page 1 All personnel shall carefully read, understand and follow all safety rules, operating instructions, and the Scaffold Industry Association’s MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999 before performing maintenance on or operating any UpRight Aerial Work Platform. OCAL ISTRIBUTOR TEL: (1) 800-926-5438 or (1) 559-662-3900...
- Page 2 Serial Number 7352 – Current When contacting UpRight for service or parts information, be sure to include the MODEL and SERIAL NUMBERS from the equipment nameplate. Should the nameplate be missing, the SERIAL NUMBER is also stamped on top of the chassis above the front axle pivot.
- Page 3 • DISTRIBUTE all platform loads evenly on the platform. Horizontal Drive Dual Front Wheel • NEVER use damaged equipment. (Contact UpRight for instructions. See toll free phone number on inside back cover.) Tires 30,5 cm (12 in.) diameter solid rubber, Non-marking...
- Page 4 Specifications ...............16 Page 2 107098-002 TM12 - Operator Manual 107098-002 TM12 - Operator Manual...
-
Page 5: Introduction
These labels shall be present and in good condition before operating the machine. Be sure to read, under- This manual covers the TM12 Aerial Work Platform. This manual must be stored on the machine at all stand and follow these labels when operating the machine. -
Page 6: Controls And Indicators
6. Check that all guardrails are properly in place and secured with all fasteners properly torqued. 7. Inspect the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, dam- aged cables or hoses, loose wire connections, and wheel bolts. Page 4 107098-002 TM12 - Operator Manual 107098-002 TM12 - Operator Manual Page 13... - Page 7 17. Push the Platform Emergency Stop Switch in to the OFF position. All machine functions should be dis- abled. Pull the Platform Emergency Stop Switch out to resume. Page 12 107098-002 TM12 - Operator Manual 107098-002 TM12 - Operator Manual Page 5...
-
Page 8: Pre-Operation Safety Inspection
L A T F O R M 1. Position the Lift/Drive Switch to LIFT. 2. While depressing the Interlock Switch, pull back on the Control Handle. Page 6 107098-002 TM12 - Operator Manual 107098-002 TM12 - Operator Manual Page 11... -
Page 9: Operation
Battery fluid is highly corrosive. Thoroughly rinse away any spilled fluid with clean water. Valve Knob is located at the front of the chassis. Always replace batteries with UpRight batteries or 1. Open the Emergency Down Valve by pulling the knob manufacturer approved replacements weighing 26,3 kg out. -
Page 10: Transporting The Machine
4. Check the fluid level on the dipstick on the filler cap. 5. Add the appropriate fluid to bring the level to the FULL mark. See “Specifications” on page 16. Page 8 107098-002 TM12 - Operator Manual 107098-002 TM12 - Operator Manual Page 9...
