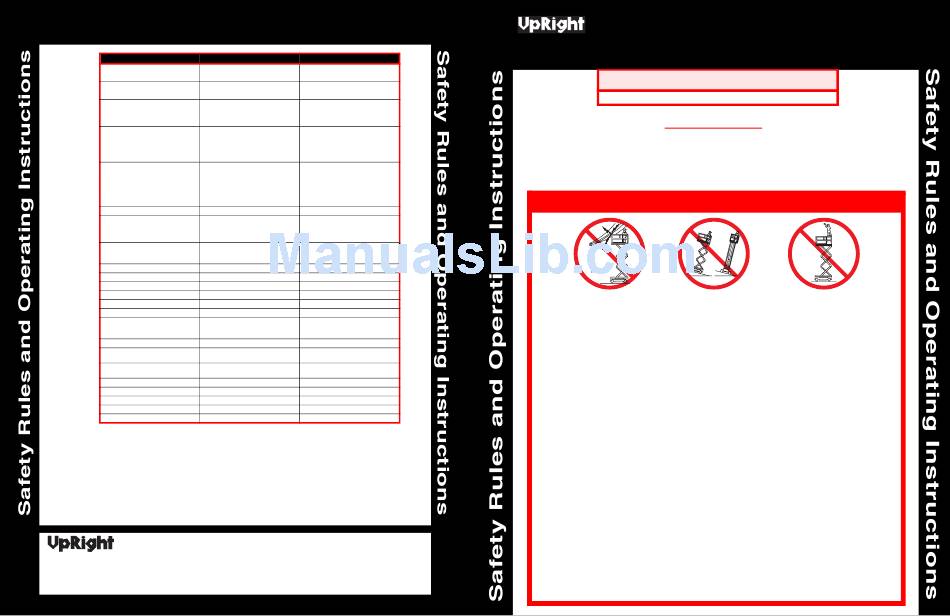

Upright MX15 Operator's Manual

S
PECIFICATIONS
ITEM MX15
Platform Size (Inside minimum)
Standard w/Deck 22.5 in. x 98.5 in. (.57 m x 2.5 m)
Maximum Platform Capacity
Standard w/Deck Extension 550 lbs. (250 kg)
Maximum Number of Occupants
Standard w/Deck Extension 2 People
on Extension 1 Person
Height
Working Height 20 ft. 9 in. (6.3 m)
Maximum Platform Height 14 ft. 9 in. (4.5 m)
Maximum Drivable Height 14 ft. 9 in. (4.5 m)
Dimensions
Weight 2300 lbs. (890 kg)
Overall Width 30 in. (760 mm)
Overall Height (Lowered) 76 in. (1.93 m)
Overall Length (Deck in) 63 in. (1.60 m)
Drivable Height 14 ft. 9 in. (4.5 m)
Drive Speed
Platform Lowered 2.75 mph (4.43 km/h)
Platform Raised .75 mph (1.2 km/h)
24V battery pack (4-220 ampere hour,
Energy Source 6 Volt batteries, min. wt. 62 lbs. (28
kg) each), 4 HP DC electric motor
System Voltage 24 VDC
Battery Charger 20 AMP, 120 VAC 60 Hz, Automatic
Hydraulic Tank Capacity 3.4 gal (12.9 L)
Maximum Hydraulic System Pressure 3000 psi (207 Bar)
Lift System One Single Stage Lift Cylinder
Drive Control Motor Control
Control Handle with Interlock Switch,
Control System Rotary Drive/Lift Switch, and Red
Mushroom Emergency Stop Switch
Drive System Dual Front Wheel Hydraulic Motors
12 in. (30.5 cm) diameter solid rubber,
Tires
Non-marking
Dual, Spring Applied, Hydraulic
Parking Brake
Release
Turning Radius (inside) 1 in. (25 mm) Inside
Maximum Gradeability 25% (14°)
Wheel Base 48.5 in. (1.23 m)
Guardrails 39 in. (1.02 m
Toeboard 6 in. (152 mm)
*Specifications are subject to change without notice. Hot weather or heavy use may affect performance.
Refer to the Service Manual for complete parts and service information.
The MX Series meets or exceeds all applicable requirements of OSHA and ANSI A92.6-1999
Local Distributor:
TEL: (1) 800-926-5438 or (1) 559-662-3900
FAX: (1) 559-673-6184
Parts FAX: (1) 800-669-9884
801 South Pine Street
Madera, California 93637
http://www.upright.com
MX19
22.5 in. x 98.5 in. (.57 m x 2.5 m)
500 lbs. (250 kg)
2 People
1 Person
25 Ft. (7.6 m)
19 Ft. (5.8 m)
19 Ft. (5.8 m)
3154 lbs. (980 kg)
30 in. (760 mm)
79.5 in. (2.02)
63 in. (1.60 m)
19 ft. (5.8 m)
2.75 mph (4.43 km/h)
.75 mph (1.2 km/h)
24V battery pack (4-220 ampere hour,
6 Volt batteries, min. wt. 62 lbs. (28
kg) each), 4 HP DC electric motor
24 VDC
20 AMP, 120 VAC 60 Hz, Automatic
3.4 gal (12.9 L)
3000 psi (207 Bar)
One Single Stage Lift Cylinder
Motor Control
Control Handle with Interlock Switch,
Rotary Drive/Lift Switch, and Red
Mushroom Emergency Stop Switch
Dual Front Wheel Hydraulic Motors
12 in. (30.5 cm) diameter solid rubber,
Non-marking
Dual, Spring Applied, Hydraulic
Release
1 in. (25 mm) Inside
25% (14°)
48.5 in. (1.23 m)
39 in. (1.02 m)
6 in. (152 mm)
060570-004
07-02
Operator Manual
MX15/19
Serial No. 14000 to Current
WARNING
All personnel shall carefully read, understand and follow all safety rules,
operating instructions, and the Scaffold Industry Association's MANUAL
OF RESPONSIBILITIES of ANSI A92.6-1999 before performing
maintenance on or operating any UpRight Aerial Work Platform.
Safety Rules
NEVER operate the machine NEVER elevate the platform or
within ten feet of power lines. drive the machine while elevated
THIS MACHINE IS NOT unless the machine is on firm
INSULATED. level surface.
NEVER operate the machine without first surveying the work area for surface hazards such as holes,
drop-offs, bumps, and debris.
NEVER operate the machine if all guardrails are not properly in place and secured with all fasteners prop-
erly torqued.
SECURE chain across entrance after mounting platform.
NEVER use ladders or scaffolding on the platform.
NEVER attach overhanging loads or increase platform size.
LOOK up, down, and around for overhead obstructions and electrical conductors.
DISTRIBUTE all loads evenly on the platform. See the back cover for maximum platform load.
NEVER use damaged equipment. (Contact UpRight for instructions. See toll-free phone number on back
cover.)
NEVER change operating or safety systems.
INSPECT the machine thoroughly for cracked welds, loose hardware, hydraulic leaks, damaged control
cable, loose wire connections, and wheel bolts.
NEVER climb down elevating assembly with the platform elevated.
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
NEVER recharge battery near sparks or open flame; batteries that are being charged emit highly explo-
sive hydrogen gas.
AFTER USE secure the work platform against unauthorized use by turning key switch off and removing
key.
NEVER replace any component or part with anything other than original UpRight replacement parts with-
out the manufacturer's consent
NEVER sit, stand, or climb on
guardrail or midrail.
