3.8. Encoders

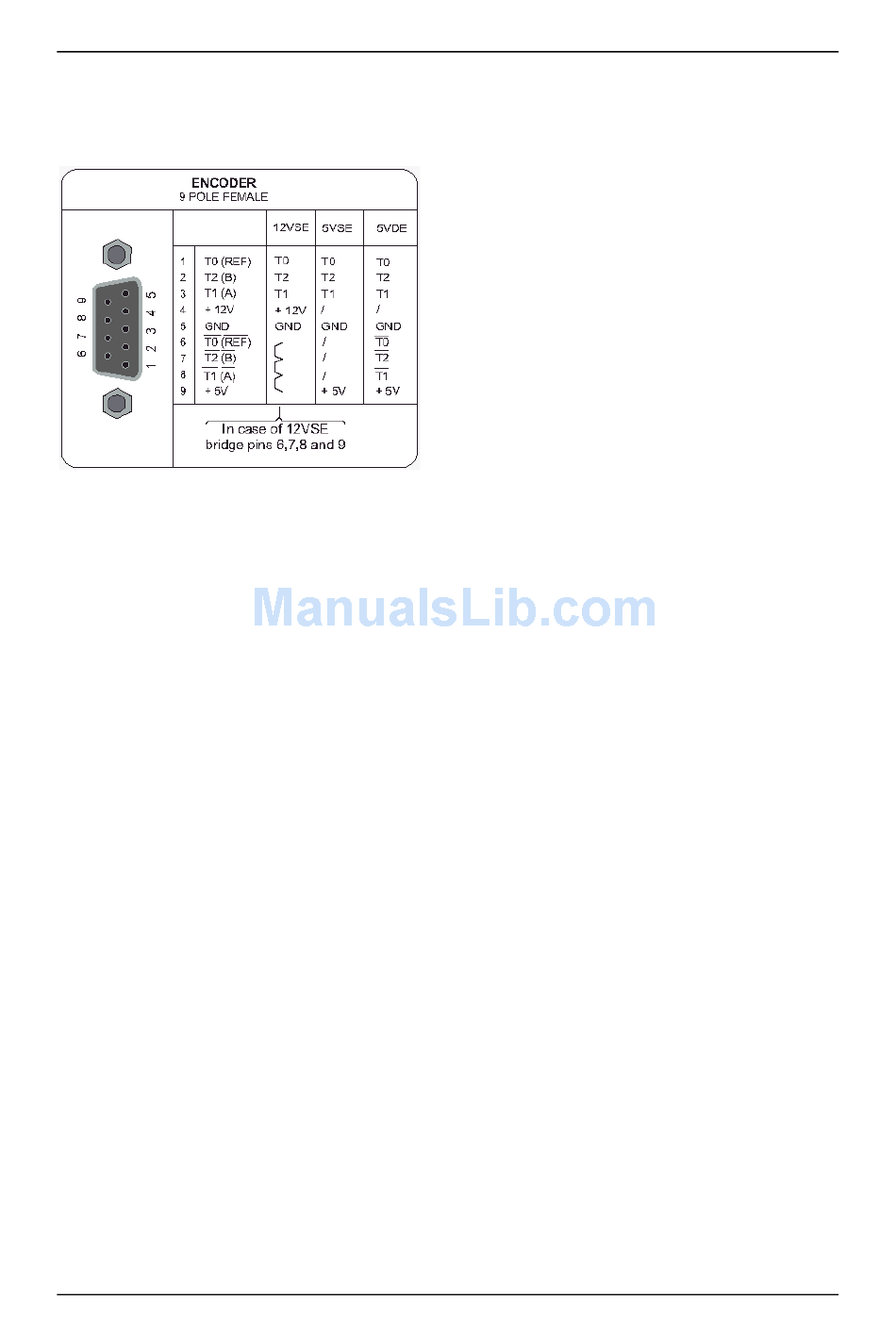

See schematic 8061-101 for connection details.

Notes:

•

In case of 12VSE encoder, connect pins 6, 7, 8 and 9 with each other.

9-pole SUBD female encoder interface

5V DC/250 mA or 12V DC/200 mA

12 V or 5 V single ended or 5 V

differential

Max. count frequency 1 MHz

Delem

V0614, 1.16
