Delem DA-52s Installation Manual page 14

See schematic 8061-101 for connection details.
The use of I/O pins depends on the application and machine settings. For the purpose of all
assigned I/O signals we refer to the Delem machine parameter manual.
I/O power supply:
CN3: Pins 1 - 8
Programmable Digital In-/Outputs (8x):
Digital Output
ON state
OFF state
Digital Input
ON state
OFF state
CN4: Pins 9 - 16
Digital Outputs (4x)
ON state
OFF state
Digital Inputs (4x)
ON state
OFF state
CN5: Pins 17 - 24
Digital Outputs (4x)
ON state
OFF state
Digital Inputs (4x)
ON state
OFF state

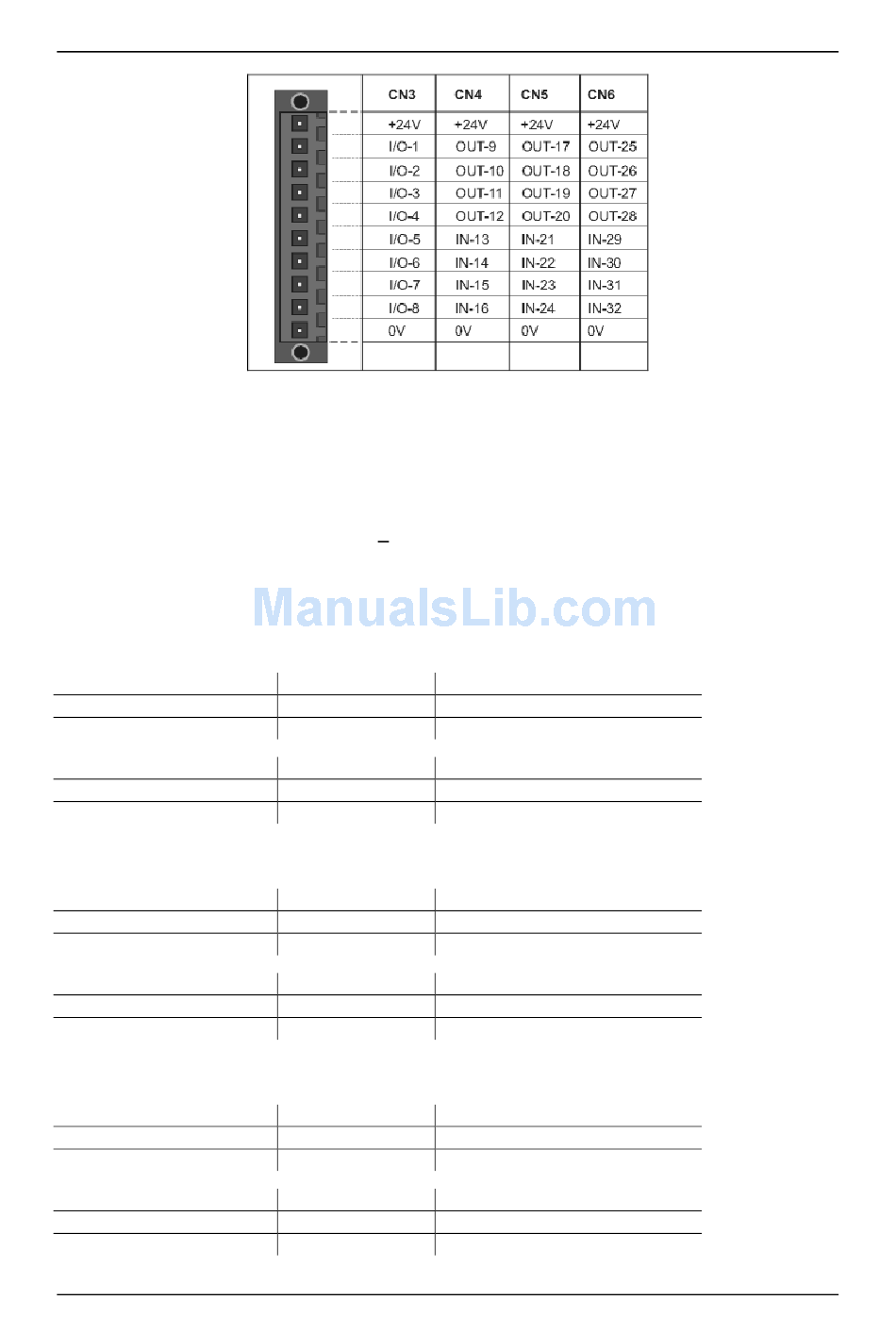

Figure 3.b
24 V DC + 20%
10A max.
Voltage Current
20-28 V DC 0.5 A max.
- 0.1 mA max. (leakage current)
Voltage Current
9-28 V DC 20mA max.
0-4 V DC 1 mA max.
Voltage Current
20-28 V DC 0.5 A max.
- 0.1 mA max. (leakage current)
Voltage Current
9-28 V DC 20mA max.
0 - 4 V DC 1 mA max.
Voltage Current
20-28 V DC 0.5 A max.
- 0.1 mA max. (leakage current)
Voltage Current
9-28 V DC 20mA max.
0 - 4 V DC 1 mA max.
