3.5. Analog A

See schematic 8061-101 for connection details.
Specifications for Analog I/O
Analogue inputs (4x)
Reference voltage (2x)
Analogue outputs (2x)

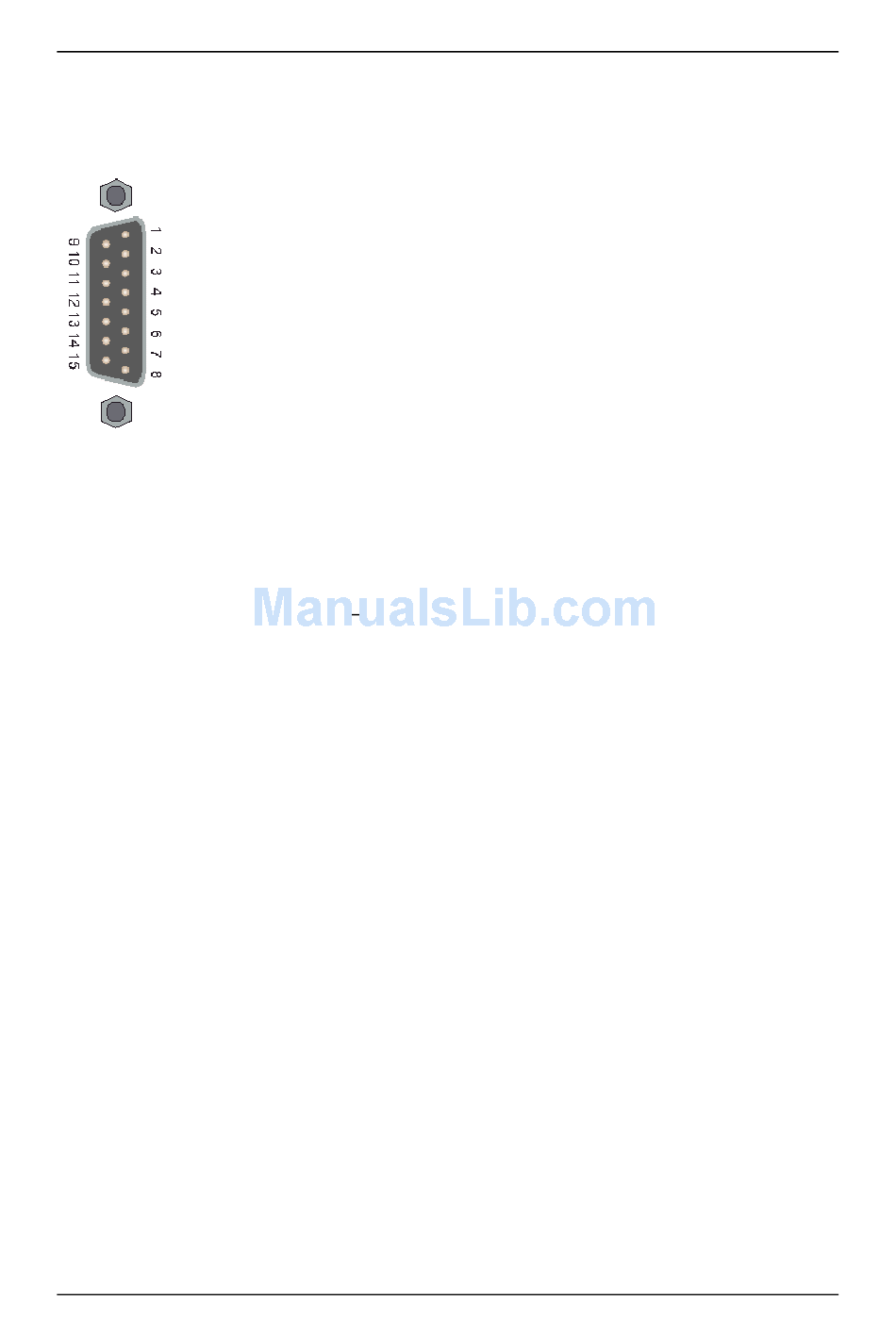

Connector Analog A provides several analog signals, two analog
outputs and four analog inputs.
0-10V, input impedance 44 kΩ
10V + 2%
+/- 10V
10mA max.
maximum load 1 kΩ
Delem
V0614, 1.12
