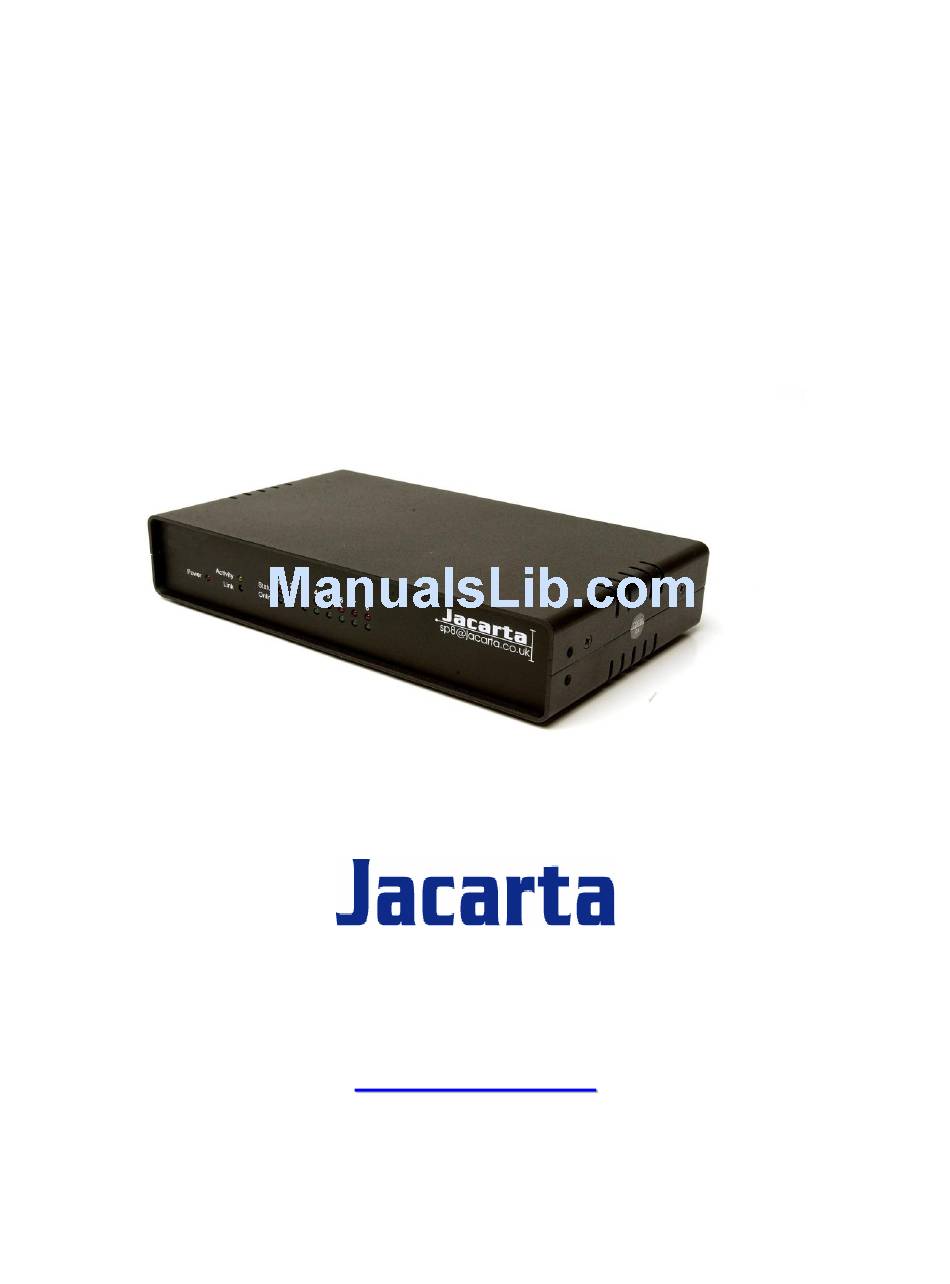

- Page 1 User Manual v 1.1 T. +44 (0) 1672 511125 Email: support@jacarta.com...
-
Page 2: Table Of Contents
SP8 Manual 1) Introduction ...................... 3 1. What is SP8? ......................... 3 2. How to use this manual ......................3 3. SP8 ............................4 2) Installation ......................5 1. Assigning an IP address ......................5 2. Upgrading the firmware ......................6 3) Setting up a sensor ................... -
Page 3: Introduction
Included in this is a TCP/IP stack, Web server, full SNMP support and SMTP E-mail. Any of our Jacarta SP intelligent sensors can be connected via the RJ45 connections or you can add dry contact connection for monitoring UPS, security systems and air conditioning status. -
Page 4: Sp8
SP8 Manual 3. SP8 - 4 -... -
Page 5: Installation
1. Assigning an IP address SP8 is a plug and play device that will easily connect to an existing network setup. Every unit ships with a default IP address 192.168.0.100. The first step to undertake to install the unit will be to assign it an IP address to match the current network configuration. -
Page 6: Upgrading The Firmware
As we are constantly releasing new firmware with added capabilities it is recommended you upgrade to the latest firmware. To do this contact our support team on support@jacarta.com. When the firmware is received it will come in a zip package. Extract this to into a folder named firmware. -
Page 7: Setting Up A Sensor
SP8 Manual 1) Select firmware upgrade 2) Type in the IP address of the unit 3) Type in the administrator password 4) Click browse, a new window will pop up 5) Select the zipped firmware file, click open. 6) When complete the message “upgrade complete” will be displayed... - Page 8 SP8 Manual d) From this page select the word “Temperature” in the Description column to be forwarded to the following page:- The sensors highlighted in green indicate that they are currently connected to the unit. In this case there is a temperature sensor connected and so Temperature is highlighted in green in the menu.
-
Page 9: Notifications
4) Notifications 1. Setting up a trap The SP8 can send an SNMP trap message to two different hosts. Whenever the status changes for a sensor that is online, a trap message can be sent. To get to the entry point of this tutorial complete the following:-... -
Page 10: Setting Up E-Mail Notifications
SP8 Manual Send Keep Alive Trap: - Will send a trap message at the preset time interval. This is useful for informing the user as to whether the unit is still online, or for if you require collection of data at regular intervals regardless of the sensors status. - Page 11 SMTP Server Password: - The password used to login to the SMPT server E-mail subject: - The subject you wish to have for the e-mail e.g. “SP8 notification” Timeout: - The timeout can be increased for SMTP servers that have poor connectivity. It is best to leave this number as low as possible while still allowing for communication with the SMTP server to continue.
-
Page 12: System Settings
SP8 Manual Mail Recipient: - The e-mail address for the e-mail to be sent to. Mail Cc1-5:- Up to five additional e-mail addresses may be added. When you have filled in the required fields remember to click “Save”. d) At the bottom of the page is the „Mail Status‟ section. - Page 13 RTC Battery Status: - This field displays the status of the Real Time Clock battery on the unit. If the status displays “Bad”, the battery needs to be replaced; otherwise, when the SP8 does not have mains power the clock will stop running. Therefore the system time settings will need to be re-configured on every reboot.
-
Page 14: System Tab
One Time - the time is synchronized once the Save button is pressed. On System Start Up - the time is synchronized once the SP8 is turned on or rebooted. Once a Month/Week/Day/Hour - the time is automatically synchronised every month, week, day, or an hour, respectively. - Page 15 SP8 Manual b) The first section is entitled “System Settings” System Description :- This is the current firmware version. This is a read only field. System Name / Location / Contact: - These are used to identify the system. They are accessed via standard SNMP utilities.
- Page 16 SP8 Manual d) Next there is the options for resetting the SNMP trap settings SNMP Port: - Use this option to reset the SNMP port setting to its default SNMP Trap Port: - Use this option to reset the SNMP Trap Port to its default setting e) Finally you have the option for sending the syslog to a remote syslog server.
