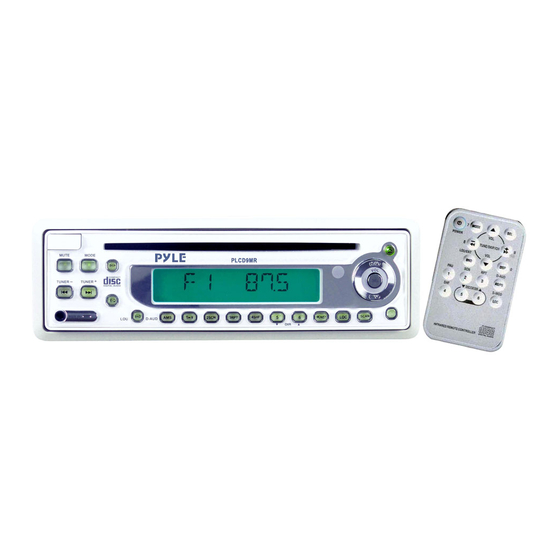

Pyle PLCD9MR Owner's Manual

Mobile audio system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PLCD9MR
OWNER'S MANUAL
Mobile Audio System
• CD Player
• PLL Synthesizer Stereo Radio
• Compact Disc Player
• Automatic Memory Storing
• Full Detachable Panel
• Preset Equalization
• Electronic Shockproof (ESP) Function
• Auxiliary Input Function
• Remote Control
www.pyleaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCD9MR and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLCD9MR

Summary of Contents for Pyle PLCD9MR

  • Page 1 PLCD9MR OWNER’S MANUAL Mobile Audio System • CD Player • PLL Synthesizer Stereo Radio • Compact Disc Player • Automatic Memory Storing • Full Detachable Panel • Preset Equalization • Electronic Shockproof (ESP) Function • Auxiliary Input Function • Remote Control...

  • Page 2: Table Of Contents

    CONTENTS Installation ...3 Take out screw before installation...3 DIN Front-Mount (Method A) ...3 Installing the unit...3 Removing the unit...4 DIN Rear-Mount (Method B) ...5 Using the detachable front panel ...6 Wiring Connection ...7 Operation ...8 Location of keys...8 Switching on/off the unit ...9 Faceplate release ...9 Sound adjustment...9 Loudness ...9...

  • Page 3: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

  • Page 4: Removing The Unit

    INSTALLATION Sleeve L Key Outer Trim Ring Front Panel R Key 6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective.

  • Page 5: Din Rear-Mount (Method B)

    INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

  • Page 6: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL REMOVING THE FRONT PANEL 1. Press the release button (RELEASE) on the front panel and pull off the front panel. Release Button Front Panel 2. Keep front panel into the case. Protective Case Front Panel INSTALLING THE FRONT PANEL To install the front panel, insert the panel into the housing and make sure the panel...

  • Page 7: Wiring Connection

    WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (ACC+) MEMORY YELLOW BACK-UP (B+) BLACK GROUND (B–) POWER BLUE ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT FUSE FUSE WHITE GREEN (GREY) Rch RED RCA CABLE Lch WHITE GREY FRONT Rch SPEAKER GREY/BLACK VIOLET...

  • Page 8: Operation

    OPERATION LOCATION OF KEYS...

  • Page 9: Switching On/Off The Unit

    OPERATION SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button (except button (7) and When system is on, press turn off the unit. FACEPLATE RELEASE Press button (7) to detach the removable faceplate. SOUND ADJUSTMENT Press SEL button (10) to select the desired adjustment mode.

  • Page 10: Radio Operation

    OPERATION RADIO OPERATION • SWITCHING TO RADIO MODE Press MODE button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band and frequency. • SELECTING THE FREQUENCY BAND At radio mode, press BND/LOU (ENT) button (13) shortly to select the desired band.

  • Page 11: Playing All Tracks In Random

    OPERATION • PLAYING ALL TRACKS IN RANDOM Press SHF button (23) to play all tracks on CD in random order. Press again to cancel the function. • EJECTING A DISC Press button (4) to stop CD playing and eject the disc from the disc slot (5).

  • Page 12: Remote Control Handset

    REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL BND (LOU) MODE TUNE/SKIP/CH TUNE/SKIP/CH 10. AS/PS (D-AUD) 11. M1 - M6 12. PAU 13. SCN 14. RPT 15. SHF 16. LOC (S-MOD) Power ON/OFF Button Display Button Sound Mode Select Button Volume Up Button Volume Down Button Band Select Button (When pressed shortly) Loudness Button (When pressed long)

  • Page 13: Disc Notes

    OPERATION DISC NOTE A. Notes on discs: 1. Attempting to use non-standard shape discs (e.g. square, star, heart) may damage the unit. Be sure to use round shape CD discs only for this unit. 2. Do not stick paper or tape etc., onto the label side or the recording side of any discs, as it may cause a malfunction.

  • Page 14: Specification

    SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB)

  • Page 15: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
