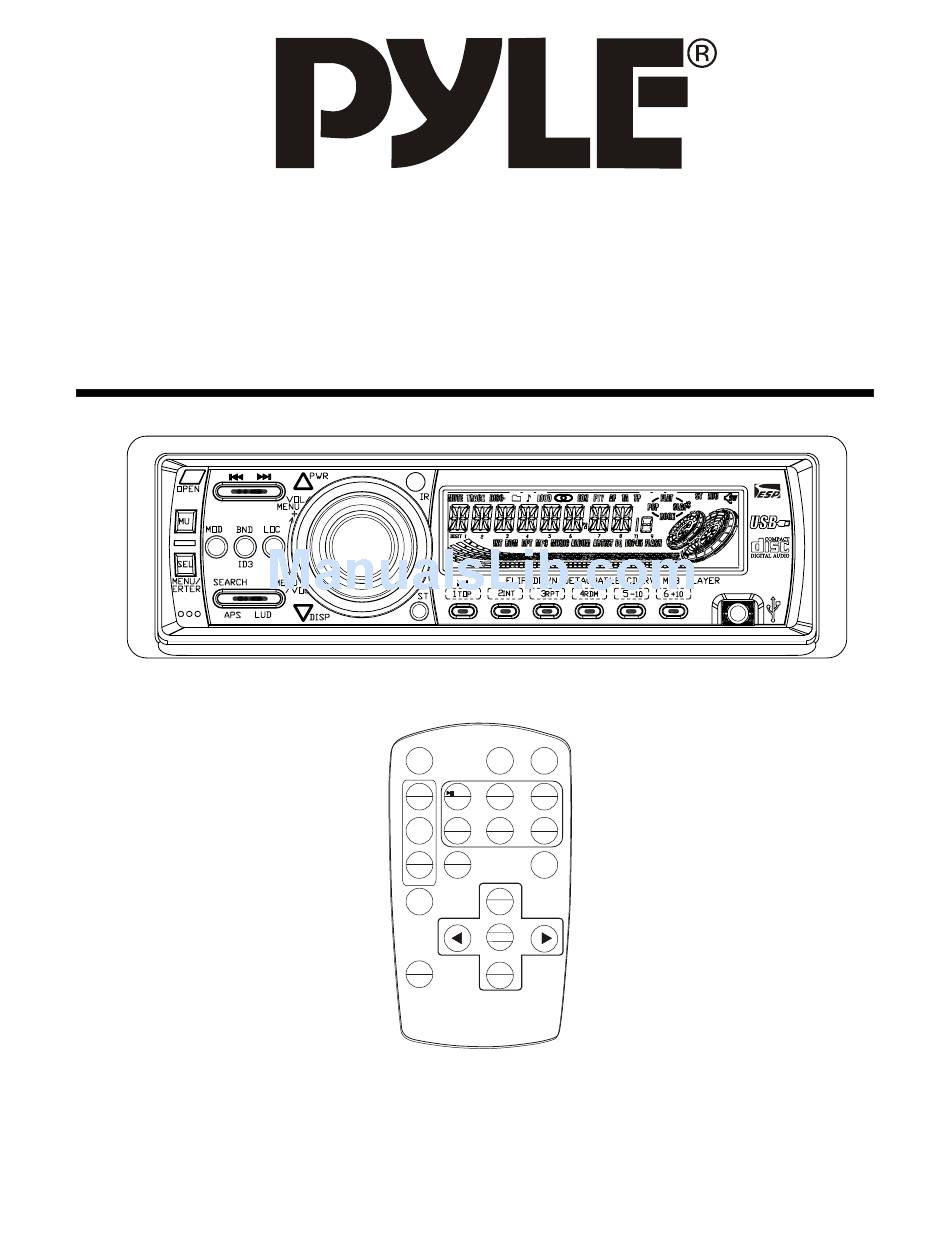

INSTRUCTION MANUAL
ANTI-THEFT FLIP DOWN DETACHABLE PANEL
AUTO-LOADING CD/MP3 COMPACT DISC PLAYER
AM/FM DIGITAL PLL TUN ING RADIO
WITH ESP FUNCTION &INFRARED REMOTE CONTROLLER
PLCD95UM
PWR
MOD
ST
/
INT
TOP
MO
1
2
RDM
-10
LOUD
5
4
LOC
ID3
DX
BAND
MENU
SCAN
VOL+
SEL
ENTER
MENU
APS
MENU
SEARCH
VOL-
REMOTE CONTROL
www.pyleaudio.com
MUTE
RPT
3
+10
6
DISP
Advertisement
Table of Contents
Related Manuals for Pyle PLCD95UM
Summary of Contents for Pyle PLCD95UM
- Page 1 PLCD95UM INSTRUCTION MANUAL ANTI-THEFT FLIP DOWN DETACHABLE PANEL AUTO-LOADING CD/MP3 COMPACT DISC PLAYER AM/FM DIGITAL PLL TUN ING RADIO WITH ESP FUNCTION &INFRARED REMOTE CONTROLLER www.pyleaudio.com MUTE LOUD DISP BAND MENU SCAN VOL+ ENTER MENU MENU SEARCH VOL- REMOTE CONTROL...
-
Page 2: Basic Operation
BASIC OPERATION AUX CABLE... -
Page 3: Open Button
BASIC OPERATION 1. OPEN BUTTON Press it to flip down the front panel then you can insert the CD disc into the CD compartment . 2.VOLUME(MENU)+/-KNOB Rotate the VOL+/-button to adjust volume level. IN MENU MODE: Rotate the vol+ /- button also can adjust the selected mode. IN MP3 MODE: Press search button to select track or file search, and then press ENTER button to enter track or file search and using the vol+/- button to move track or file search upward or downward. - Page 4 BASIC OPERATION 4.5.TRACK UP /DOWN BUTTONS A.During RADIO mode, press and hold auto search channel. Then press B.During CD mode, Press previoustrack.Press and hold or fast reverse. Releasing the button to stop fast playing C.IN MP3 MODE:Press the track under normal MP3 playback. 6.
- Page 5 BASIC OPERATION IN MP3 MODE: Press search button for several seconds ,track and file and character search becomes possible in the new mode. FOR EXAMPLE: TRACK SEARCH EXAMPLE HOW TO SEARCH FOR TRACK NUMBER 132,TITLED " WXY.MP3" A. Press APS/SEARCH button once to go in to search initial mode, it is now in TRACK search mode.
-
Page 6: Scan Button
BASIC OPERATION 19.BAND/ID3: During radio mode:Press it to select your desired radio band and the band which is selected will be displayed on LCD. During mp3 mode :Press search button to working Id3 as follow: (depend on the disc used for Mp3) File 20.POWER BUTTON Press it(more than 1 second) to turn off and short press to turn on the unit. -
Page 7: Electric Connection
FRONT WHITE/BLACK Lch SPK REAR GREEN/BLACK Lch SPK NOTE: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. REAR RCA OUTPUT CABLE(optional) WHITE GREY GREY/BLACK... -
Page 8: Installation
INSTALLATION HEX NUT SPRING WASHER PLAIN WASHER TAPPING SCREW KEY PLATE 1.WHILE INSTALLING THE FRONT PANEL, PLEASE MOUNT THE LEFT SIDE FIRST, AND MAKE THE DIRECTION HOLE ON THE FRONT PANEL AIM AT THE LEFT GUIDE ON THE UNIT 2.THAN PUSH THE RIGHT SIDE TO MOUNT THE RIGHT GUIDE 3.PUSH IT TO INSTALL THE FRONT FRONT PANEL COMPLETELY . - Page 9 INSTALLATION CAUTION: DO NOT INSTALL THE DETACHABLE PANEL BEFORE CONNECTING THE WIRE. 1. The unit is designed for negative terminal of the battery which is connected to the vehicle metal. Please confirm it before installation. 2. If the car interior is extremely hot, as after being parked in the sun, do not use the player until the car has been driven for a while to cool off the interior.
-
Page 10: Disc Play
NOTES DISC PLAY: CLEANING DISCS Before playing, clean the disc with a clean, lint-free. Flip the disc in the direction of the arrow. NOTE 1: Do not use so solvents such as benzine, thinners. Commercially available cleaners or anti static spray damage the unit. Insert a disc with the label surface down. -
Page 11: Specifications
SPECIFICATIONS GENERAL POWER REQUIREMENT...DC 12V CURRENT CONSUMPTION...15A POWER OUTPUT... 4 X 25W RADIO SECTION FREQUENCY RANGE USABLE SENSITIVITY...3uV I.F FREQUENCY...10.7MHz FREQUENCY RANGE FREQUENCY RANGE LINE-OUT [OPTION] OUTPUT...500mV @ FM 10% THD POWER CD PLAYER SYSTEM...COMPACT DISC AUDIO SYSTEM USABLE DISC...COMPACT DISC SIGNAL FORMAT...SAMPLING FREQUENCY 44.1KHz FREQUENCY CHARACTERISTICS...5-40Hz-5dB 10K-20KHz-5dB SIGNAL TO NOISE RADIO...70dB [1KHz] [IEC-A NET WORK]... -
Page 12: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection.If any of the problems persist after check list has been made, consult your nearest service dealer. SYMPTOM The car ignition switch is NO POWER not on The fuse is blown Presence of disc inside the player.
