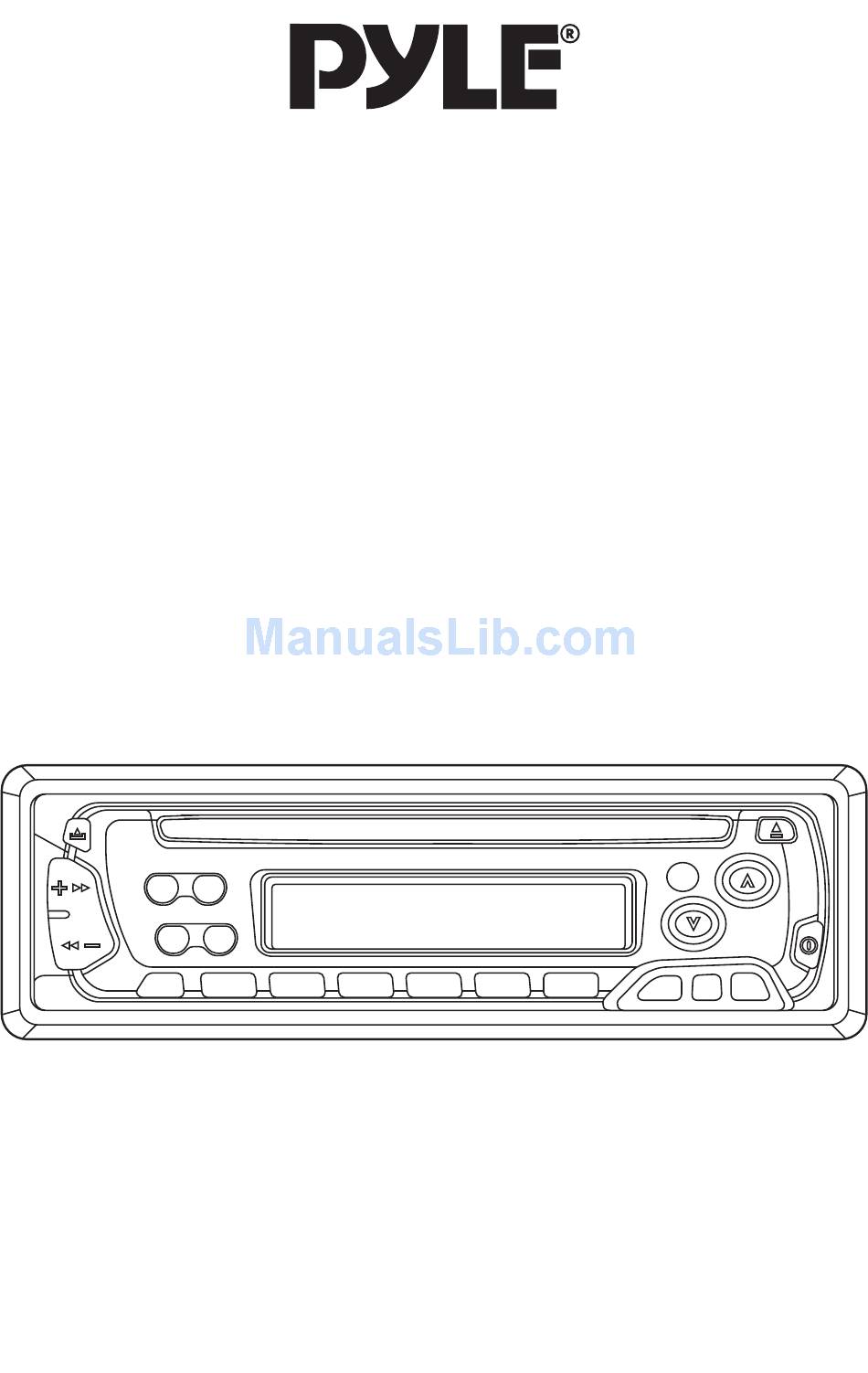

- Page 1 OWNER’S MANUAL PLCD32 PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL...
-
Page 2: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •... -
Page 3: Din Rear-Mount (Method B)
(Fig. 2) Removing the unit DIN REAR-MOUNT (Method B) Installation using the screw holes on the sides of the unit. 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. -
Page 4: How To Remove And Install The Front Panel
HOW TO REMOVE AND INSTALL THE FRONT PANEL 1. Press the release button and pull-off the front panel. Keep front panel into the case. 2. To install the front panel, insert the panel into the housing and make sure the panel is properly installed, otherwise, abnormalities occurs on the display or some keys will not function properly. -
Page 5: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP BLACK GROUND (B–) BLUE POWER ANTENNA 2-SPEAKERS SYSTEM 4-SPEAKERS SYSTEM WHITE FRONT Lch SPK. SPK. REAR Lch SPK. GREEN/BLACK Note: 1. For 2-speakers system, green, violet, white/black and grey/black wire leads are unconnected and isolated. -
Page 6: General Operation
OPERATION 7 17 GENERAL OPERATION • ON/OFF Switch on the unit by pressing any button [except (7)]. When system is on, press • FACEPLATE RELEASE Press RELEASE button (7) to detach the removable faceplate. button (9) to turn off the unit. 15 6 button (4) and RELEASE button... - Page 7 • SOUND ADJUSTMENT Press SEL button (10) to select the desired adjustment mode. The adjustment mode will change in the following order: Volume By pressing VOL button (11) or VOL desired sound quality. • LOUDNESS Press BND/LOU button (13) for several seconds to reinforce the bass output and display will show “LOUD”.
-
Page 8: Radio Operation
RADIO OPERATION • BAND SELECTION At tuner mode, press BND/LOU button (13) shortly to select the desired band. The reception band will change in the following order: • STATION SELECTION Press TUNE/SEEK/TRACK (17) shortly to activate automatic seek function. Press for several seconds until “MANUAL”... - Page 9 CD OPERATION • SELECT TRACKS Press TUNE/SEEK/TRACK (17) to move to the previous track or the following track. Track number shows on display. Hold TUNE/SEEK/TRACK (17) to fast reverse or fast forward. CD play starts from when you release the button. •...
-
Page 10: Specification
SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB) -
Page 11: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected. - Page 12 www.pyleaudio.com 88-C1040-28...
