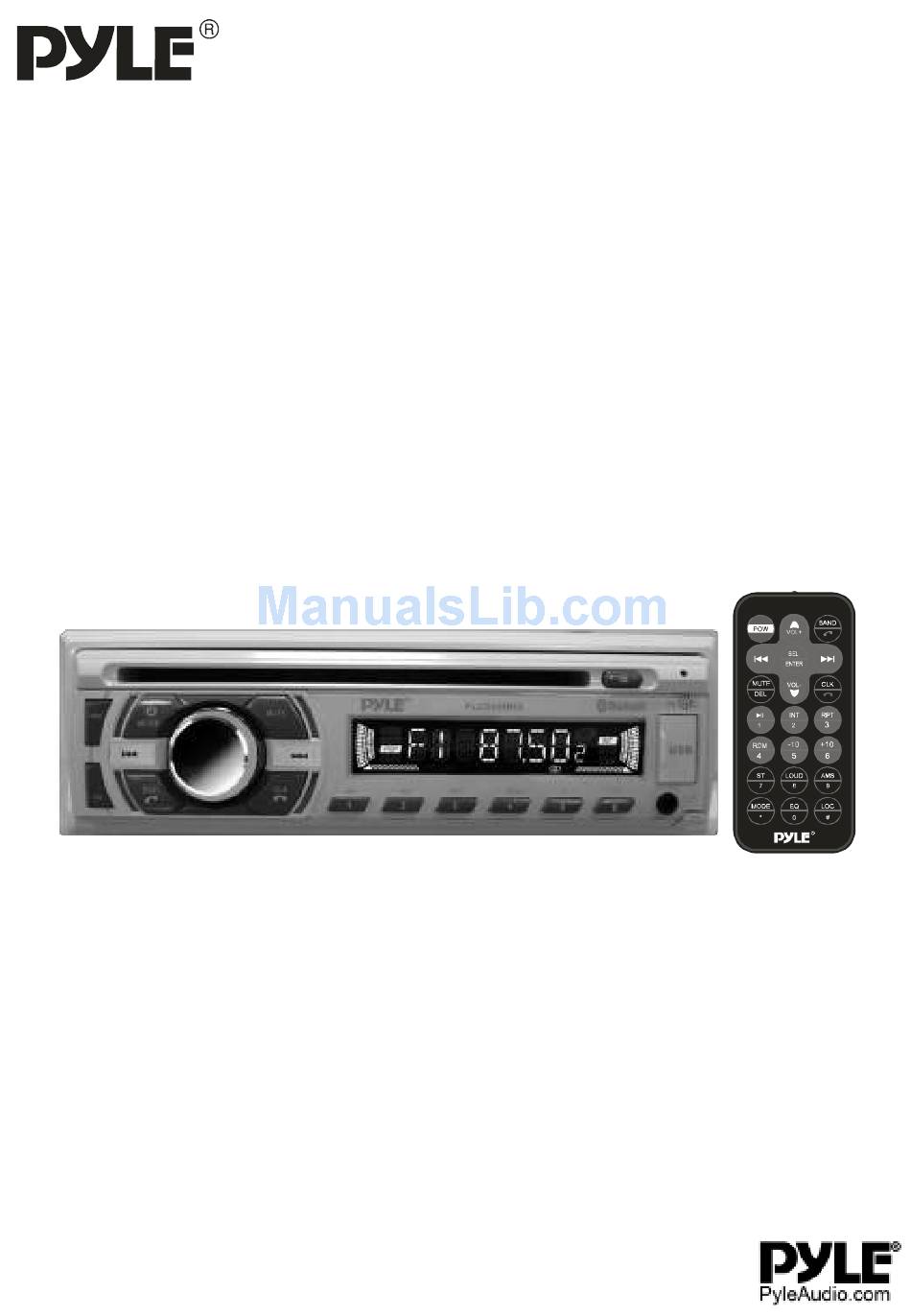

- Page 1 Car In-dash AM/FM MPX Receiver with CD, CD-R/RW, MP3 Playback & USB/SD/ AUX Inputs PLCD43BTM USER’S MANUAL - 0 -...
-
Page 2: Table Of Contents
COTENTS COTENTS ....................................1 PRECAUTIONS ..................................2 How to Handle Discs ..............................2 Precautions & Warnings ..............................2 Lithium Battery Cell Warnings ............................2 Drives and connections ..............................2 Others Warnings ................................2 INSTALLATION ..................................3 Installation Procedures ..............................3 Installation Opening ................................ -
Page 3: Precautions
PRECAUTIONS How to Handle Discs • Handle a disc by its edges. Do not touch the playing side. • Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having 53 mm an opening as shown the right figure. 182 mm Important: Remove the transport CD deck screws before use. To Install the Car Radio Be sure you test all connections first, and then follow these steps to install this unit. -
Page 5: Wiring Connections
INSTALLATION DASH BOARD DIAGRAM DIAGRAM HEX NUT DIAGRA HEX NUT DIAGRA SPRING WASHER DIAGRAM CONSOLE PLAIN WASHER DIAGRAM DIAGRAM MOUNTING SLEEVE TAPPING SCREW DIAGRAM DIAGRAM HEX BOLT DIAGRAM - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. -
Page 6: Control Panel Button Loactions
CONTROL PANEL BUTTON LOACTIONS PLCD43BTM (power)/MODE (source) button 2. SEL (select/menu) button and VOL (volume) knob 3. BAND(band) button, button 4. AMS (automatic store / preset station scan, automatic music search) button (pause/play), Preset station1 button 6. INT (intro), Preset station 2 button 7. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off • Press the power ( ) /MODE button on the front panel to turn on the unit, and long press it again to turn off the unit. • Press the power ( ) button on the remote control to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+ /VOL-... -
Page 8: Change The Source (Mode)
3. Press the button on the front panel or on the remote control to adjust the hour. 4. Press the CLK button and the minutes will flash. 5. Press the button on the front panel or on the remote control to adjust the minute. 6. -
Page 9: Radio Operation
RADIO OPERATION Switch Between USA area and Europe area Frequency In radio mode, press and hold the VOL/SEL button to enter switch state of the EU(USA) and EU (Europe) frequency, then rotate it to switch between US(USA) and EU(Europe) frequency. The system will change the frequency setting in about 3 seconds. -
Page 10: Disc / Usb / Sd Card Operation
DISC / USB / SD CARD OPERATION To insert DISC / USB / SD CARD • To play files on a disc, insert a disc with the label surface facing upward into the disc slot. Playback will begin automatically. • To play files on a USB device, open the USB port cover and insert the USB storage device into the USB port. -
Page 11: Select The Track Or File For Playback In Mp3 Format
Select the track or file for playback in MP3 format Press the AMS button repeatedly to select one of the following 3 search modes: NUM SCH (Searching by track or file serial number) DIR SCH (Searching by folder serial number) FILE SCH (Searching by track or file name) Searching by track or file serial number: a) In playback of files with MP3 format, press the AMS button once to access the track or file number... -
Page 12: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. 2. When the phone the car audio system, the “PYLE” name will be displayed. 3. Choose the “PYLE” from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing. -
Page 13: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. -
Page 14: Specifications
SPECIFICATIONS General Chassis Dimensions...............178(W) x 160(D) x 50(H) mm Power Supply Requirement ...................DC 12V Current Consumption ..................15A (max.) Maximum Power Output ...................4 x 75 Radio USA/ Europe Frequency Range........87.5 - 107.9 MHz (200KHz/Step) 87.5 - 108.0 MHz(50KHz/Step) Usable Sensitivity ....................30 dBu I.F. -
Page 15: Troubleshooting
TROUBLESHOOTING The following chart will help in solving most problems that may occur. If you still have questions after going through the checklist, please consult your local customer service representative. Before going through this check list, refer the wiring and operating procedures. Symptom Cause Solution...
