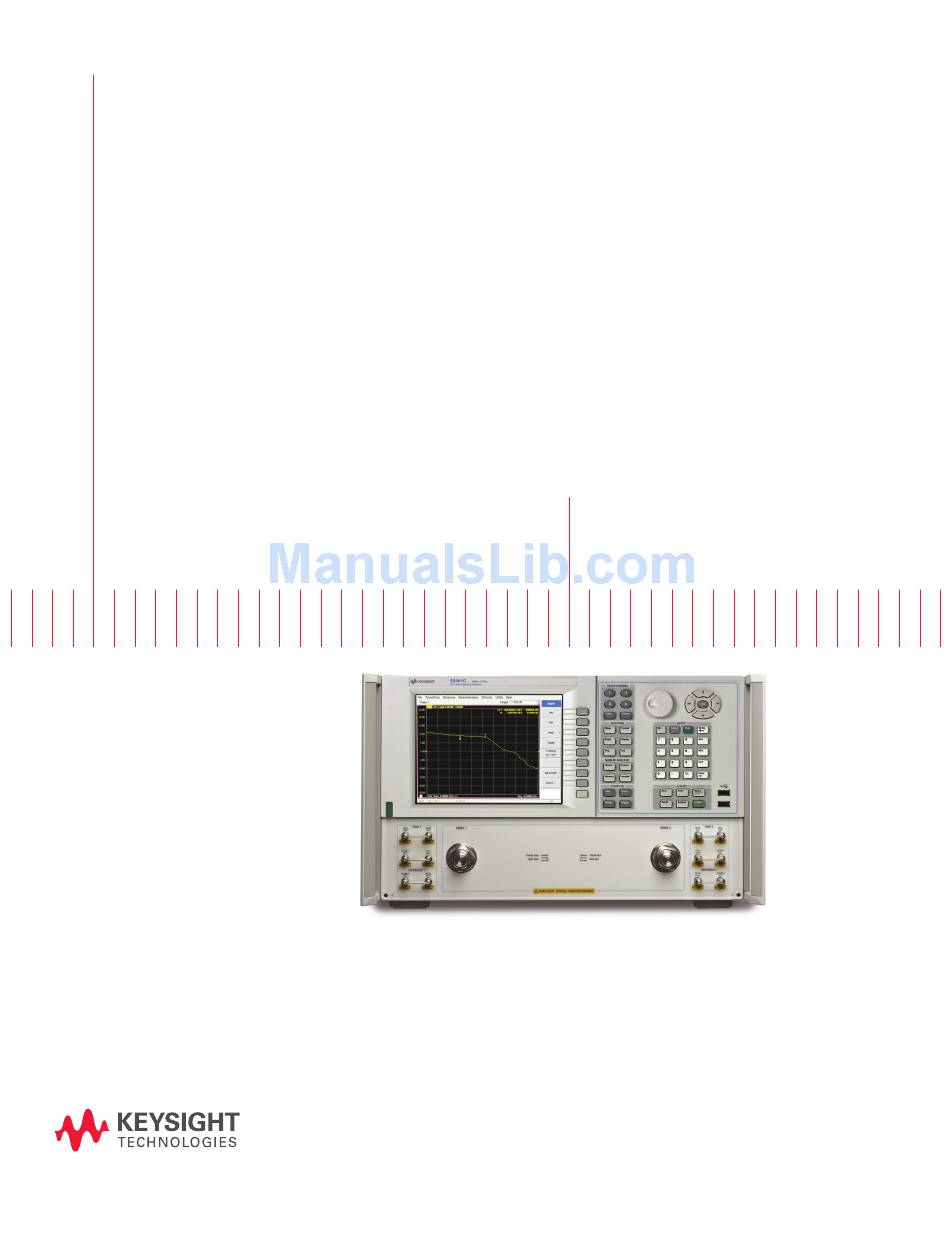

- Page 1 Keysight PNA/PNA-L Series Microwave Network Analyzers PNA E8362C 10 MHz to 20 GHz PNA E8363C 10 MHz to 40 GHz PNA E8364C 10 MHz to 50 GHz PNA E8361C 10 MHz to 67 GHz PNA-L N5230C 300 kHz to 6, 13.5, or 20 GHz...
-
Page 2: Network Analyzers
Introduction This guide describes standard configurations, for the PNA (E836xC) and PNA-L (N5230A) Series microwave network analyzers. This guide should be used with the Keysight Technologies, Inc. PNA family data sheets for a complete description of these analyzers. For applications, measurement accessories, and general accessories please see Keysight PNA Family Network Analyzers Configuration Guide, part number 5990-7745EN. - Page 3 Calibration software for self-maintainers Option 897 Perpetual license of built-in E8362C-897 E8363C-897 E8364C-897 E8361C-897 performance test software for Keysight exclusive calibration Option 898 Perpetual license of built-in E8362C-898 E8363C-898 E8364C-898 E8361C-898 performance test software for standards compliant calibration 1. Option H85 is ordered as a separate model, as indicated.
- Page 4 5989-7605EN for a basic block diagram). calibration techniques include scalar-mixer calibration and vector-mixer calibration (requires Option 081). Finally, the □ frequency-converter application supports all of Keysight’s High-power test set (Model E836xCH85) major signal source families. This configuration combines options that are often necessary for high power measurements (UNL , 014, 016, 080, 081).
- Page 5 For more detailed information regarding pulsed measurement model and frequency), Option 016 is recommended, which adds capabilities with the microwave PNA refer to the Keysight receiver attenuators. Finally, Option 010, which adds time-domain Web site www.keysight.com/find/pna and download the PNA...
- Page 6 PNA Series Network Analyzer (continued) Simplified test set block diagrams Standard power range Source Switch/splitter Reference Reference receiver receiver Measurement receivers Port 1 Port 2 Extended power range and bias-tees (Option UNL) Source Switch Reference Reference receiver receiver Source attenuator Source attenuator Bias-tee Bias-tee...
- Page 7 PNA Series Network Analyzer (continued) Simplified test set block diagrams – continued Configurable test set (Option 014) Source Switch Reference Reference receiver receiver Measurement receivers Port 1 Port 2 Configurable test set with extended power range and bias-tees (Option UNL and 014) Source Switch Reference...
- Page 8 PNA Series Network Analyzer (continued) Simplified test set block diagrams – continued Fully optioned, active device or mixer/converter test configuration (Options 014, UNL, 016, 080, 081) Source Switch/splitter/leveler Reference Reference receiver receiver Source attenuator Source attenuator Option 081 Measurement 10 dB steps 10 dB steps receivers Bias-tee...
- Page 9 PNA Series Network Analyzer (continued) Simplified test set block diagrams – continued High-power configuration (Model E836xCH85) Source Switch/splitter/leveler Reference Reference receiver receiver Source attenuator Source attenuator Option 081 Measurement 10 dB steps 10 dB steps receivers Receiver attenuator Cplr Rcvr B Cplr Cplr Rcvr R2...
- Page 10 PNA Series Network Analyzer (continued) Simplified test set block diagrams – continued Fully optioned, pulse-RF, antenna, or mm-wave configuration (Options 014, UNL, 016, 080, 081, H11) Aux RF out Aux LO out (2 to 20 GHz) (2 to 20 GHz) Rear YIG source Option 080...
- Page 11 Includes installation at a Keysight service center. Adds a step attenuator and a bias-tee between source and □ Receiver attenuators (Option 016) each test port. Includes installation at a Keysight service center. □ Includes installation at a Keysight service center. Pulsed-RF measurement capability □...
- Page 12 N5230C-1A7 Option A6J ANSI Z540 compliant calibration N5230C-A6J Calibration software for self-maintainers Option 897 2 Perpetual license for built-in performance test software for Keysight inclusive N5230C-897 calibration Option 898 2 Perpetual license for built-in performance test software for N5230C-898 standards compliant calibration 1.
-
Page 13: Pna-L Series Test Set And Power Configuration Options
PNA-L Series test set and power configuration options The PNA-L is an integrated vector network analyzer equipped with a built-in S-parameter test set, one or two synthesized sources used for device stimulus, a hard disk drive, USB interfaces, and an 8.4” LCD color touch screen display. 40 and 50 GHz models have 2.4 mm ruggedized male 50-ohm connectors, while all other models have 3.5 mm ruggedized male 50-ohm connectors. - Page 14 PNA-L Series Application Options Measurement applications Accessories □ □ Time-domain capability (Option 010) Rack mount kit without handles For viewing reflection and transmission responses in time or (Option 1CM) distance domain. Adds a rack mount (5063-9217) and rail kit (E3663AC) for use without handles.
- Page 15 Option x25 N5230CU-550 N-port capabilities Option xx5 or 246 N5230CU-551 or N5231CU-551 Calibration software Perpetual license for built-in performance test software for Keysight inclusive calibra- N5230CU-897 tion Perpetual license for built-in performance test software for standard compliant N5230CU-898 calibration User interface...
- Page 16 16 | Keysight | PNA/PNA-L Series Microwave Network Analyzers- Configuration Guide Evolving Since 1939 For more information on Keysight Technologies’ products, applications or Our unique combination of hardware, software, services, and people can help you services, please contact your local Keysight reach your next breakthrough.
