Occupancy Sensor OCS 100W • Setup Guide (Continued)
OCS 100W Parts
32'
23'
Pull
23'
32'
Cover

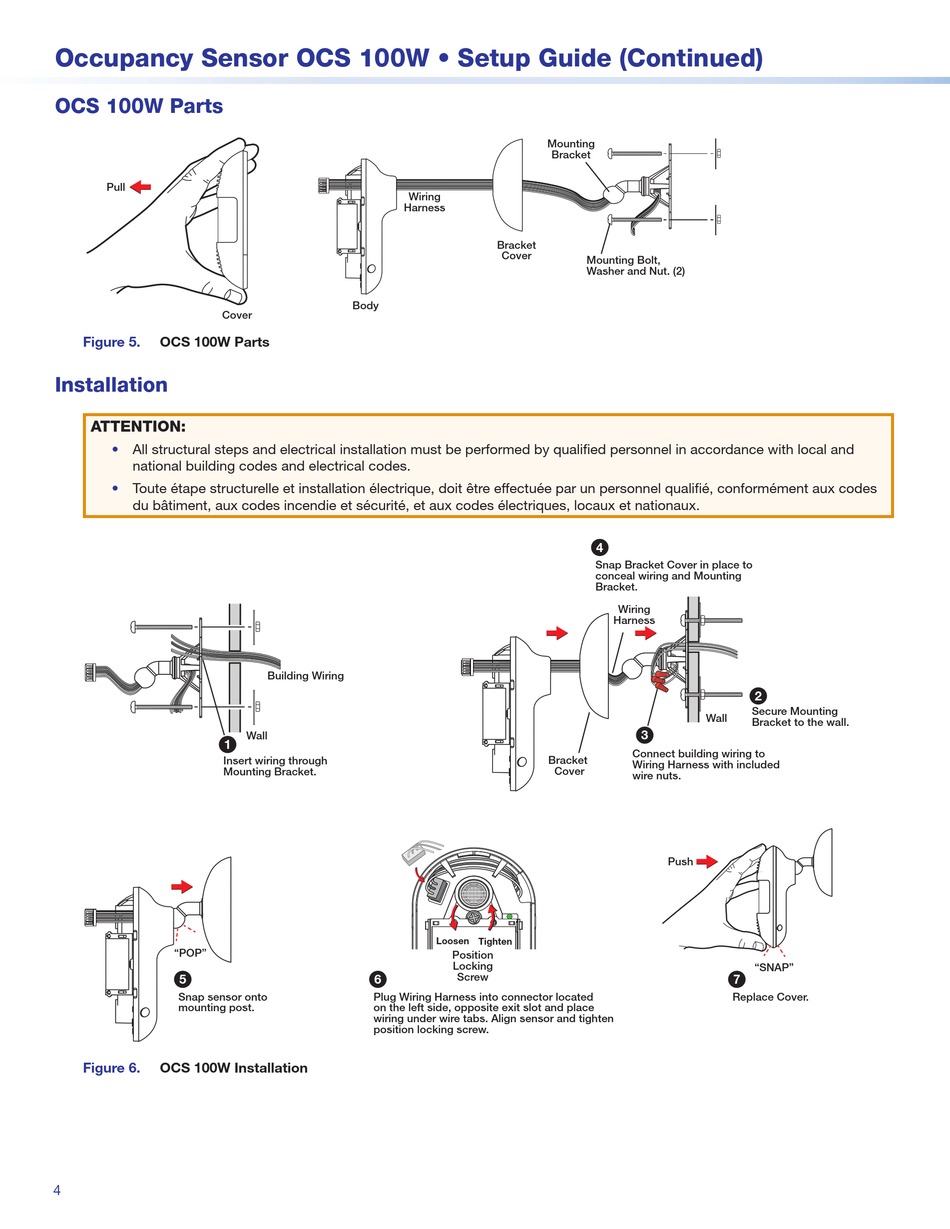

Figure 5. OCS 100W Parts

Installation

Pull
ATTENTION:
• All structural steps and electrical installation must be performed by qualified personnel in accordance with local and
national building codes and electrical codes.
• Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualifié, conformément aux codes
du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
1
Insert wiring through
Mounting Bracket.
"POP"
5
Snap sensor onto
mounting post.
Figure 6. OCS 100W Installation
4
40'
20'
Wiring
Harness
Sensory Coverage
US Minor Motion
US Major Motion
Body
Body
Cover
Building Wiring
Wall
6
Plug Wiring Harness into connector located
on the left side, opposite exit slot and place
wiring under wire tabs. Align sensor and tighten
position locking screw.
Mounting
Bracket
40' - 0" Major Coverage
Bracket
Cover
Mounting Bolt,
IR Minor Motion
Washer and Nut. (2)
IR Major Motion
Wiring
Harness
Bracket
Cover
4
Snap Bracket Cover in place to
conceal wiring and Mounting
Bracket.
Harness
Bracket
Cover
Loosen Tighten
Position
Locking
Screw
20' - 0" Minor Motion Coverage
Mounting
Bracket
Mounting Bolt,
Washer and nut. (2)
Wiring
2
Secure Mounting
Wall
Bracket to the wall.
3
Connect building wiring to
Wiring Harness with included
wire nuts.
Push
"SNAP"
7
Replace Cover.
10' - 0"
Mounting
Height
