2.3 Printer

X-431 PAD is equipped with a built-in mini printer, which enables you to easily
print the real time test results, such as ECU No., DTCs, datastream, version
information, etc. while testing vehicle.
Loading thermal paper
This mini printer applies thermal paper roll with size of Φ30×57mm. Follow the
steps described as below to load it.

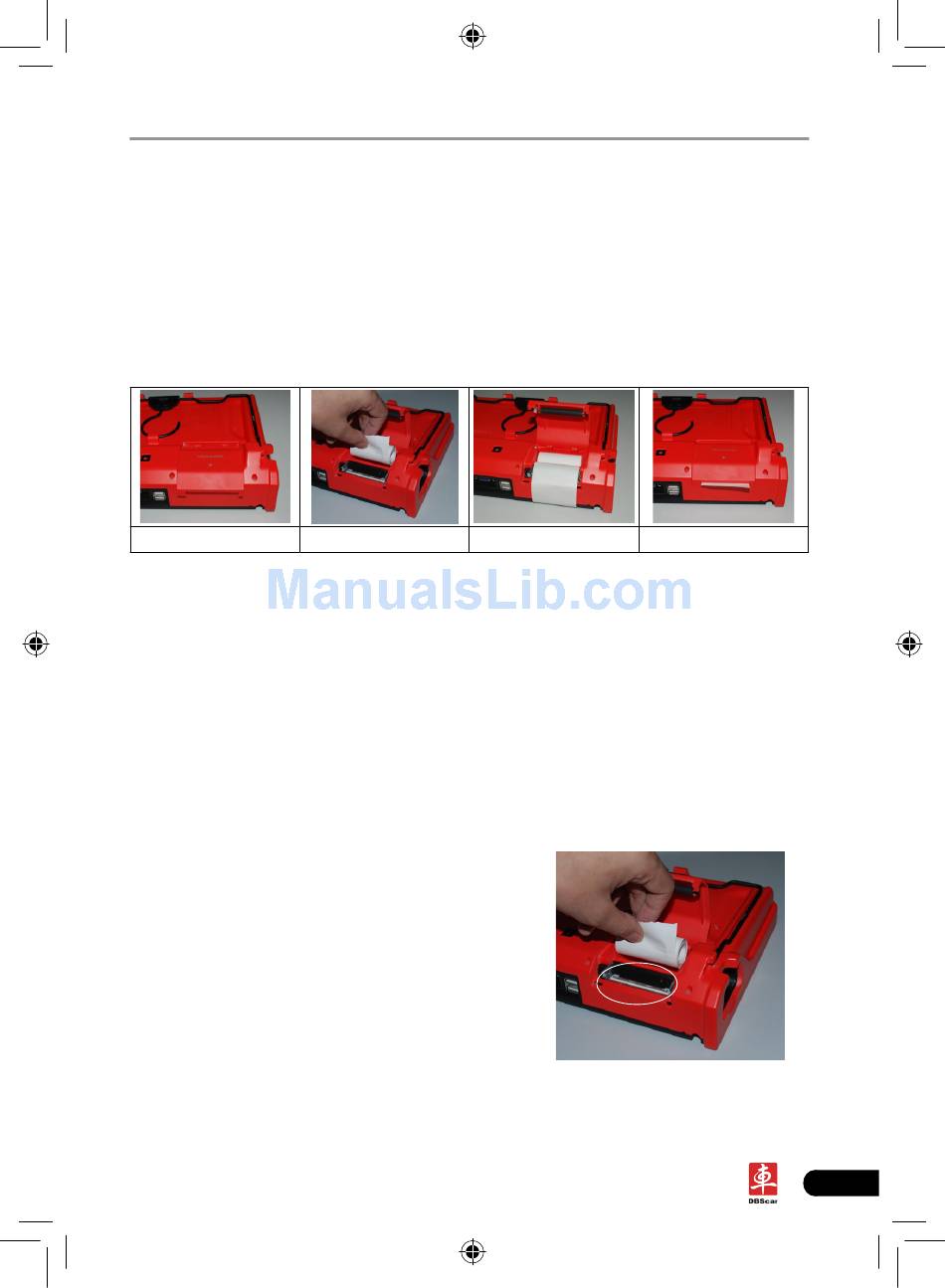

Fig. 2-2a
1. Push the printer cover located on the rear of X-431 PAD out and open it as
indicated on Fig. 2-2a.
2. Place the unpacked thermal paper into the compartment with its starting end
approaching to the paper outlet (refer to Fig. 2-2b). Reversing paper direction
will cause that no results will be printed out.
3. Pull out some printing paper and introduce it along the slot until it comes out
of the paper outlet shown as Fig. 2-2c. Otherwise, paper can not be fed.
4. Close the paper cover and press it down until you hear a click. See Fig. 2-2d.
Notes:
1. If the printer keeps printing for a long time,
the thermal matrixes (shown as right figure)
will overheat. To avoid a risk of burning
injury, please do NOT touch the matrixes.
2. The printer applies the thermal paper, which
should be prevented from being heated
before printing, otherwise, the paper would
be no longer effective or printing results
disappear.
Fig. 2-2b Fig. 2-2c
Fig. 2-2 Installing paper
X-431 PAD User's Manual
Fig. 2-2d
