Mounting instruction and
operating manual
Radiator Thermostat UK
p. 1
HmIP-eTRV-2-UK
Package contents
Quantity Description
1
Homematic IP Radiator Thermostat UK
3
Adapters Danfoss (RA, RAV and RAVL)
1
Danfoss RAV spigot extension
1
Support ring
1
Nut M4
1
Cylinder head screw M4 x 12 mm
2
1.5 V LR6/mignon/AA batteries
1
Operating manual
Documentation © 2017 eQ-3 AG, Germany
All rights reserved. Translation of the original version in German.
This manual may not be reproduced in any format, either in
whole or in part, nor may it be duplicated or edited by electronic,
mechanical or chemical means, without the written consent of
the publisher.
Typographical and printing errors cannot be excluded. However,
the information contained in this manual is reviewed on a regular
basis and any necessary corrections will be implemented in the
next edition. We accept no liability for technical or typographical
errors or the consequences thereof.
All trademarks and industrial property rights are acknowledged.
Printed in Hong Kong
Changes may be made without prior notice as a result of techni-
cal advances.
151305
Version 1.0 (02/2017)

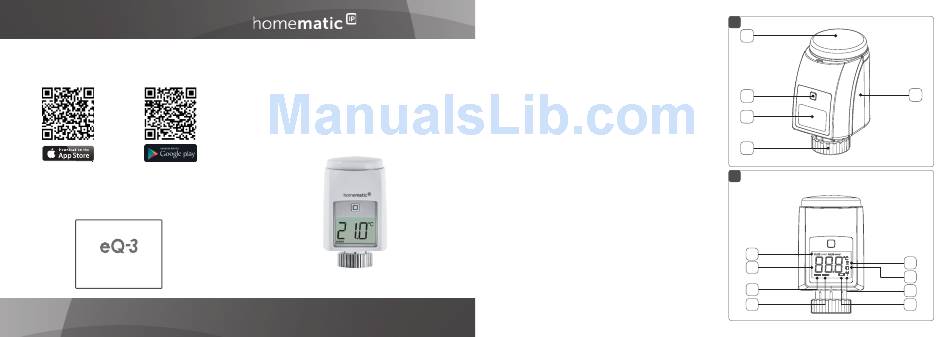

1
A
B
C
D
E
2
F
J
G
K
H
L
I
M
Advertisement
Table of Contents
Related Manuals for HomeMatic HmIP-eTRV-2-UK
Summary of Contents for HomeMatic HmIP-eTRV-2-UK
- Page 1 Package contents Quantity Description Homematic IP Radiator Thermostat UK Mounting instruction and Free download of the Homematic IP app! Adapters Danfoss (RA, RAV and RAVL) operating manual Danfoss RAV spigot extension Support ring Radiator Thermostat UK p. 1 Nut M4 Cylinder head screw M4 x 12 mm 1.5 V LR6/mignon/AA batteries...
-
Page 3: Table Of Contents
Table of contents Information about this manual........2 Hazard information ............2 Function and device overview ........4 General system information ........6 Start-up ................6 Teaching-in ................6 Mounting ................8 5.2.1 Mounting the radiator thermostat....... 9 5.2.2 Adapter for Danfoss ..........11 5.2.3 Support ring ............15 Adaption run ................15 Operation ............... -
Page 4: Information About This Manual
Information about this manual Please read this manual carefully before beginning op- eration with your Homematic IP components. Keep the manual so you can refer to it at a later date if you need If you hand over the device to other persons for use, please hand over this manual as well. - Page 5 Hazard information The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and me- chanical loads. The device is not a toy; do not allow children to play with it.
-
Page 6: Function And Device Overview

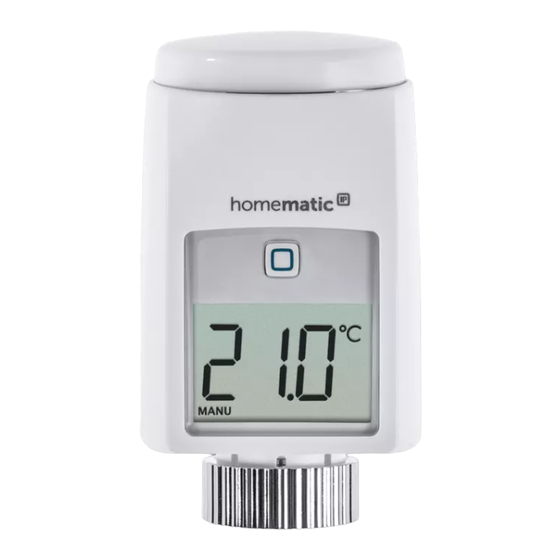

6 heating phases per day. In the climate control solution, the radiator thermostat can simply be connected to the Homematic IP Access Point. In connection with the Homematic IP Window / Door Contact, the temperature is automatically reduced during ventilation. - Page 7 Function and device overview Device overview (see figure 1): Control wheel/boost button Battery compartment cover System button (teach-in button and LED) Display Metal nut Display overview (see figure 2): Valve information Setpoint temperature Manual operation Boost mode Operating lock Open window symbol Radio transmission Battery symbol...
-
Page 8: General System Information
General system information General system information This device is part of the Homematic IP smart home system and works with the Homematic IP radio pro- tocol. All devices of the system can be configured comfortably and individually with the Homematic IP smartphone app. - Page 9 Home- matic IP Access Point first. To teach-in the radiator thermostat, please proceed as follows: • Open the Homematic IP app on your smartphone. Select the menu item “Teach-in device”. • •...
-
Page 10: Mounting
Mounting Please read this entire section before starting to mount the device. The Homematic IP Radiator Thermostat is easy to in- stall, and can be done without draining heating water or intervening in the heating system. No special tools are required, nor does the heating have to be switched off. -
Page 11: Mounting The Radiator Thermostat
Start-up • Watts • Wingenroth (Wiroflex) • R.B.M • Tiemme • Jaga • Siemens • Idmar By means of the adapters in the delivery, the device can also be installed on radiator valves of type Danfoss RA, Danfoss RAV and Danfoss RAVL (see „5.2.2 Adapter for Danfoss“... - Page 12 (P). After removing the old thermostat dial you can mount the Homematic IP Radiator Thermostat with the metal nut (E) to the radiator valve (see figure 6). If required, you can use one of the supplied adapters for Danfoss valves (see „5.2.2 Adapter for Danfoss“...
-
Page 13: Adapter For Danfoss
Start-up 5.2.2 Adapter for Danfoss One of the provided adapters is needed to attach to Danfoss valves. The assignment of the suitable adapter to the relevant valve can be found in the following il- lustrations. Please ensure that you do not trap your fingers between the two halves of the adapter! The RA and RAV adapters have been manufactured with pre-tension in order to provide a better seat. - Page 14 Start-up Danfoss RA The Danfoss valve bodies have elongated notches (1) around their circumference, which also ensure that the adapter is properly seated when it snaps on. During installation, please ensure that the pins inside the adapter (2) are lined up with the notches (1) on the valve.
- Page 15 Start-up Danfoss RAV The Danfoss valve bodies have elongated notches (1) around their circumference, which also ensure that the adapter is properly seated when it snaps on. During installation, please ensure that the pins inside the adapter (2) are lined up with the notches (1) on the valve.
- Page 16 Start-up Danfoss RAVL The Danfoss valve bodies have elongated notches (1) around their circumference, which also ensure that the adapter is properly seated when it snaps on. During installation, please ensure that the pins inside the adapter (2) are lined up with the notches (1) on the valve.
-
Page 17: Support Ring
Start-up 5.2.3 Support ring The valves from different manufacturers may have tol- erance fluctuations that make the radiator thermostat more loosely seated on the valve. In this case, the pro- vided support ring (R) should be placed into the flange before mounting the radiator thermostat (see figure 5). -
Page 18: Operation
Operation Operation After teaching-in and mounting have been performed, simple operations are available directly on the device. If the radiator thermostat is in standby mode, please press the control wheel (A) once before operation to activate the device. • Temperature: Turn the control wheel (A) to the right or to the left to manually change the tem- perature of the radiator. -
Page 19: Replacing Batteries
Replacing batteries the valve. There will be a pleasant room temper- ature right away because of the radiated heat. The operating lock of the radiator thermostat can be activated and deactivated via the Home- matic IP app. Tap on the menu symbol in the top left of the screen of your app and select the menu item “Device overview”. - Page 20 Replacing batteries • Please pay attention to the flashing signals of the device LED while inserting the batteries (see „8.4 Error codes and flashing sequences“ on page 21). Once the batteries have been inserted, the radiator ther- mostat will perform a self-test (approx. 2 seconds). Af- terwards, initialisation is carried out.
-
Page 21: Troubleshooting
Troubleshooting Troubleshooting Weak batteries Provided that the voltage value permits it, the radiator thermostat will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeat- edly, once the batteries have been allowed a brief re- covery period. -
Page 22: Duty Cycle
Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation. During normal operation, the duty cycle is not usually reached. -
Page 23: Error Codes And Flashing Sequences
17). Antenna Connection to Please check the symbol ( ) Homematic IP connection to the flashing Access Point Homematic IP Ac- is lost cess Point. Lock symbol Operating Deactivate the lock activated operating lock via the app. Short orange... - Page 24 Troubleshooting 1x long red Duty cycle Please try again lighting exceeded or (see „8.2 Command transmission not confirmed“ failed on page 19 or „8.3 Duty cycle“ on page 20). Short orange Teach-in Please enter the flashing mode active last four numbers (every 10 of the device serial seconds)
-
Page 25: Restore Factory Settings
Restore factory settings Restore factory settings The factory settings of the device can be re- stored. If you do this, you will lose all your set- tings. To restore the factory settings of the radiator thermostat, please proceed as follows: Push the battery compartment cover (B) to the •... -
Page 26: Maintenance And Cleaning
Maintenance and cleaning Maintenance and cleaning The device does not require you to carry out any maintenance other than replacing the battery when necessary. Enlist the help of an expert to carry out any maintenance or repairs. Clean the device using a soft, lint-free cloth that is clean and dry. -
Page 27: General Information About Radio Operation
Hereby, eQ-3 AG, Maiburger Str. 29, 26789 Leer/Germany declares that the radio equipment type Homematic IP HmIP-eTRV-2-UK is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.eq-3.com... -
Page 28: Technical Specifications
Technical specifications Technical specifications Device short description: HmIP-eTRV-2-UK Supply voltage: 2x 1.5 V LR6/mignon/AA Current consumption: 120 mA max. Battery life: 2 years (typ.) Degree of protection: IP20 Degree of pollution: Ambient temperature: 0 to 50 °C Dimensions (W x H x D):... - Page 29 Technical specifications Instructions for disposal Do not dispose of the device with regular domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive. Information about conformity The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.
