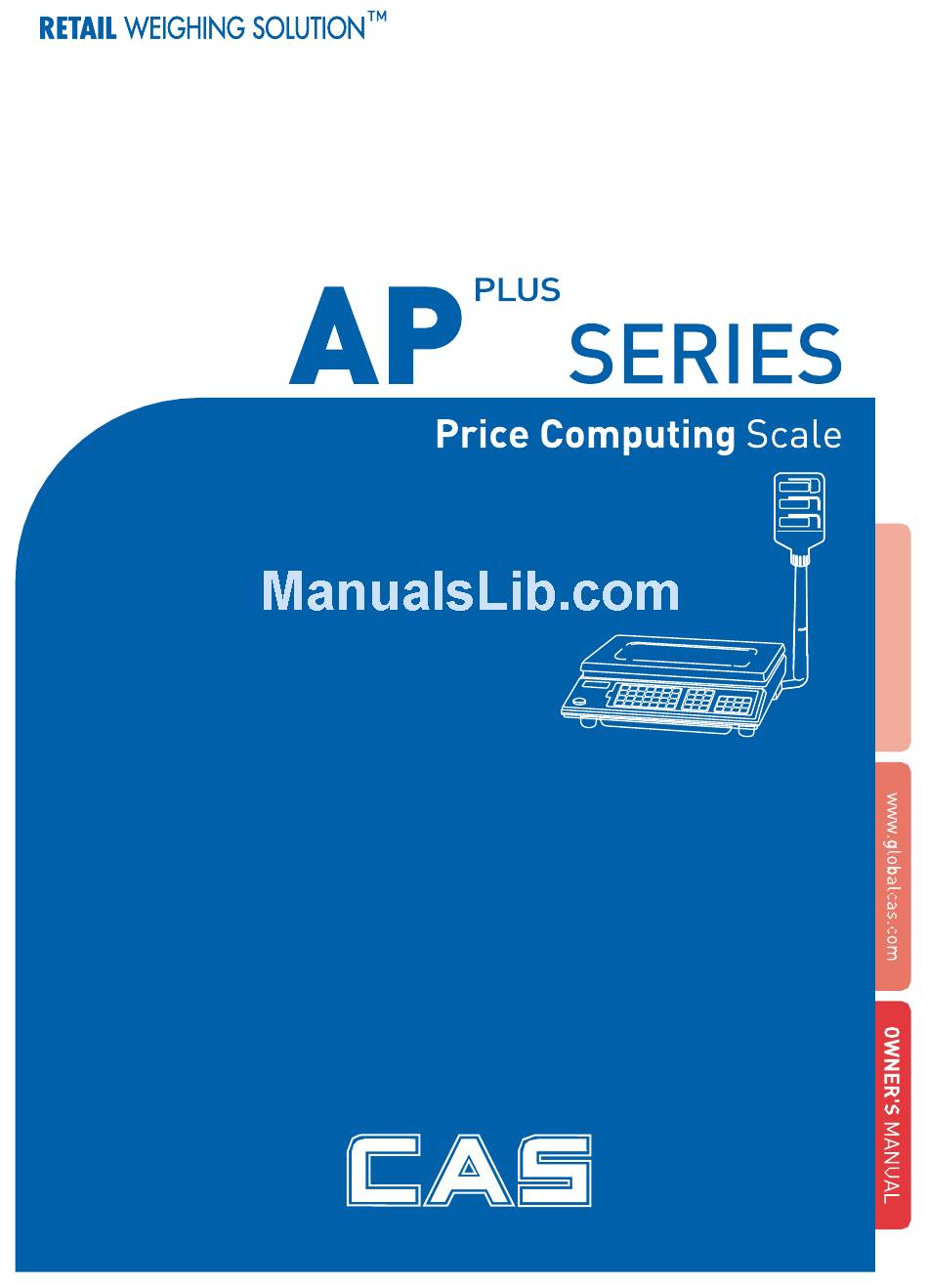

Ap plus series price computing scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP Plus-MX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS AP Plus-MX

Summary of Contents for CAS AP Plus-MX

  • Page 2: Table Of Contents

    CONTENTS ..............4 PRECAUTIONS PREFACE .................6 ..............6 INSTALLATION NAMES AND FUNCTIONS ..........7 .................12 OPERATION 1. Simple weighing..............12 2. Weighing with Tare............12 3. Adding up transactions for weighed commodities ..13 4. Adding up transactions for non-weighed .....15 (Fixed Price) commodities 5. Canceling daily total transaction ........16 .

  • Page 3: Precautions

    PRECAUTIONS...
  • Page 4 PRECAUTIONS...

  • Page 5: Preface

    PREFACE Thank you for the purchasing of our CAS AP PLUS Series. This series have been designed with CAS reliability, under rigid quality control and with outstanding performances. Your speciality departments can enjoy with these high quality reliable CAS products.

  • Page 6: Names And Functions

    NAMES AND FUNCTIONS OVERALL VIEW DISPLAY & KEYBOARD 1. AP PLUS-EX Type...
  • Page 7 2. AP PLUS-MX Type 3. AP PLUS-M Type 4-1. AP PLUS -EC Type(Symbol Type) 4-2. AP PLUS -EC Type(Standard Type)
  • Page 8 5-1. AP PLUS -Euro (AP PLUS -EX Type) 5-2. AP PLUS -Euro (AP PLUS -EC Type) 5-3. AP PLUS -Euro (AP PLUS -M Type)
  • Page 9 ■ KEY FUNCTIONS FUNCTIONS Used to enter all the numeric data. Used to enter a double zeros. Used to clear all the numerics on the unit price display. Used to clear sum total price. Used to clear all the daily total prices. Used to move to next byte when inputting ASCII code.
  • Page 10 NAMES AND FUNCTIONS FUNCTIONS Turns on and off the displays. Used to add up a fixed price item.(non weighed) Used to add up a weighed item. Used to calculate a change. Used to cancel a prior accumulation. Direct PLU(Price Look Up) keys. Used to check the all displays.

  • Page 11: Operation

    OPERATIONS 1. Simple Weighing Mode ① Enter an unit price. ② Place the commodity on ③ Remove the commodity the platter. from the platter.Press "C" key to clear unit price input. NOTE : Automatic unit price clearing function may not be applied to ▶...

  • Page 12: Adding Up Transactions For Weighed Commodities

    ④ Place the commodity on ⑤ Remove the commodity from the platter.Press "C" the platter. key to clear previous transaction. NOTE: To remove TARE function press "TARE" key again after removing the ▶ container from the platter. Automatic tare clearing function may not be applied to all of AP PLUS series.
  • Page 13 ④ Remove the commodity ⑤ Enter another unit price. ⑥ Place the commodity on from the platter. the platter. ⑦ Press ADD key. ⑧ Remove the commodity ⑨ Press TTP CALL key to call from the platter. up total price. ■...

  • Page 14: Adding Up Transactions For Non-Weighed

    4. Adding up transactions for non-weighed(Fixed price)commodity This is a function to add up several transactions for non-weighed commodity, using “FAD(Fixed price Added)” key. ■ User should keep the platter empty when he/she tries this function in the beginning. ① Enter a price. ②...

  • Page 15: Canceling Daily Total Transaction

    5. Canceling daily total transactions ■ When user makes more than two sales transactions he/she can cancel previous mistake transaction(s) of them by doing “Cancel” function. ① Press numeric keys to input ② Press FAD key and a unit price. appropriate numeric keys to Ex) Item’s unit price=2.00 make next another sales...

  • Page 16: Calling Up & Clearing Up Previous Total Price

    ■ User can call up previous total price simply by pressing “TTP CALL” key. ■ User can clear the sum of transactions simply by pressing “C” key. ■ This function is effective on either that total number of transactions is up to 1,000 or total amount of money is up to 99,999.99.

  • Page 17: Making Payment

    7. Making Payment This is the function to make payment or change on the scale. The payment function is effective only if the amount customer pays exceeds the amount of total price. ① Press TTP CALL key. ② Press PAY key, assuming ③...

  • Page 18: Discount On Total Sales Amount

    8. Discount on total sales amount ① Press TTP CALL key just to ② Press CAN key. check total amount. Ex)Total amount=115.00, Total number of transaction=5. ③ Press appropriate numeric ④ Press CAN key. keys to input the amount of discount.

  • Page 19: Saving Plus' (Price Look-Up) Unit Price

    ■ Maximum PLUs Memory Capacity Product Model Direct PLUs Indirect PLUs AP PLUS-EX Up to 28 PLUs Up to 200 PLUs AP PLUS-MX Up to 5 PLUs Up to 200 PLUs AP PLUS-M Up to 7 PLUs Up to 200 PLUs AP PLUS-EC...
  • Page 20 B) Indirect PLUs ① Enter an unit price. ② Press MW key. ③ Enter a desired number(s) to store a PLU(s) at a specific address(es). You can select any number within the indirect PLU memory capacity. ④ Press MW key to save it. The display automatically goes to save valid data set on PLU mode.
  • Page 21 C) Saving valid data set on PLU This section explains how to save valid date in PLU. You can input the valid date. Range is 0 ~ 999. ■ Valid date setting table Valid date Packed on date Sell by date Remarks 07.12.11 (Today) (No print)
  • Page 22 E) Saving PLU name ● C key is to input, save a character, and move to next character (or byte). ● TARE key is to move next programming menu. ① Input appropriate ASCII ② Press TARE key to exit to codes to save the PLU name.

  • Page 23: Calling Up A Plu

    10. Calling up a PLU A) Direct PLUs ① Press an appropriate direct ② Place commodity on ③ Remove the commodity PLU key you wish to have. the platter. from the platter, then press "C" key to go back to the weighing mode.
  • Page 24 *When user is in use of "Unit Price Clear" function it's automatically cleared. ④ Remove the commodity ⑤ Press "C" key to go back from the platter. to the weighing mode. ▶ NOTE: Please do not consider of decimal po int on the unit price display at ①...

  • Page 25: Displaying Total Sales

    11. Displaying Daily total sales (EX) This function shows the daily total sales for in dividual PLU or daily total sales record. ■ The total sales amount and the number of transaction are displayed up to 99,999,999.99 and 9,999 respectively. A) Total sales for direct PLU ①...
  • Page 26 B) Daily total sales ① Press "Mode" key. ② Press "TTP CALL" key. The ③ Press "Mode" key to exit. Be display says that the daily total careful of pressing "C" key to amount of sales is clear current transaction 11,455,876.00, and total permanently.

  • Page 27: Saving Euro Rate

    OPTION 1. Saving Euro rate (Option) This is function to input Euro rate on your scale. Before start user should check the value in the "TOTAL PRICE" display is "0.00". ① Press the MW key. ② Press the EURO key. If you ③...

  • Page 28: Switching Currency

    2. Switching Currency ① Press the EURO key in the ② You will go to euro mode. ③ You will see Euro currency normal mode. after 2 seconds. Please make sure Euro lamp is on. ④ Press the EURO key, one more time.

  • Page 29: Selecting The Printer

    3. Selecting the printer. This section explains how to select the printer option when you’d like to use the printer connected to AP PLUS. ■ Serial printer table Options Description Remarks No printer in use DEP-50 printer interface DEP-50 DLP-50 printer interface DLP-50 To get into “User’s Set -up Mode”press ON/OFF key pressing and holding ZERO key.

  • Page 30: Setting-Up Printing Ticket (Receipt) Format

    ① Pressing and holding C key, ② Input appropriate ASCII press ON/OFF key under the codes (page on 45) you wish to scale power off. have. “1” on the “Unit Price” display Ex) CAS. represents that you are ready to input the first character.
  • Page 31 ③ To save it and go next ④ Using ASCII code you can header line press TARE key. input appropriate data on Header 2. Ex) 820-1111, telephone #. ⑤ To save it and go next ⑥ Using ASCII code you can header line press TARE key.
  • Page 32 b. Receipt currency (unit) setting ① Initial currency (unit) display ② Using ASCII code you can status. input appropriate character or currency symbols on unit. Ex) $ c. Receipt DATE setting ① To save it and go to “Initial ② Just input appropriate ③...
  • Page 33 ④ Just input appropriate month ⑤ Press C key to go to next ⑥ Just input appropriate date you wish to have, not using “Date” setting. you wish to have, not using ASCII code. ASCII code. Ex) 12 (December) Ex) 12th day ⑦...
  • Page 34 “Date format” setting. below table. Number Date format Year / Month / Date Date / Month / Year Ex) Press “1” to use DD/MM/YY print format ● If you press C or T(TARE) key you cas automatically go to nomal weighing mode.
  • Page 35 f. Samples of Print format ■ DLP Printer ① When using weigh item or fixed item sale mode. APP type – Barcode indicates “Total price” APW type – Barcode indicates “Weight” ② When using multi item sale mode. APCP type – Barcode indicates “Total price” APCW type –...

  • Page 36: Ascii Code

    ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ < ￥ > ■ Alphabet A ~ F keys for AP PLUS-EX...

  • Page 37: Error Messages

    The “Err 0” occurs when scale is not stable. Remove unstable facts. “Err 0” The “Err 1” occurs when a current zero point Please call your CAS dealer. “Err 1” has shifted from the last span calibration. The “Err 3” is an overload error.

  • Page 38: Specifications

    Specifications MODEL AP PLUS 3 x 0.001 kg 6 x 0.002 kg 15 x 0.005 kg (6 x 0.002 lb) (15 x 0.005 lb) (30 x 0.01 lb) CAPACITY (Dual) 6 x 0.002 kg 15 x 0.005 kg 30 x 0.01 kg (15 x 0.005 lb) (30 x 0.01 lb) (60 x 0.02 lb)
  • Page 39 MEMO...
  • Page 40 MEMO...
