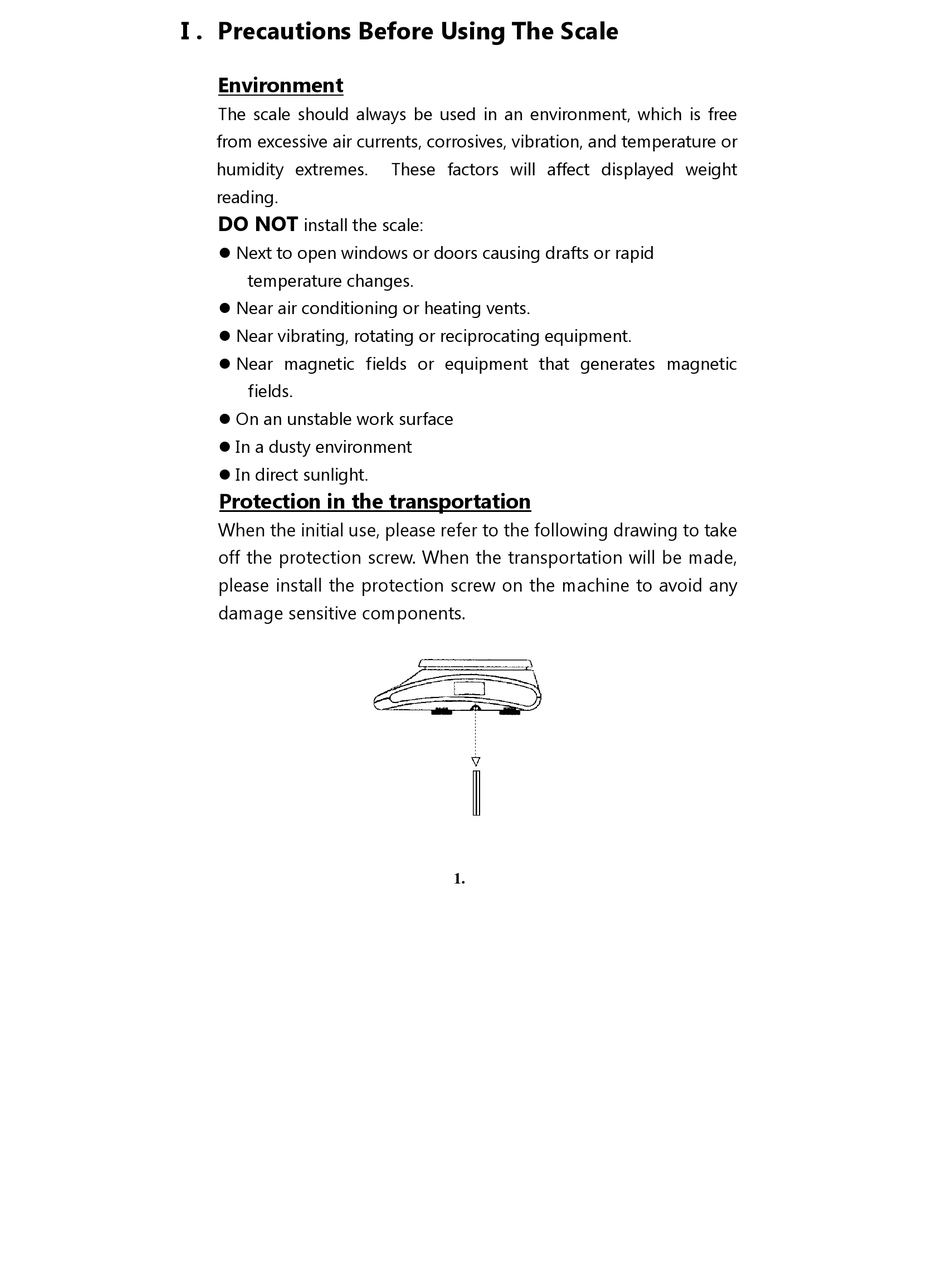

I . Precautions Before Using The Scale
Environment
The scale should always be used in an environment, which is free
from excessive air currents, corrosives, vibration, and temperature or
humidity extremes.
reading.
DO NOT
install the scale:
 Next to open windows or doors causing drafts or rapid
temperature changes.
 Near air conditioning or heating vents.
 Near vibrating, rotating or reciprocating equipment.
 Near magnetic fields or equipment that generates magnetic
fields.
 On an unstable work surface
 In a dusty environment
 In direct sunlight.
Protection in the transportation
When the initial use, please refer to the following drawing to take
off the protection screw. When the transportation will be made,
please install the protection screw on the machine to avoid any
damage sensitive components.
These factors will affect displayed weight
1.

Advertisement

loading

Related Manuals for CAS Atronics ACS

Summary of Contents for CAS Atronics ACS

  • Page 1 I . Precautions Before Using The Scale Environment The scale should always be used in an environment, which is free from excessive air currents, corrosives, vibration, and temperature or humidity extremes. These factors will affect displayed weight reading. DO NOT install the scale: ...

  • Page 2: Explanation Of Display Symbols

    Leveling the Scale The scale is equipped with a level indicator on the left bottom side of the front panel and four adjustable leveling feet. Adjust the leveling feet until the bubble appears in the center circle of the indicator. Turn on Scale Do not turn on scale with anything on the platform.
  • Page 3  Total Pieces Display – Totals 6 digits for number accumulated or being counted on the pan. Indicated Symbols Scale is in TARE mode. ： Scale is in ZERO mode. ： Scale is in ACCUMULATION mode. ： Σ+ The display reading is in STABLE condition. ：...

  • Page 4: Keypad Functions

    III. Keypad Functions Numeric keys ： : Decimal point key CLEAR: Use this key to clear out the displayed numeric readings. ZERO : If there is a minor weight displayed without anything on the pan, hit the zero key to clear the display.
  • Page 5 accumulation times. P.TARE : Use this key to preset TARE weight. IV. Operations (I) Switch on & off Push the ON/OFF switch to “I” position to turn on the scale & to “O” position to turn off the scale. (II) Zero the scale ZERO Press key to return the display to zero in...
  • Page 6 Sample Weight Input sample size SMPL 3.Press WEIGHT UNIT TOTAL p c s g / p c Sample Weight (SAMPLE ) The sampling operation is completed while stable display appears as below : WEIGHT UNIT TOTAL p c s g / p c Sample Weight Unit Weight Sample size...
  • Page 7 Known unit weight U.Wt 2. Press key to complete sampling operation & enter into counting mode. WEIGHT UNIT TOTAL PIECES p c s g / p c (IV) Preset unit weight in numeric keys How to store unit weight in memory cells 1.
  • Page 8 3. Press any of the numeric keys ( ) to store the unit weight in this selected numeric key. How to recall the unit weight stored Press the numeric key with stored unit weight inside & keep U.Wt pressing key twice. The stored unit weight will appear in the unit weight display.
  • Page 9 Container’s weight known 1. Nothing on the pan WEIGHT UNIT TOTAL PIECES p c s g / p c P.TARE Press WEIGHT UNIT TOTAL p c s g / p c Input container’s weight known WEIGHT UNIT TOTAL p c s g / p c Input container’s weight P.TARE...
  • Page 10 2. Scale is loaded WEIGHT UNIT TOTAL PIECES p c s g / p c Gross weight Unit weight of item Gross count on the pan to be counted P.TARE Press WEIGHT UNIT TOTAL p c s g / p c Input container’s weight known WEIGHT UNIT...
  • Page 11 P.TARE Press WEIGHT TOTAL UNIT p c s g / p c Net weight on Unit weight of item Net count the pan to be counted Eliminate TARE Remove all on the pan & the weight display will show a TARE negative ( - ) container’s weight.
  • Page 12 WEIGHT UNIT TOTAL p c s g / p c 3. Display readings to be stable as below. WEIGHT UNIT TOTAL PIECES p c s g / p c Σ + Total accumulated Total accumulation Total ccumulated Weight times count Accumulation effective only when stays at zero.
  • Page 13 shown in UNIT WEIGHT window and TOTAL PIECES window displays accumulated count. TOTAL Press key again to revert to counting Σ mode. Clear accumulation TOTAL Press key to enter into accumulation Σ CLEAR status mode and press key to clear all accumulated data.
  • Page 14 WEIGHT TOTAL UNIT p c s g / p c High limit High limit value keyed in Window for displaying Low limit value to be input ALARM 3. Press key again and key in the desired low limit value as indicated below. (Low limit value effective only after high limit is preset) WEIGHT UNIT...
  • Page 15 loaded or unloaded. WEIGHT UNIT TOTAL p c s g / p c High limit Window for displaying high Window for displaying limit value to be input low limit value to be input 2. Key in the desired high limit value. CLEAR key to erase the value keyed in) WEIGHT...

  • Page 16: User Programming Functions

    Clear high / low value preset Follow the above preset procedures and key in “ 0 ” or press CLEAR key directly for high and low limit value. V. User Programming Functions ( I ) Auto. shut off time span 1.
  • Page 17 TOTAL normal counting mode or press key for Σ determination and move to next. ( II ) Zero Tracking Range TOTAL 1. Keep pressing key in USER Σ PROGRAMMING FUNCTION MODE and release until the following displays appear. WEIGHT UNIT TOTAL p c s g / p c...
  • Page 18 PROGRAMMIN FUNCTION MODE and release until the following displays appear. WEIGHT UNIT TOTAL p c s g / p c Zero display range Zero display Internal count ( 0 ~ 4 ) TARE 2. Press key to revolve the system-preset zero display range ( 0, 1, 2, 3, 4 ).
  • Page 19 TARE 2. Press key to revolve the system-preset stable class range ( 0, 1, 2, 3, 4, 5 ). The bigger number selected, the shorter time for display stability. CLEAR 3. Press key to determine and return to TOTAL normal counting mode or press key for Σ...
  • Page 20 selected, the more stable zero point. CLEAR 3. Press key to determine and return to TOTAL normal counting mode or press key for Σ determination and move to next. (VI) Backlight type TOTAL 1. Keep pressing key in USER Σ PROGRAMMING FUNCTION MODE and release until the following displays appear.
  • Page 21  Auto. backlight Backlight will be going on automatically whenever the scale is loaded by objects weigh greater than 9 display resolution or any of keys is pressed. And it will be going off also automatically approx. 5 seconds after the scale returns to zero.
  • Page 22 units of Measure. (0– kg or g , 1 – lb ) CLEAR 3. Press key to determine and return to TOTAL normal counting mode or press key for Σ determination and move to next. (VIII) Unit weight recomputing TOTAL 1.
  • Page 23 remaining quantity, gradually, by several lots. This will help eliminate errors caused by the possible weight variation among each object and lead to more accurate results. When adding objects to the pan, be sure that the quantity is LESS THAN those already on the pan. The alarm will sound a beep when the unit weight is averaged again.
  • Page 24 CLEAR 3. Press key to determine and return to TOTAL normal counting mode or press key for Σ determination and move to next. Inside type ★ The alarm sounds beeps only when either total weight or total count falls inside the set range. Ex.
  • Page 25 Ex. 2 Weight check alarms UNIT WEIGHT WEIGHT TOTAL PIECES p c s g / p c Below low limit ★ Turn off the scale after all USER PROGRAMMING FUNCTIONS are set and restart for use. VI. Calibration (can only be done in kg) 1.

  • Page 26: Power Supply & Battery Operation

    counting mode. Calibration is now completed. Required weight for calibration can be changed by using ★ numeric keys while in step 2 above. ZERO Press key to escape from calibration ★ mode at any time. VII. Power supply & battery operation POWER SUPPLY ●...
  • Page 27 The battery should be charged for 12 hours for full capacity. There is an LED to indicate the status of battery charging on the right of display. When the scale is plugged into the mains power the internal battery will be charged. If the LED is Green the battery has been charged.
  • Page 28 Press the Σ+ Record#01 02000.0 g 000000 000000 Press the key again Σ+ Record#02 03000.0 g 000000 000000 TOTAL Press the Σ Total 05000.0 g 000000 Net=Net Weight Pcs=Quantity U/W=Unit Weight Ⅸ.ERROR CODES During the initial power-on testing it is possible the scale may show error message.
  • Page 29 Recharge the battery. 1.If the“ ”symbol appears, battery provided low-voltage. 2. Overload Take off the weight immediately. If the error message still is shown after above ways, please recalibrate. If the problem still can not be solved then contact your dealer for further support.
