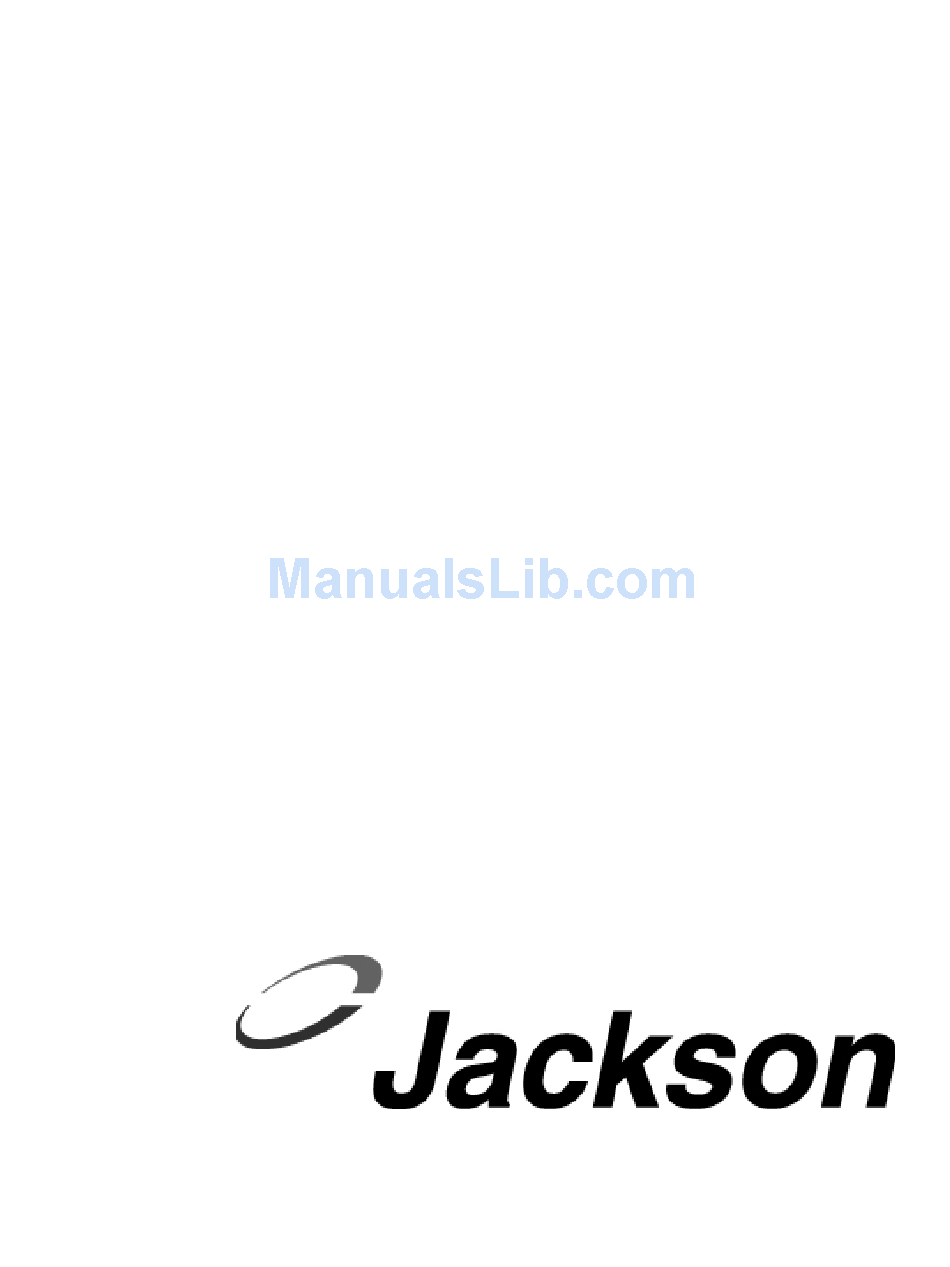

Jackson MSC 10A Service Manual

10 series round dishmachines (electrically heated)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
E
R
V
I
C
E
M
A
N
U
A
L
June 3, 2002
P/N 7610-002-41-09 (Revision B)
MODELS COVERED IN THIS MANUAL:
10AB/APRB 4SH
10A/AB/APRB 5HH
10 SERIES ROUND DISHMACHINES
(ELECTRICALLY HEATED)
10A
10AB
10APRB
www.jacksonmsc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10A and is the answer not in the manual?

Questions and answers

Related Manuals for Jackson MSC 10A

Summary of Contents for Jackson MSC 10A

  • Page 1 10 SERIES ROUND DISHMACHINES (ELECTRICALLY HEATED) MODELS COVERED IN THIS MANUAL: 10AB 10APRB 10AB/APRB 4SH 10A/AB/APRB 5HH June 3, 2002 P/N 7610-002-41-09 (Revision B) www.jacksonmsc.com...

  • Page 2: Table Of Contents

    VIII. PARTS LIST FOR 10 DISHMACINES ELECTRICAL SCHEMATICS 10A 208 - 220 V, 60 HZ, single phase 10AB 208 - 220 V, 60 HZ, single phase 10AB 208 - 220 V, 60 HZ, three phase 10AB/APRB 208 - 220 V, 60 HZ, single phase...

  • Page 3: Specifications

    BOOSTER TANK (10AB and 10APRB ONLY) 10APRB 41.8 10APRB 29.2 PUMP CAPACITY (GALLONS) WASH PUMP 70 GPM WATER REQUIREMENTS INLET TEMPERATURE (10A) 180°F TEMPERATURES INLET TEMPERATURE (10AB and 10APRB) 140°F WASH---°F (MINIMUM) WATER LINE SIZE I.P.S. (Minimum) 1/2” RINSE---°F (MINIMUM) DRAIN LINE SIZE I.D (Minimum)

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS Jackson MSC Inc. provides technical support for all of the dishmachines detailed in this manual. We strongly recommend that you refer to this manual before making a call to our technical support staff. Please have this manual with you when you call so that our staff can refer you, if necessary, to the proper page.
  • Page 5 INSTALLATION INSTRUCTIONS (Cont.) WATER SUPPLY CONNECTION: Ensure that you have read the section entitled “PLUMBING THE DISHMACHINE” above before pro- ceeding. Install the water supply line (3/4” pipe size minimum) to the end of the Y-strainer. It is recommended that a water shut-off valve be installed in the water line between the main supply and the machine to allow access for service.

  • Page 6: Operation Instructions

    OPERATION INSTRUCTIONS PREPARATION: WARE PREPARATION: Proper preparation of ware will help ensure good results and less re-washes. If not done properly, 1. Ensure that the pump intake strainer (1) and basket overflow ware may not come out clean and the efficiency of the dishma- strainer (2) are inserted and tight.

  • Page 7: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Proper maintenance of you Jackson dishmachine will insure optimum service with a minimum of down time. 1. To delime the booster tank. a. Remove the support pipe nut and lift the whole hood assembly away from the unit. b.

  • Page 8: Rinse Head/Wash Head Assemblies

    RINSE HEAD / WASH HEAD ASSEMBLIES 1. Turn master switch to off position. 2. Open hood and drain machine by lifting overflow strainer. 3. When empty, replace overflow strainer. 4. Remove the pin holding the rinse feed pipe and remove the feed pipe and rinse head assembly. 5.

  • Page 9: Timer For 10 Dishmachines

    TIMER FOR 10 DISHMACHINES General Description: The timer is a self-contained (frame mounted) timer of the repeating cycle type. It is mounted on the control panel of the control box, to control the automatic functions of the machine. It consists of a clock motor which operates on 60 cycle AC, 220 VAC.

  • Page 10: Function Of Switches, Circuit Breaker & Indicating Lights

    FUNCTION OF SWITCHES, CIRCUIT BREAKER & INDICATING LIGHTS Circuit Breaker: Rated 15 amps, controls power to the control circuit only, I.E. timer, relays, solenoid valve, water level control and motors. The circuit breaker does not cut off power in the control box at incoming terminal board and rinse heater relay contacts. Power is still applied to them when the circuit breaker is in "off' position.

  • Page 11: Thermostat Adjustment

    THERMOSTAT ADJUSTMENT The thermostat can be adjusted by turning screw #1 (see diagram) on the thermostat housing cover. (Remember the preset setting i n case the problems are elsewhere in the control circuit.) A clockwise rotation is used to obtain a lower temperature setting and a coun- terclockwise rotation is used to obtain a higher temperature setting.

  • Page 12: Rinse Tank Heater System

    RINSE TANK HEATER SYSTEM The rinse tank heater system is electrically connected in the circuit and is controlled by a heat switch (mounted on the front panel) and a thermostat (mounted near the right front leg underneath) which activates the coil on the heat relay, mounted in the control box. When higher temperature is required, power is applied to the heaters (mounted on the right end of built in boosters) when the contacts of the heat relay are closed.

  • Page 13: Wash Tank Heater System

    WASH TANK HEATER SYSTEM The wash tank heater control system is electrically connected in the circuit to operate on 208-230 Volts. The heat circuit is controlled by a heat switch (mounted right front panel), water level control (mounted top inside control box), and thermostat (mounted right front leg underneath).

  • Page 14: Water Level Control

    WATER LEVEL CONTROL This water level control is used on this machine in conjunction with a sensor, master switch, thermostat all of which help control the action of the wash tank heater. The wash heater water level control is energized when the master switch is turned on. When the water level decreases in the wash tank, the sensor (probe) sends a signal to the control which deactivates the Plug-in relay (located on the control circuit board).

  • Page 15: Water Level Control (Aprb)

    WATER LEVEL CONTROL (AS USED ON AN APRB) The water control is used on this machine in conjunction with a sensing probe, to detect the water level in the rinse tank, and to con- trol the automatic refilling of it. When the water level decreases as the rinse pump starts to push water through the rinse tubes, the probe then sends a signal to the control which deactivates the Plug-in relay (located on the control circuit board).

  • Page 16: Replacing Seal And Ceramic On Wash And Rinse Pumps

    REPLACING SEAL AND CERAMIC ON WASH AND RINSE PUMPS The pump is part of the total motor-pump system and utilizes one seal and ceramic to prevent the pump from leaking around the impeller and shaft. One gasket is used to prevent leakage in between the pump and mounting plate and the machine pump plate. REPLACEMENT of SEAL and/or CERAMIC.

  • Page 17: Troubleshooting

    TROUBLESHOOTING SECTION Problem: Nothing on the machine operates. 1. No voltage to the dishmachine. Check to see if the customer’s fuse has blown or the circuit breaker has tripped. Replace or reset. 2. Machine circuit breaker tripped or turned off. Turn on or reset. 3.
  • Page 18 TROUBLESHOOTING SECTION (CONTINUED) Problem: Vacuum breaker leaks. 1. Limed up. To disassemble: Use flat jaw wrench or channel locks. Remove the poppet. Clean poppet, top, and body. Reassemble parts removed. 2. Faulty. Replace needed parts or whole vacuum breaker. Problem: Wash arms spray water but do not rotate. 1.
  • Page 19 TROUBLESHOOTING SECTION (CONTINUED) Problem: None of the automatic functions work (wash, rinse). 1. Start switch faulty. Check switch. Replace if necessary, see instructions page concerning replacement of switches in control panel. 2. Wire connections poor. Correct the connection. 3. Timer rinse or wash microswitch faulty. See instructions page concerning timer and motor. Problem: Rinse does not work when manual rinse fill switch operated, but does work during automatic cycle.
  • Page 20 DIMENSIONS 10A (NO BOOSTER) NOTES: A - Water inlet 1/2” I.P.S. Plumbing can be directed either left or right. B - Drain connection 1 1/2” I.P.S. C - Electrical connection D - Clearance for dishes 14” E - Power rinse pump motor (10APRB only) 14 7/8”...

  • Page 21: Model 10Ab/Aprb (Standard Unit)

    DIMENSIONS 10AB/APRB (STANDARD UNIT) NOTES: A - Water inlet 1/2” I.P.S. Plumbing can be directed either left or right. B - Drain connection 1 1/2” I.P.S. C - Electrical connection D - Clearance for dishes 14” E - Power rinse pump motor (10APRB only) F - Booster tank (10AB and 10APRB only) 14 7/8”...

  • Page 22: Model 10Ab/Aprb 4Sh (4" Shorter Hood/9" Shorter Leg)

    DIMENSIONS 10AB/APRB 4SH (4” SHORTER HOOD/9” SHORTER LEGS) NOTES: A - Water inlet 1/2” I.P.S. Plumbing can be directed either left or right. B - Drain connection 1 1/2” I.P.S. C - Electrical connection D - Clearance for dishes 10” E - Power rinse pump motor (10APRB only) F - Booster tank (10AB and 10APRB only) All dimensions in inches.

  • Page 23: Model 10Ab/Aprb 5Hh (5" Higher Hood)

    DIMENSIONS 10AB/APRB 5HH (5” HIGHER HOOD) NOTES: A - Water inlet 1/2” I.P.S. Plumbing can be directed either left or right. B - Drain connection 1 1/2” I.P.S. C - Electrical connection D - Clearance for dishes 19” E - Power rinse pump motor (10APRB only) F - Booster tank (10AB and 10APRB only) 14 7/8”...

  • Page 24: Table Dimensions

    TABLE DIMENSIONS Legend A - 10” High backsplash, 2” turnback at 45 degree B - 3” High, 1 1/2” diameter rolled edge C - Scrap block D - Scrap basket with slide bars E - 20” x 20” x 5” deep pre-rinse sink F - Heavy duty pre-rinse G - 20”...

  • Page 25: 10A Assembly

    Complete Control Box Assembly Refer to Control Box Assembly Page Vacuum Breaker Assembly Refer to Vacuum Breaker Assy. Page Motor and Pump Assembly 5700-002-60-91 Incoming Plumbing Assembly 5700-002-60-98 Outlet Connector 5700-002-61-19 Tub Weldment Assembly 10A 5700-002-60-95 Bracket, Vacuum Breaker Support 5700-000-32-27...

  • Page 26: 10Ab/Aprb Assembly

    10AB/10APRB ASSEMBLY FRONT VIEW ASSEMBLY REAR VIEW ASSEMBLY ITEM DESCRIPTION Mfg. No. Hood Assembly Refer to Hood Assembly Page Motor and Pump Assembly 5700-002-60-91 Motor and Pump Assembly (APRB Only) 5700-002-60-91 Shroud, without holes for gauges 5700-000-24-77 Shroud, with holes for gauges 5700-002-60-36 Control Box Support Bracket 5700-000-24-76...

  • Page 27: Control Box Assembly

    CONTROL BOX ASSEMBLY 2, 3, 4, 5 7, 8, 9, 10, 11 18, 19, 20, 10 24, 25, 9, 10, 11 21, 22, 23 26, 27, 28 APRB only 21, 22, 23 32, 4 The complete Control Box attaches to the Control Box Support Bracket with 2 of each item: Locknut, 1/4"-20 S/S Hex...
  • Page 28 Decal, Ground 9905-011-86-86 Decal, Copper Conductors 9905-011-47-35 Control Box Weldment, Right Hand 5700-000-27-99 Control Box Weldment, Left Hand 5700-002-49-62 3 feet Rubber Strip, 1/2" x 1/8" 5330-100-10-00 Contactor (1 Phase Units) 5945-109-02-69 Contactor (3 Phase Units) 5945-109-06-69 Not used on 10A...

  • Page 29: Ordering Replacement Wire/Conduit & Fittings

    Jackson dishmachines have several color and gauges of wire used in them and it may become necessary to replace these wires. Wire may be ordered from Jackson MSC Inc., but please note that it is only available in feet. Ensure that you order the correct color and gauge.
  • Page 30 ORDERING REPLACEMENT WIRE (CONTINUED)/CONDUIT & FITTINGS MISCELLANEOUS WIRE: Brown (18 Gauge) 6145-104-20-00 Brown (20 Gauge) 6145-104-08-97 Orange (18 Gauge) 6145-104-34-00 Orange with Black Stripes (18 Gauge) 6145-011-35-62 Orange with Blue Stripes (18 Gauge) 6145-011-46-39 Orange with White Stripes (18 Gauge) 6145-011-35-63 Orange with Yellow Stripes (18 Gauge) 6145-011-35-61...

  • Page 31: Tub Assembly

    TUB ASSEMBLY 8 9 10 11 12, 13 14 Lundy Probe Assembly...
  • Page 32 TUB ASSEMBLY (CONTINUED) ITEM DESCRIPTION Mfg. No. Wire Spring Ring 5315-700-03-00 Cable Assembly 3020-201-09-01 Support, Rack Weldment 5700-000-13-43 Intake Strainer 5700-000-03-02 Bulk Head Plug 4730-609-05-00 Casting, Rinse Feed 5700-000-16-47 Gasket, Rinse Feed 5330-200-02-06 Bolt, Flat Head 5305-174-14-00 Bolt, 5/16"-18 x 1" S/S Hex 5305-275-06-00 Bolt, 1/4"-20 x 1/2"...

  • Page 33: Bottom View Assembly

    BOTTOM VIEW ASSEMBLY Refer to Thermostat Housing 2, 3 Assembly Page 7, 8 5, 6 Wash tank section 16, 17 10, 11, 12, 13 Refer to Pump & Motor 14, 8 Assembly Page...
  • Page 34 BOTTOM VIEW ASSEMBLY (CONTINUED) ITEM DESCRIPTION Mfg. No. Shroud, without holes for gauges 5700-000-24-77 Shroud, with holes for gauges 5700-002-60-36 Gauge, Temperature 6685-111-68-48 Decal, Wash and Rinse Temperature 9905-100-43-21 Control Box Support Bracket 5700-000-24-76 Thermostat Box Weldment 5700-000-59-70 Bolt, 5/16"-18 x 1" S/S Hex 5305-275-06-00 Washer, 5/16"...

  • Page 35: Wash Tank Cross View/Tub To Booster Connection

    WASH TANK CROSS VIEW / TUB TO BOOSTER CONNECTION Stainless Steel Tye Wrap Mfg. No.: 5975-602-02-20 Overflow Strainer Mfg. No.: 4730-017-15-05 Intake Strainer Mfg. No.: 5700-000-03-02 O-ring Mfg. No.: 5330-400-05-00 Thermal Overload 3, 4, 5 Mfg. No.: 5945-301-49-00 6, 7, 8 13 14 16, 17 10 APRB REAR VIEW...

  • Page 36: 10Ab/Aprb Rinse Booster & Associated Parts

    10AB/APRB RINSE BOOSTER & ASSOCIATED PARTS Rinse Heater Rinse Tank Weldment Mfg. No.: 4540-100-21-10 Mfg. No.: 5700-000-24-84 Attaches with 2 Wrapper, Rinse Heater Cover Screw, 8-18 x 1/2” Tek Hex Mfg. No.: 5700-000-26-40 Mfg. No.: 5305-272-01-00 Decal, Warning-Disconnect Power Mfg. No.: 9905-100-75-93 Booster Tank End View Booster Tank End View 3 Phase Hookup...

  • Page 37: Pump & Motor Assembly

    PUMP AND MOTOR ASSEMBLY ITEM DESCRIPTION Mfg. No. Complete Motor and Pump Assembly 5700-002-60-91 Motor, 115/230 Volt, 1/2 HP, 1 PH, 60 HZ, 6105-101-65-00 Flange, Motor Mounting, Epoxied and Painted 5700-002-60-97 Seal, Crane 5330-300-09-27 Seal, Ceramic 5330-300-02-27 Impeller 5700-000-19-11 Gasket, Pump 5330-200-34-00 Screw, 3/8"-16 x 1"...

  • Page 38: Thermostat Housing Assembly

    Thermostat, Rinse (Not used on 10A) 5930-510-02-00 Thermostat, Wash 5930-510-01-00 Overload, Thermal 5945-301-49-00 Screw, 6-32 x 1/4" S/S Round Head (2 Not used on 10A) 5305-151-02-00 Lockwasher, #6 External Tooth (2 Not used on 10A) 5311-271-02-00 Nut, 6-32 S/S Hex 5310-271-01-00 Screw, 6-32 x 3/8"...

  • Page 39: Incoming Plumbing Assemblies

    INCOMING PLUMBING ASSEMBLIES 10AB/APRB Incoming Plumbing Assembly Mfg. No. 5700-000-15-25 10A Incoming Plumbing Assembly Mfg. No. 5700-002-60-98 ITEM DESCRIPTION Mfg. No. Solenoid Valve, 1/2" 208-240 Volt 4810-100-09-18 Adapter, 1/2" Fitting x Male 4730-011-59-53 Tee, 1/2" C x 1/2" C x 1/4" Female Brass 4730-411-25-01 Ball Valve, 1/4"...

  • Page 40: Solenoid Valve Repair Kit / Vacuum Breaker Repair Kit

    1/2” SOLENOID VALVE & 1/2” NPT VACUUM BREAKER REPAIR PARTS KITS Screw Cap Screw Data Plate Coil & Housing Data Plate Valve Bonnet Spring 4810-200-04-18 Plunger 4810-200-04-18 Cap Retainer O-Ring Diaphragm O-Ring 4810-100-03-18 Retainer Diaphragm Plunger 4810-100-03-18 COMPONENTS OF Screen REPAIR KIT Body Retainer...

  • Page 41: Hood & Associated Assemblies

    HOOD AND ASSOCIATED ASSEMBLIES 9, 10...
  • Page 42 HOOD AND ASSOCIATED ASSEMBLIES (CONTINUED) ITEM DESCRIPTION Mfg. No. Hood Support, Standard 5700-000-05-57 Hood Support, 4SH 5700-002-60-99 Hood Support, 5HH 5700-000-62-91 Plug, 1/4" Plated 5700-002-61-00 Nut, Plated 5700-000-05-52 Washer, S/S Hood 5311-179-01-00 Washer, Phenolic 5311-369-02-00 Door, Outer Weldment, Standard 5700-002-61-01 Door, Outer Weldment, 4SH 5700-002-61-02 Door, Outer Weldment, 5HH...

  • Page 43: Vacuum Breaker/Connector Assemblies 10A

    VACUUM BREAKER/CONNECTOR ASSEMBLIES 10A Outlet Connector Complete Vacuum Breaker Assembly Mfg. No.: 5700-002-61-19 Mfg. No.: 5700-002-61-18 Plated Inlet Assembly Mfg. No.: 5700-002-61-20 Plated Outlet Assembly Mfg. No.: 5700-002-61-21 Outlet Connector Mfg. No.: 5700-002-61-19...

  • Page 44: Vacuum Breaker/Connector Assemblies 10Ab/Aprb Standard & 5Hh

    VACUUM BREAKER/CONNECTOR ASSEMBLIES 10AB/APRB ALL UNITS Vacuum Breaker Mfg. No.: 4820-300-07-00 Outlet Connector Mfg. No.: 5700-002-60-92 Plated Inlet Assembly, Standard Mfg. No.: 5700-002-61-10 Plated Inlet Assembly, 4SH Before Machine Serial No. 45973 Mfg. No.: 5700-002-61-11 Plated Inlet Assembly, 5HH Mfg. No.: 5700-002-61-12 Plated Outlet Assembly, Standard Mfg.

  • Page 45: Vacuum Breaker/Connector Assemblies 10Ab/Aprb 4Sh (Starting With S/N 45973)

    VACUUM BREAKER/CONNECTOR ASSEMBLIES 10AB/APRB 4SH Outlet Connector Complete Vacuum Breaker Assembly, 4SH Mfg. No.: 5700-002-60-92 Mfg. No.: 5700-002-60-74 Starting with Machine Serial No. 45973 Vacuum Breaker Mfg. No.: 4820-300-07-00 Plated Inlet Assembly, 4SH Mfg. No.: 5700-002-60-78 Inlet Connector Mfg. No.: 5700-002-60-93 Plated Outlet Assembly, 4SH Mfg.

  • Page 46: Parts List For 10 Dishmacines

    PARTS LIST FOR MODEL 10 DISHWASHERS PART No. DESCRIPTION SERIAL No. QTY. 6401-000-54-00 Booster Tank for machine (stripped) AB AF 28,000 6401-000-58-00 Booster Tank for machine (stripped) APRB AF 28,000 5925-105-10-01 Circuit Breaker, 15 amp (specify number from part) Specify 0016300 Control Box, Complete Wired A AF 28,000...
  • Page 47 PARTS LIST FOR MODEL 10 DISHWASHERS PART No. DESCRIPTION SERIAL No. QTY. 7320-100-14-01 Rack, Eight-Compartment Basket (silverware) moulded All Models (P4C8) 7320-100-05-01 Rack, Twelve-Compartment Basket (silverware) moulded All Models (P4C12) 6400-000-90-24 Rack, Square Moulded w/Stainless “H” bar (for 20” x 20” sinks), dishtables 4820-100-04-07 Regulator, Pressure, 1/2”...

  • Page 48: Electrical Schematics

    10A, 10AB, 10APRB ELECTRICAL SCHEMATICS 10A 208/220V 1 PHASE 09905-002-57-63 A TERMINAL WASH WASH BOARD #1 MOTOR HEATER CIRCUIT BREAKER CUSTOMER SERVICE 15 AMP RATING ½ HP 630 WATTS 5.3 AMPS 10AB 208/220V 1 PHASE 09905-105-33-59 B RINSE HEATERS TERMINAL...
  • Page 49 208-230 VOLT/ 60 HERTZ / 1PHASE WIRING DIAGRAM...
  • Page 50 10AB 208-230 VOLT/ 60 HERTZ / 1PHASE WIRING DIAGRAM 9905-000-54-97...
  • Page 51 10AB 208-230 VOLT/ 60 HERTZ / 3PHASE WIRING DIAGRAM 9905-002-55-90a...
  • Page 52 10APRB 208-230 VOLT/ 60 HERTZ / 1PHASE WIRING DIAGRAM 9905-002-55-91a...
  • Page 53 10APRB 208-230 VOLT/ 60 HERTZ / 3PHASE WIRING DIAGRAM 9905-002-55-92a...

This manual is also suitable for:
