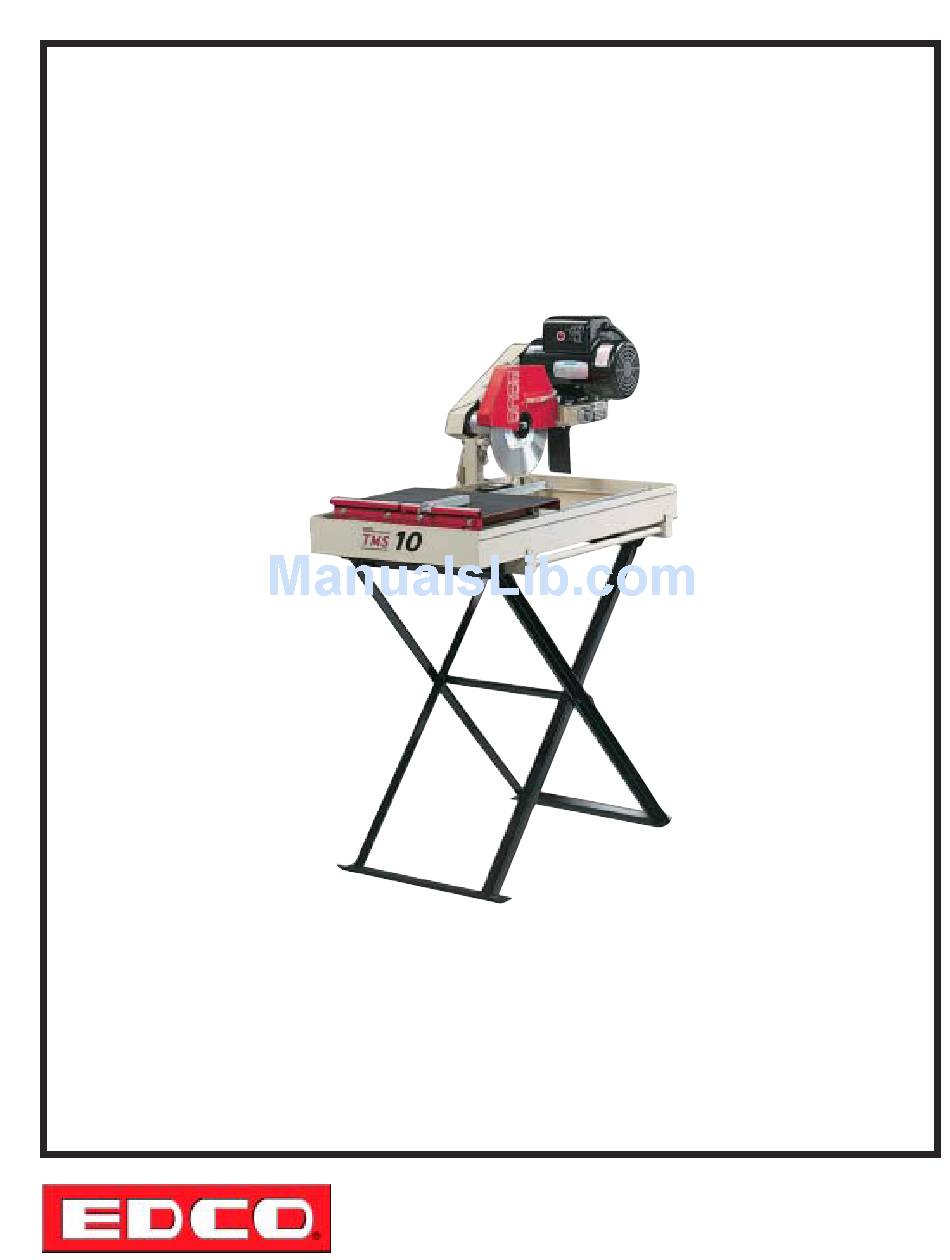

  • Page 1 E-TMS10-I-0504 Operator’s Instruction Manual TMS-10 Shown with optional Stand 10” Electric Powered Masonry Saw 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 © 2004 Page 1 Website: www.edcoinc.com • Email: sales@edcoinc.com...
  • Page 2 E-TMS10-I-0504 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp the plug, not the cord.

  • Page 3: Table Of Contents

    Figure 1 HOW TO ORDER REPAIR PARTS Overall Dimensions without optional stand To insure product safety and reliability, always use genuine EDCO replace- ment parts when making repairs to the equipment. 54cm Height 21 1/4”...

  • Page 4: Safety

    Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the TMS-10 is in use. During normal operation, sound pressure levels exceed 92dBA. Use only ANSI approved safety glasses to help prevent eye injury.

  • Page 5: Operating Instructions

    E-TMS10-I-0504 Operating Instructions Consult the Motor Manufacturer’s Owner’s Manual for information on specific models. A. Belt Guard B. Electric Motor C. On/Off Switch D. Blade Guard E. Diamond Blade F. Water Tray G. Rolling Table Wheels H. Rolling Table Head Locking Handle Splash Guard K.
  • Page 6 E-TMS10-I-0504 Operation Turn motor switch to on position -- listen for motor to reach operating speed. DO NOT use machine if motor hums or does not reach operating speed within a few seconds. Motor hum is a malfunction that may be caused by: 1.

  • Page 7: Before Starting

    E-TMS10-I-0504 Before Starting: • Read and understand the instructions supplied by the motor manufacturer. • Familiarize yourself with all saw controls. (Figures 2-4) • Visually inspect the entire machine for damage or wear. Remove excess dirt or debris. Check that all nuts, bolts and screws are tightened.
  • Page 8 E-TMS10-I-0504 Starting the Saw: • Be sure blade is clear of item to be cut. • Be sure cutting head is secured in cutting position. • Turn motor power switch to on position and observe that motor comes to full speed before continuing. Cutting: •...

  • Page 9: Maintenance

    Rx for Diamond Blades pamphlet provided with your blade for more detailed information on inspecting blades. Be sure the blade is appropriate for the job and matches the arbor speed and mounting configuration on this saw. (See page 7) The TMS-10 was designed to be used with diamond saw blades Step One: Remove power plug from power source.
  • Page 10 E-TMS10-I-0504 Belt Adjustment and Replacement: • Periodically check to be sure the belt is undamaged and that it is at the proper tension. A slipping belt will overheat causing the cutting speed to vary, shortening the life of the belt. An over-tensioned belt will shorten the life of the belt & bearings.

  • Page 11: Maintenance Schedule

    E-TMS10-I-0504 Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Maintenance Schedule This is for a quick reference to the information supplied in the Maintenance portion of this manual. Follow Manufacturer’s...
  • Page 12 EDCO will not in any event be liable to the user, any successors in interest or any beneficiary or assignee This warranty, does not apply to failure occurring as a...
