3) Installation of PhoXi® 3D Scanner

Guidelines for installing

PhoXi® 3D Scanner is designed to be easy to install. You can install a scanner either
on a 4xM4 22x45mm raster,M8 or 3/8-16 UNC screw, and you can orient the scanner
in every way
1. Mount the scanner using preferred method, refer to Dimensions and drawings,
page 20. Example of mounting via 4xM4 screws is shown at image 2:
Mounting of Scanner. Take into account a correct scanning distance of object
and obstacles in between scanner and object.
2. Connect the scanner to the computer or local network via ethernet cable or via
ethernet adapter provided
2 - CAD model of scanner is downloadable from Photoneo Wiki:
http://wiki.photoneo.com/index.php/PhoXi_3D_scanners_family#CAD_data
3 - May vary with firmware version
PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3
2 .

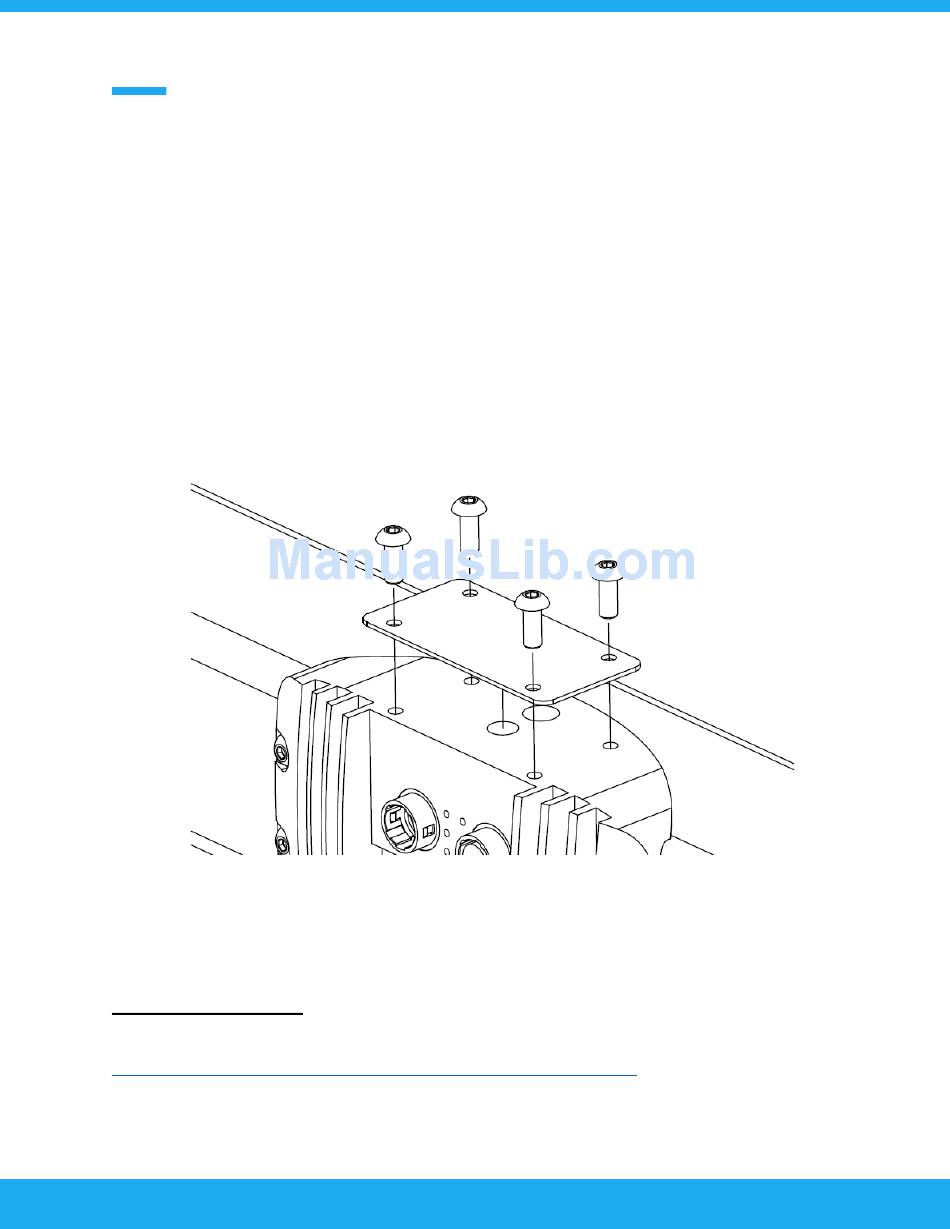

image 2: Mounting of Scanner
