Remote Meter Installation - TCS 3000 Installation Manual

Before beginning the installation of the TCS 3000 register, unpack the entire contents of the packaging in a safe loca-
tion where you will not misplace any of the parts. Lay out the parts as they would be installed. This will ensure that
you have all the correct parts for the installation. Verifying all the necessary parts were included in the shipment in
advance will reduce downtime and avoid any wasted preparation work.
Fuse
Fuse Holder
Resistors
USB Adapter
Installation Procedure:
1. Use the Remove Mount Kit to mount the TCS3000 register in your desired location.
2. Follow the directions in the Direct Mount Pulser Manual (TCS900030) to install the Pulser on the meter.
3. Once the Pulser is wired, run the corresponding wire cable into the back of the TCS 3000 register.
4. Insert the pulser wiring through the cable gland. Wire the pulser into the correct pulser location on the terminal
board. Leave a small amount of slack on the wiring. Be careful not to leave any bare exposed wiring.
5. Compress the cable gland on the TCS3000 register until it is snug on the pulser wire.

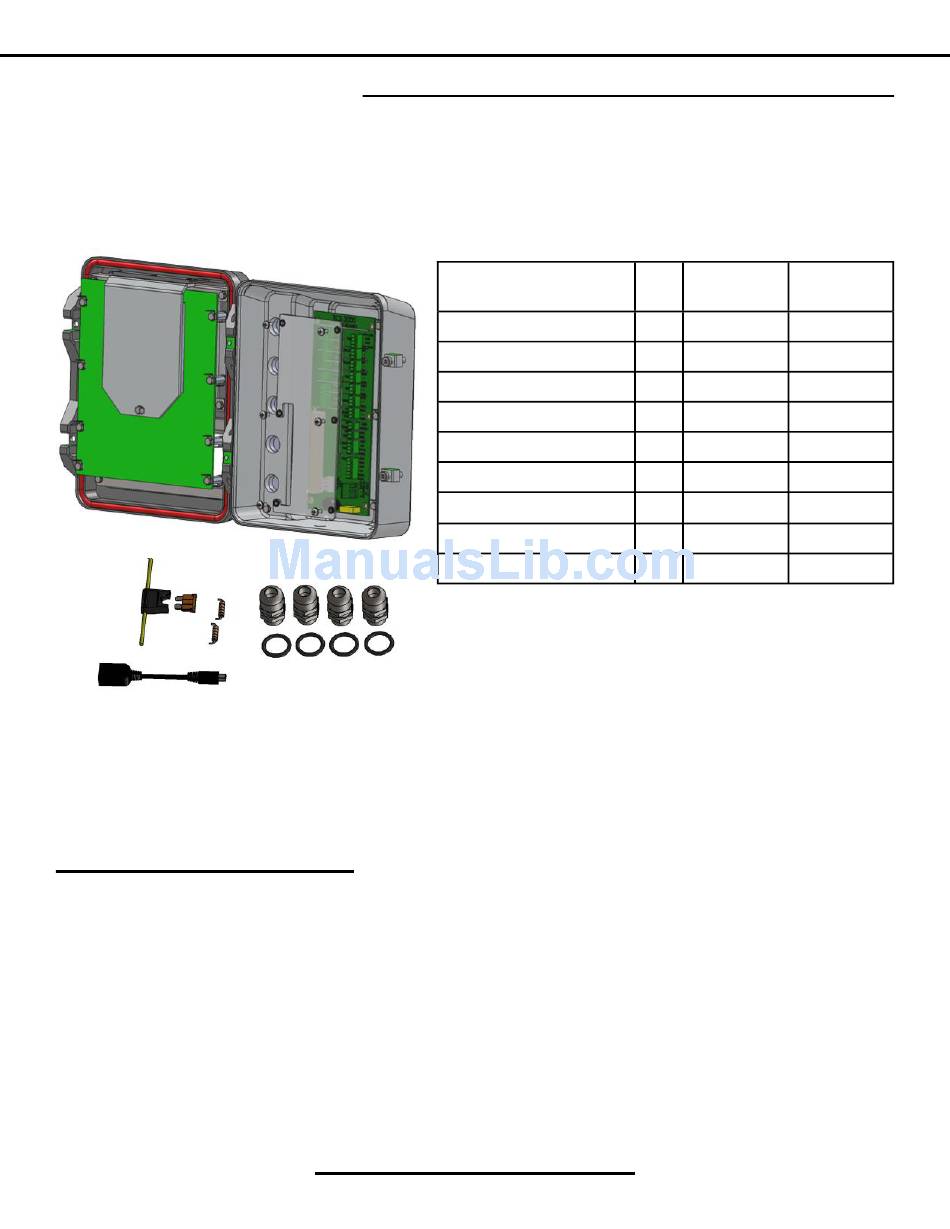

Total Control Systems
Installation Procedure — 3000 Remote Mount
Phillips Pan
Spring Washer
Terminal Cover
7.5 AMP Fuse
Fuse Holder
Cable Gland
O-Ring, Cable Gland
USB Fem/Mini Male Cable
Resistor 1K OHM
Cable Glands
8 8
TCS 3000 Installation
TCS 300877
Item Qty
6 TCS300137
6 TCS300138
1 TCS300164
1 TCS300192
1 TCS300193
4 TCS300249
4 TCS300245
1 TCS300705
2 TCS300753
TCS 300977
Metric NPT
TCS300137
TCS300138
TCS300164
TCS300192
TCS300193
TCS300133
TCS300245
TCS300705
TCS300753
