700 Rotary Meter Installation - TCS 3000 Installation Manual

Before beginning the installation of the TCS 3000 register, unpack the entire contents of the packaging in a safe loca-
tion where you will not misplace any of the parts. Lay out the parts as they would be installed on the truck. This will
ensure that you have all the correct parts for the installation. Verifying all the necessary parts were included in the
shipment in advance will reduce the truck downtime and avoid any wasted truck preparation work.

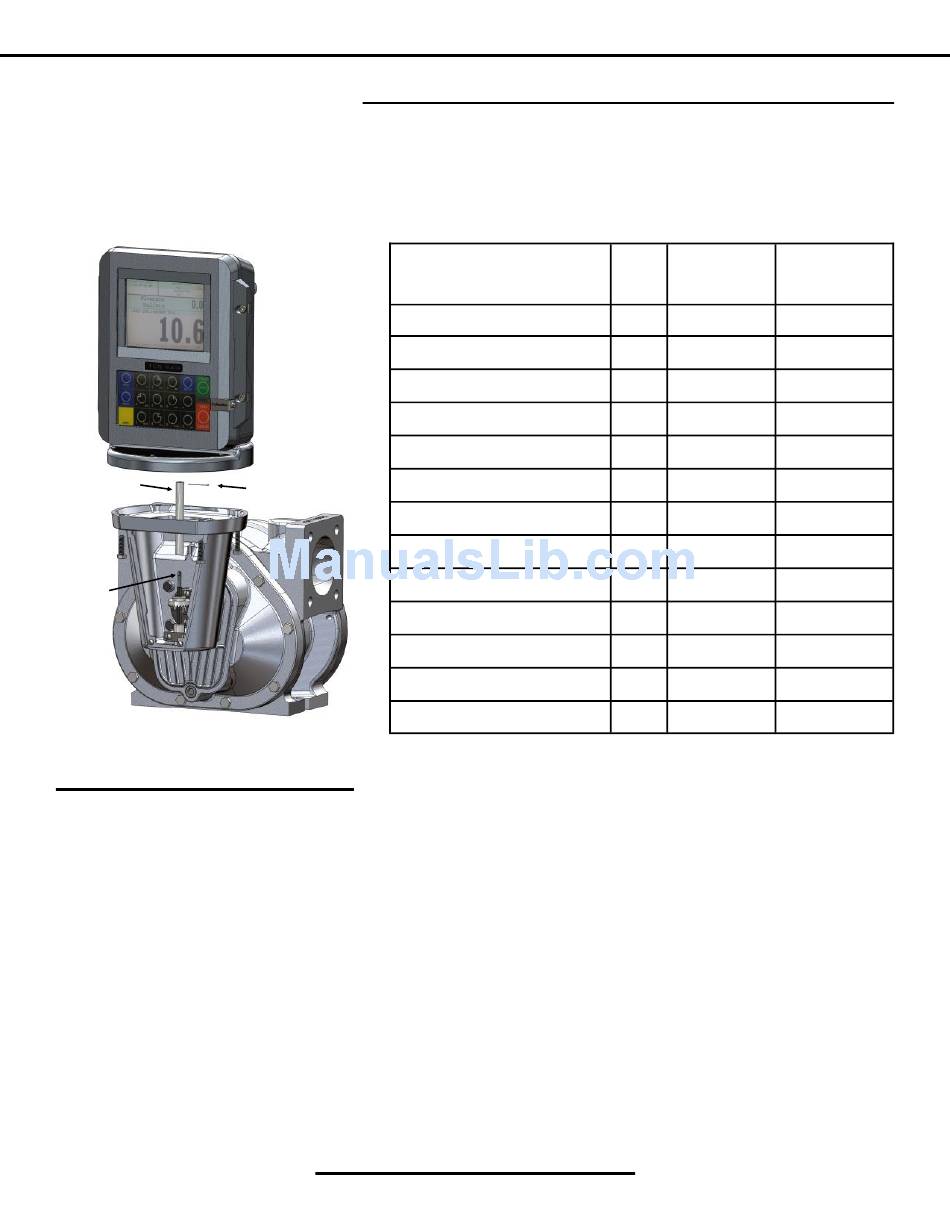

700 Drive Coupling
700 Drive Shaft
Installation Procedure:
1. Remove and put aside the four mounting bolts and any mounting adaptor. Remove the existing mechanical regis-
ter or electronic register, if applicable. Use a box or container to set old equipment and parts in.
2. Remove adjuster dust cover plate from the front of the meter. Remove existing adjuster. Set adjuster dust cover
aside in a box or container where it will not be misplaced. Screw the screws back into meter unit. Notice the type
of vertical drive shaft in the meter.
3. Using the shaft specific to your installation, slide the Drive Coupling on the Pulser and align the holes. Once the
holes are aligned insert the Cotter Pin and bend the pin ends back around the Drive Coupling.
4. Slide the Drive Coupling onto the Meter Drive Shaft.
5. Rotate the TCS 3000 register until the display is facing in the desired direction and check to see that the meter
holes align with the holes at the base of the TCS 3000 register.
6. Secure the bolts.
Total Control Systems
Installation Procedure — TCS 700 Series Meter
Phillips Pan
Spring Washer
Terminal Cover
7.5 AMP Fuse
Fuse Holder
Cable Gland
Cotter Pin
O-Ring, Cable Gland
USB Fem/Mini Male Cable
Resistor 1K OHM
1/4—28X1 Zinc Bolt
1/4-28X1 Drilled Bolt
3/64 X 1 Cotter Pin
700 Meter Drive Coupling
TCS 3000 Installation
Item Qty
6
6
1
1
1
4
4
1
2
2
2
1
1
7
TCS 300870 TCS 300970
Metric NPT
TCS300137 TCS300137
TCS300138 TCS300138
TCS300164 TCS300164
TCS300192 TCS300192
TCS300193 TCS300193
TCS300244 TCS300133
TCS300245 TCS300245
TCS300705 TCS300705
TCS300753 TCS300753
TCS68013 TCS68013
TCS68013D TCS68013D
TCS790091 TCS790091
TCS790092 TCS790092
