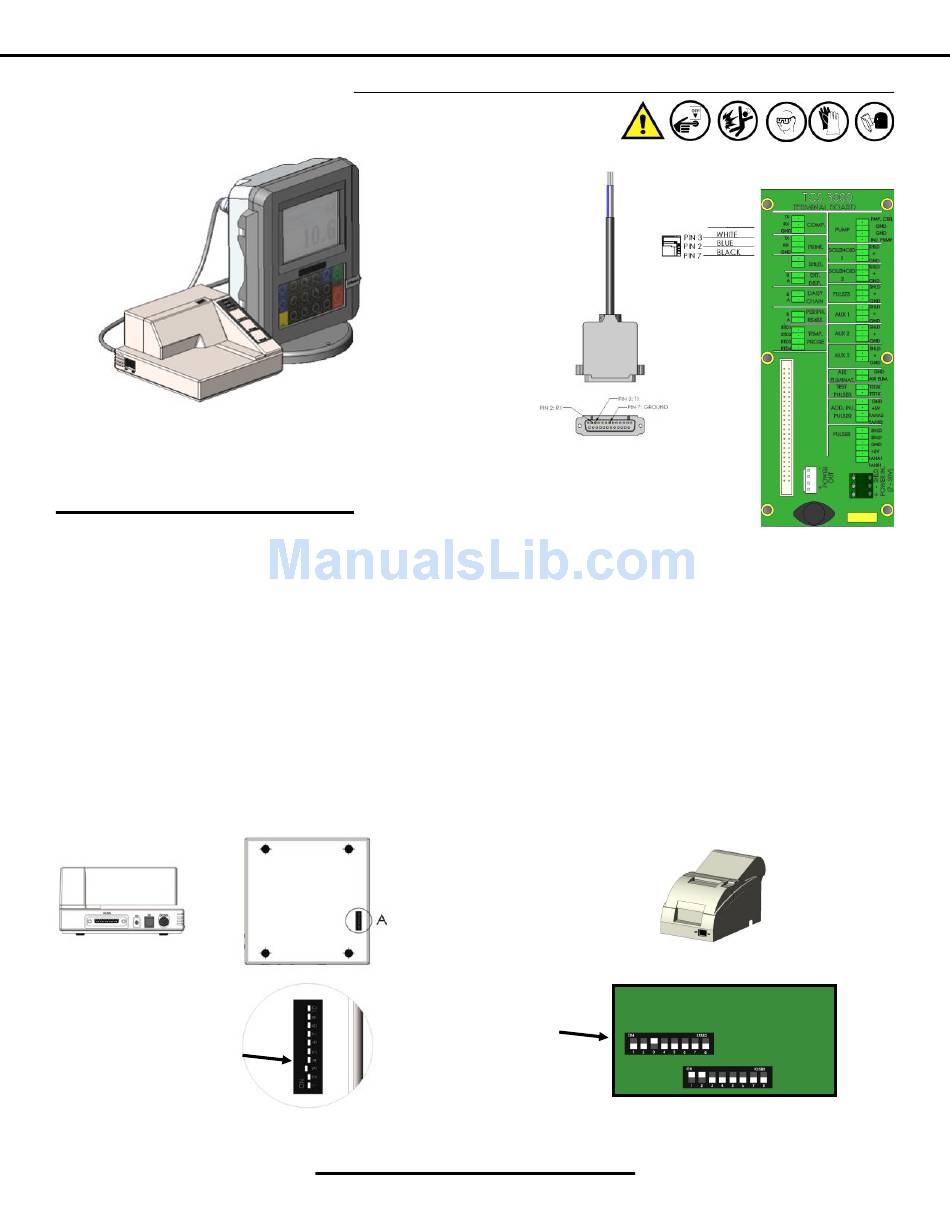

Installation Procedure:
1. Find a suitable location for the printer appropriate to your application.
2. Secure the printer in place with the Velcro strip provided.
3. Wire the power and communication cables into the back of the printer.
4. Run the communication cable to the back of the TCS3000.
5. Screw the cable gland into the back of the TCS3000 and tighten.
6. Insert the printer communication cable into the cable gland and wire into the correct location on the terminal
board.
7. Compress the cable gland on the TCS3000 until it is snug on the printer communication cable.
Epson Slip Printer
The DIP Switch on Pole
3 must be set to ON.
NOTE: Once DIP Switch 3 has been moved to position ON; You must cycle power for the Parameter to retain.
Total Control Systems
The DIP Switch on Pole
3 must be set to ON.
DETAIL A
TCS 3000 Installation
Installation Procedure — Printer
25
Epson Roll Printer
DETAIL B
