Power
Switches & connectors
DIP switch - A corresponding line termination switch is supplied for each video input. All
units are shipped with line termination enabled for each video input; that is, with the DIP
switch set in the down position.
Note:
If the video source is to be connected in parallel with other equipment, disable the input termination by
turning the corresponding DIP switch to the up position (OFF). Failure to do so may cause reduced image
quality.
Control Button - Press this button to restore the factory default settings, as described in
Resetting to the factory default settings, on page 56. This button is also used to install the
video server using AXIS Internet Dynamic DNS Service (See the Axis Video Server
Installation Guide).
Video Input - Each supported video input (1 or 4 depending on the model) is connected
using a coax/BNC connector. Physical connections made using a 75 ohm coaxial video
cable have a recommended maximum length of 800 feet (250 meters).
Line Out - Mono audio output (line level), which can be connected to a public address (PA)
system or an active speaker with a built-in amplifier. A pair of headphones can also be
attached.
Line/Mic In - Single 3.5 mm input for a mono microphone, or line level mono signal (only
the left channel is used from a stereo signal).

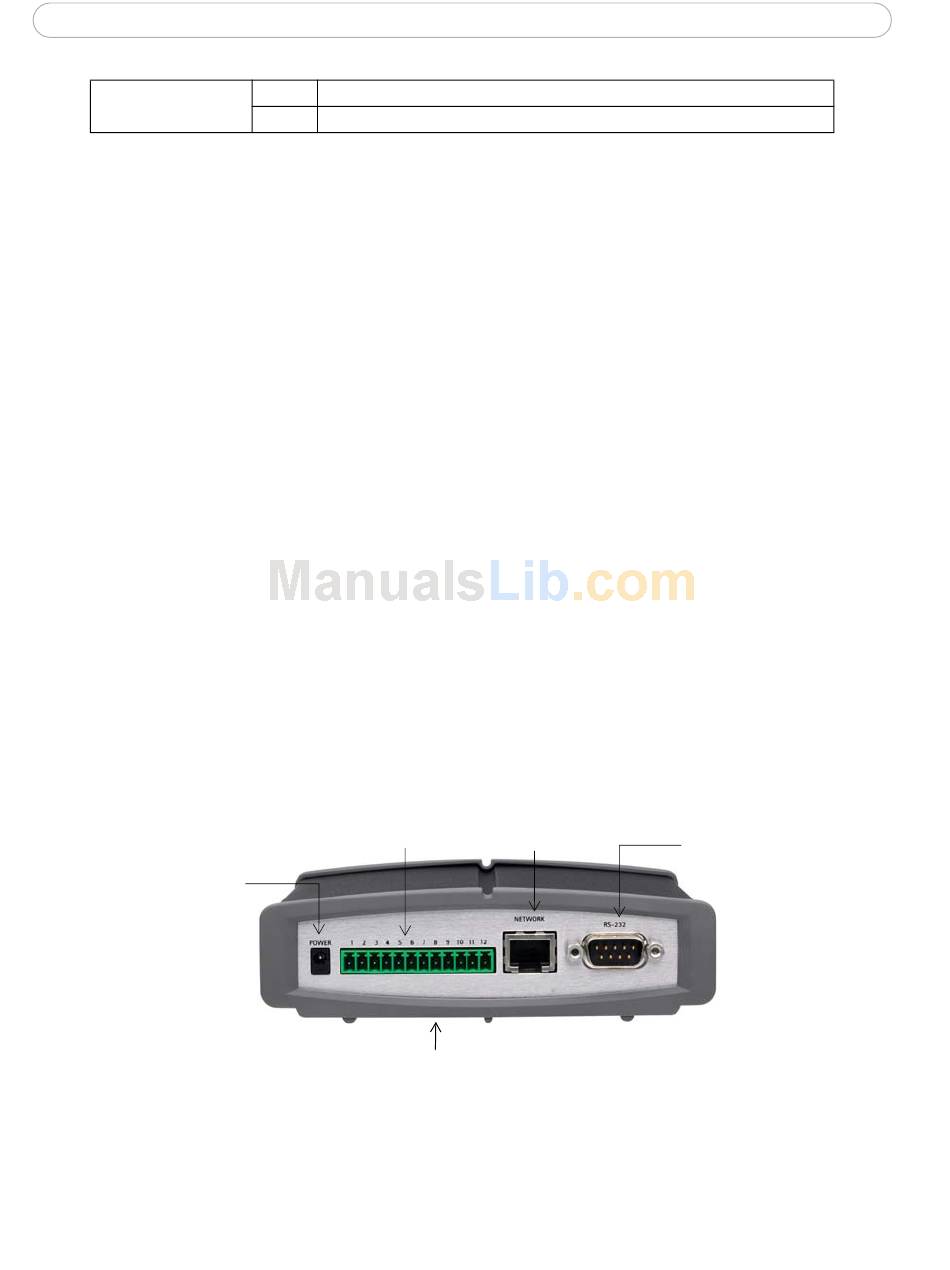

Rear panel

Power adapter
connector
Power adapter connector - For connecting the power adapter.
I/O terminal connector - The I/O terminal connector provides the physical interface to four
digital transistor outputs, 4 digital inputs and an RS-485 interface. See Unit connectors, on
page 57 for more information.
Green Normal operation.
Amber Flashes green/amber during firmware upgrade.
12-pin I/O terminal
connector
Serial number on underside label
AXIS 241QA/AXIS 241SA - Product description
Network
connector RS-232
connector
7
