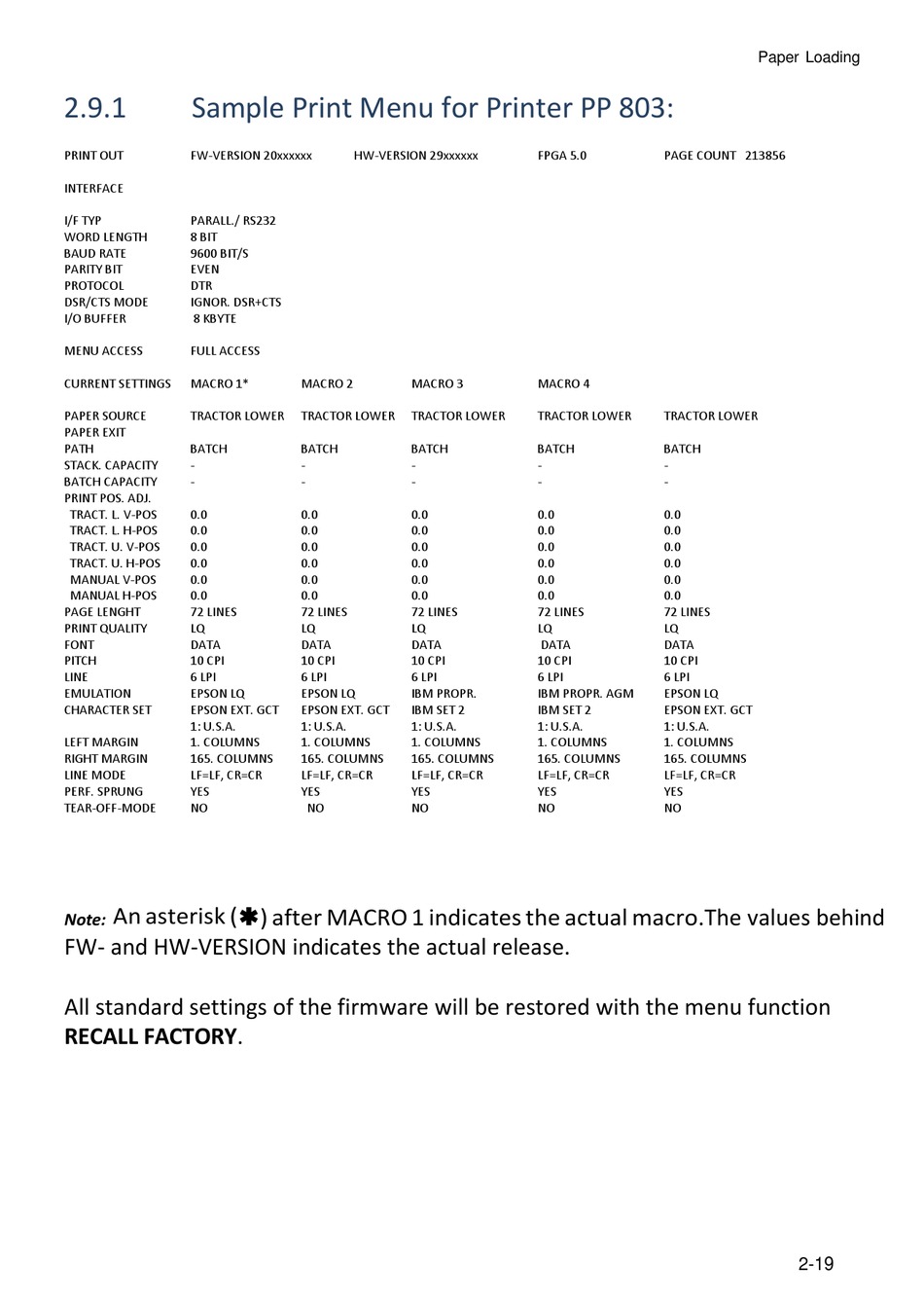

Sample Print Menu for Printer PP 803:

PRINT OUT FW-VERSION 20xxxxxx
INTERFACE
I/F TYP PARALL./ RS232
WORD LENGTH 8 BIT
BAUD RATE 9600 BIT/S
PARITY BIT EVEN
PROTOCOL DTR
DSR/CTS MODE IGNOR. DSR+CTS
I/O BUFFER 8 KBYTE
MENU ACCESS FULL ACCESS
CURRENT SETTINGS MACRO 1*
PAPER SOURCE TRACTOR LOWER
PAPER EXIT
PATH BATCH
STACK. CAPACITY -
BATCH CAPACITY -
PRINT POS. ADJ.
TRACT. L. V-POS 0.0
TRACT. L. H-POS 0.0
TRACT. U. V-POS 0.0
TRACT. U. H-POS 0.0
MANUAL V-POS 0.0
MANUAL H-POS 0.0
PAGE LENGHT 72 LINES
PRINT QUALITY LQ
FONT DATA
PITCH 10 CPI
LINE 6 LPI
EMULATION EPSON LQ
CHARACTER SET EPSON EXT. GCT
1: U.S.A.
LEFT MARGIN 1. COLUMNS
RIGHT MARGIN 165. COLUMNS
LINE MODE LF=LF, CR=CR
PERF. SPRUNG YES
TEAR-OFF-MODE NO
An asterisk ( ) after MACRO 1 indicates the actual macro.The values behind
Note:
FW- and HW-VERSION indicates the actual release.
All standard settings of the firmware will be restored with the menu function

RECALL FACTORY.
