Microplex PP 803 User Manual page 162

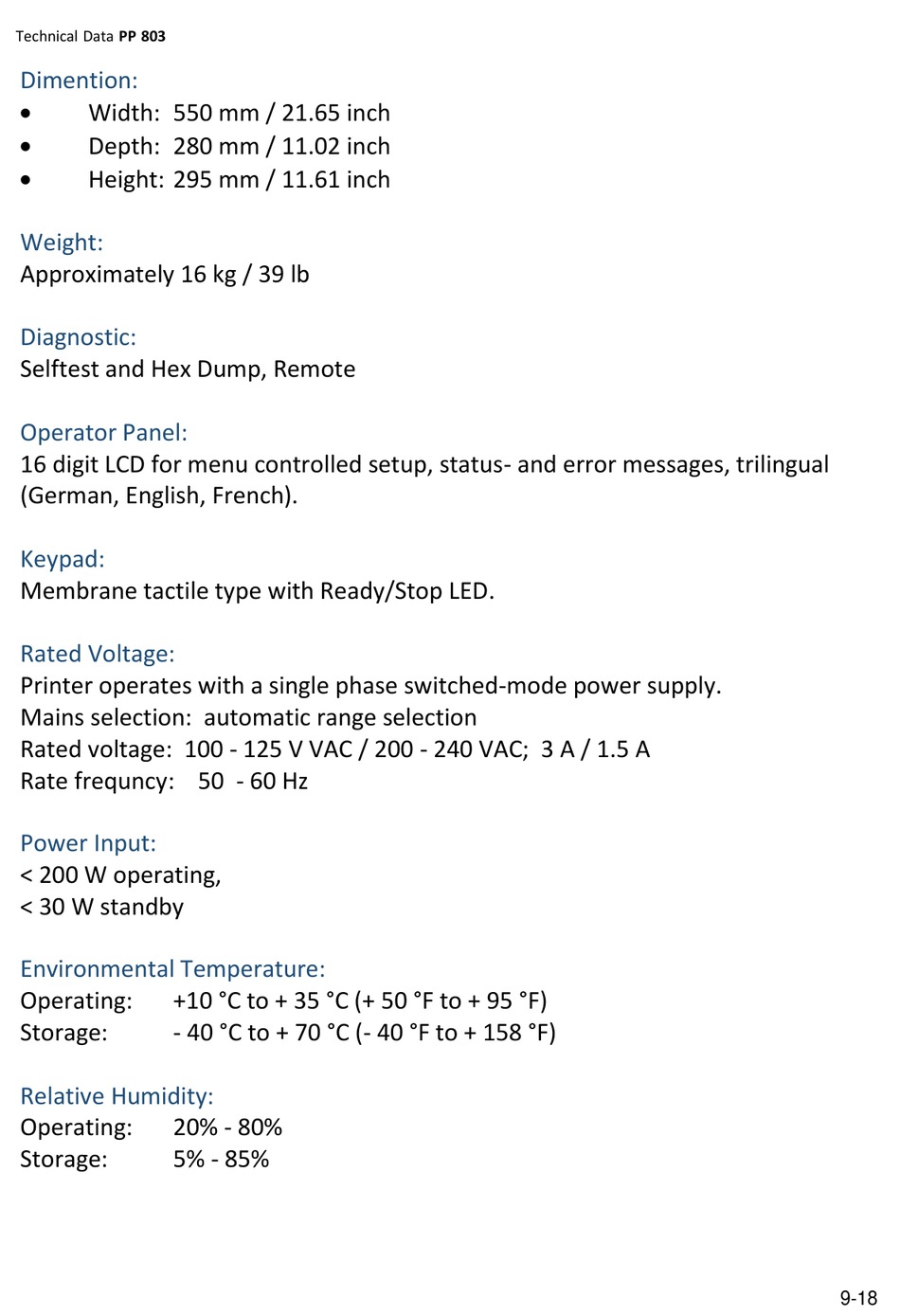

Technical Data PP 803
Dimention:

Width: 550 mm / 21.65 inch

Depth: 280 mm / 11.02 inch

Height: 295 mm / 11.61 inch
Weight:
Approximately 16 kg / 39 lb
Diagnostic:
Selftest and Hex Dump, Remote
Operator Panel:
16 digit LCD for menu controlled setup, status- and error messages, trilingual
(German, English, French).
Keypad:
Membrane tactile type with Ready/Stop LED.
Rated Voltage:
Printer operates with a single phase switched-mode power supply.
Mains selection: automatic range selection
Rated voltage: 100 - 125 V VAC / 200 - 240 VAC; 3 A / 1.5 A
Rate frequncy: 50 - 60 Hz
Power Input:
< 200 W operating,
< 30 W standby
Environmental Temperature:
Operating: +10 °C to + 35 °C (+ 50 °F to + 95 °F)
Storage: - 40 °C to + 70 °C (- 40 °F to + 158 °F)
Relative Humidity:
Operating: 20% - 80%
Storage: 5% - 85%
9-18
