EN

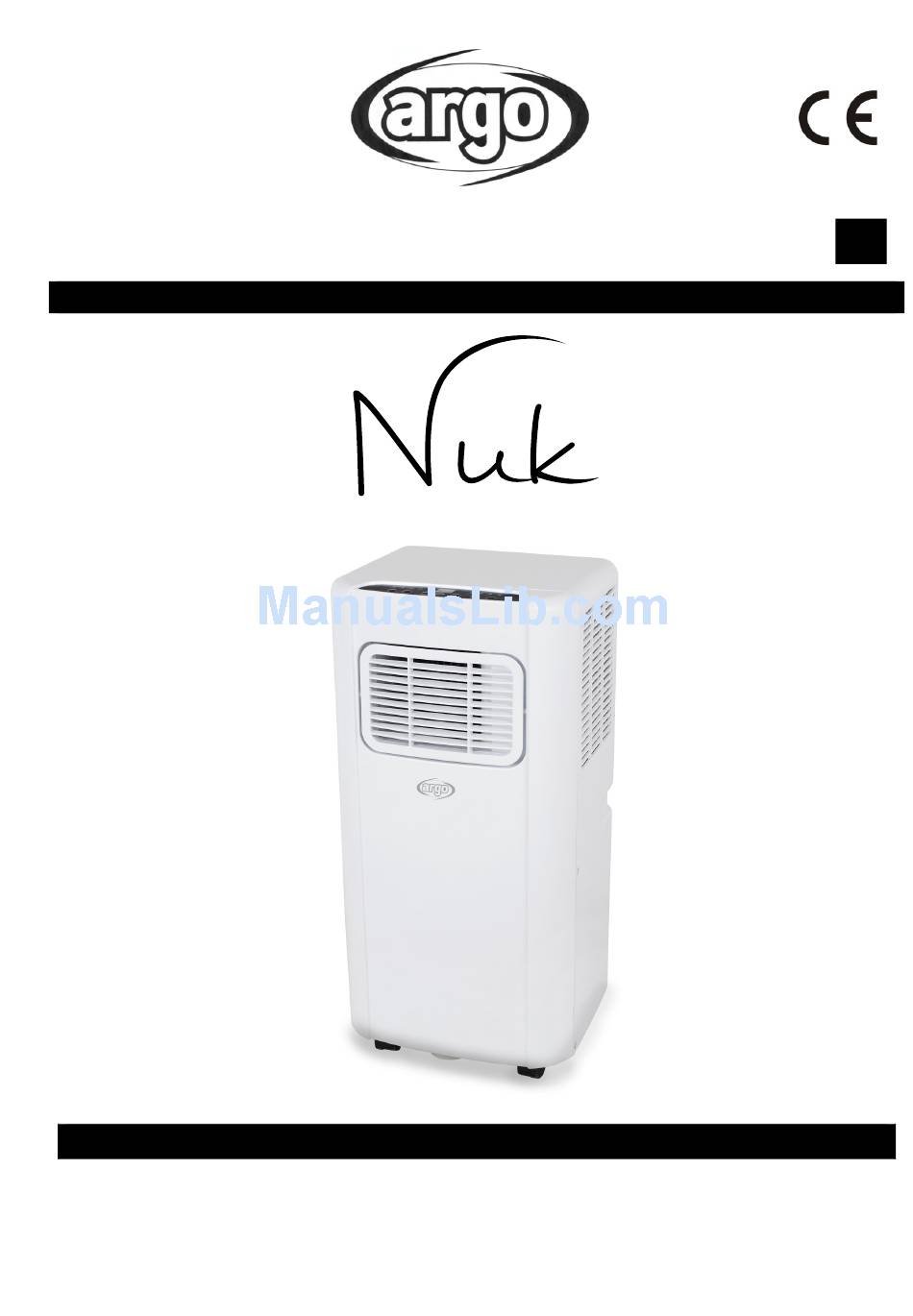

PORTABLE AIR CONDITIONER (LOCAL)
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Store these instructions in a safe place for future reference.
V 01/18
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nuk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argo Nuk

Summary of Contents for Argo Nuk

  • Page 1 PORTABLE AIR CONDITIONER (LOCAL) OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Store these instructions in a safe place for future reference. V 01/18...
  • Page 2 Appliance filled with flammable gas R290. Before installing and using the appliance, read the owner’s manual. Before repairing the appliance, read the service manual. The Refrigerant R290  To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
  • Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a local air conditioner designed for domestic use.  Only use this air-conditioner as described in this manual.  Ensure that the required voltage and frequency (220-240 V/50 Hz) match the available power source. ...
  • Page 4  Do not use the plug as a means by which to start/stop the air conditioner: use the ON/OFF button on the remote control or on the control panel.  Do not install the air conditioner in rooms where it may receive water splashes (e.g.
  • Page 5  Ensure that air circulates freely around the unit. Do not cover the air intake and delivery grilles with drapes or other items. WARNING!  The air conditioner must be positioned at least 50 cm away from the wall or other obstacles, on a flat and stable surface so as to avoid water leakages.

  • Page 6: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE FRONT VIEW CONTROL PANEL AND FUNCTION BUTTONS WITHOUT REMOTE CONTROL HORIZONTAL FINS AND AIR INTAKE WHEELS LATERAL AIR INPUT LATERAL REMOVABLE FILTER REAR PANEL FRONT PANEL POWER CORD AIR INPUT AND REAR REMOVABLE FILTER SIDE VIEW 10) REMOTE CONTROL (10) REAR VIEW...

  • Page 7: Appliance Start-Up

    APPLIANCE START-UP Open the packaging and remove the box from above. Remove the product and the other elements supplied (illustrated in the box below). Type batteries Remote control for the remote control Hose Round fitting to position between the air discharge outlet and the flexible pipe.
  • Page 8 Open the windows and lock one of the two leaves with the Connect the round window fitting (1) to the end handle. of the hose then the end fitting for the window (2), Place the end fitting against the fixed leaf of the window, previously obtained by joining parts A and B and draw the other leaf towards it.

  • Page 9: How To Use The Appliance

    Connect the power cord to a suitable electrical socket (220-240 V). Insert the batteries supplied into the remote control, while observing the polarities. Select the desired operating mode from the remote control. HOW TO USE THE APPLIANCE This appliance can be used for cooling, dehumidifying and ventilating. When switching between modes, the fan continues to rotate but the compressor stops: the compressor will start after 3 minutes.

  • Page 10: Remote Control Operation

    CONDENSATE ELIMINATION This appliance automatically vaporises condensate in cooling mode. Ensure that when the unit is operating in cooling mode, the rubber caps closing the drainage holes on the rear of the appliance are properly positioned. When the tank is full, the “Full Tank” led will light up. To empty the container, switch the air conditioner off and unplug it.
  • Page 11 FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE RECEIVER LOCATED ON THE AIR CONDITIONER. The remote control can be activated by pressing the ON/OFF button on the portable unit. The icon on the remote control display will flash once and a buzzer will sound to indicate that the signal was transmitted to the air conditioner. In the OFF mode, the set temperature and set timer will appear on the remote control.

  • Page 12: Troubleshooting

    (6) TIMER BUTTON a. When the air conditioner is off, press “TIMER” to set when to switch the unit on. Press “+” o “–“ to set the time. b. When the air conditioner is on, press “TIMER” to set when to switch the unit off. Press “+” o “–“ to set the time. TROUBLESHOOTING Troubles Possible Causes...
  • Page 13 4. Transport. Preferably keep the air conditioner in the vertical position when transporting it. Should this not be possible, rest it on its right-hand side; when it reaches its destination, immediately put the appliance in the vertical position and wait at least 4 hours before using it in the cooling mode.
