Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Keep these instructions in a safe place for future reference
V 07/13

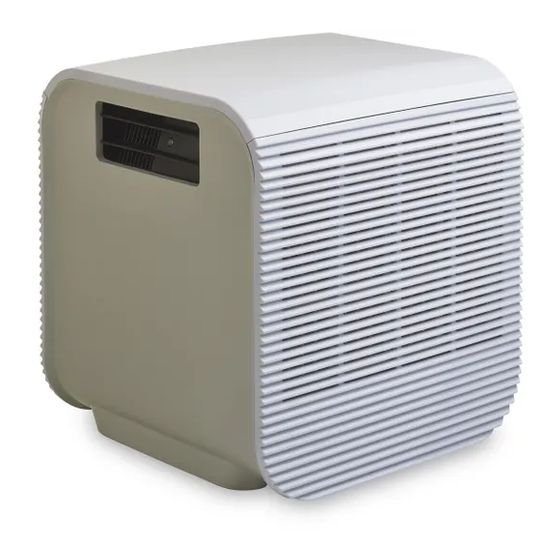

LOCAL AIR CONDITIONER
dados 40
OPERATING INSTRUCTIONS
.
EN
1
Advertisement
Table of Contents
Related Manuals for Argo dados 40
Summary of Contents for Argo dados 40
- Page 1 LOCAL AIR CONDITIONER dados 40 OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference...
- Page 2 GENERAL OPERATING AND SAFETY INSTRUCTIONS This appliance is a portable air-conditioner, designed for domestic use. Only use this air-conditioner as described in this manual. Ensure that the required voltage and frequency (220-240V/50Hz) match the available power source. ...
-
Page 3: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE FRONT VIEW - SIDE FOR COOLING, DEHUMIDIFYING, FAN MODES CONTROL PANEL - FUNCTION BUTTONS FOR OPERATION WITHOUT REMOTE (13) CONTROL TERMINAL CONNECTOR OF THE AIR EXPULSION TUBE AIR EXPULSION TUBE REMOTE CONTROL RECEIVER COOL AIR OUTLET (COMPLETE WITH AIR LOUVERS ) (11) 8) INLET GRILLES... -
Page 4: Appliance Start-Up
APPLIANCE START-UP Open the packaging and remove the box from above. Remove the product and the other elements supplied (illustrated in the box below). "Touch Screen" remote control Type AAA batteries for the remote control. Flat connection to be positioned between Circular connection to be positioned the air expulsion mouth and the flexible between the end of the tube and the... -
Page 5: How To Use The Appliance
HOW TO USE THE APPLIANCE This appliance can be used to Cool, Dehumidify, Fan and Heat. In changing from one mode to another, the fan continues operating but the compressor stops; the compressor starts up again 3 and a half minutes later. This delay in start-up protects the compressor from any damages. - Page 6 3. HEATING MODE Press FUNCT to select Heating until the relevant icon appears. By default, the temperature is set to 25ºC. The temperature can be adjusted between 15° and 25°C. In this way, each time the Power button is pressed, the unit switches off, the appliance saves the temperature set and when switched back on again, it will retain this setting.
-
Page 7: Remote Control Operation
REMOTE CONTROL OPERATION Insert the batteries into the remote control, respecting polarities specified. Only use type AAA or IEC R03 1.5V batteries. Remove the batteries if the remote control is not used for a month or longer. Do not attempt to recharge the batteries. Change all batteries at the same time. Do not throw batteries onto a fire, they may explode. - Page 8 (4) TEMPERATURE ADJUSTMENT BUTTON ▲▼) Increase (▲): 1) Enables the adjustment of the temperature desired in Cooling and Heating modes. 2) Each time the (▲) button is pressed, the temperature set increases by 1ºC; by holding the button pressed, the temperature increases continuously.
-
Page 9: Operation Without A Remote Control
OPERATION WITHOUT A REMOTE CONTROL If the remote control is not working or has been lost, the button on the control panel can be used. 1. "POWER" BUTTON (SWITCHING ON/FUNCTION SELECTION (Cooling/Heating/Fan/Switching off) By pressing this button consecutively on the control panel, the unit is activated, cooling mode is selected, heating mode is selected, ventilation mode is selected and finally the appliance is deactivated. - Page 10 4. Transport. If possible, transport the air-conditioner in a vertical position. If not possible, lie it on its right side; when you reach your destination, immediately return the appliance to a vertical position and wait at least 4 hours before using it to cool.
- Page 11 WARRANTY CONDITIONS This warranty is applicable for 3 years from the original date of purchase. Our goods come with guarantees that cannot be excluded under the Australia Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
