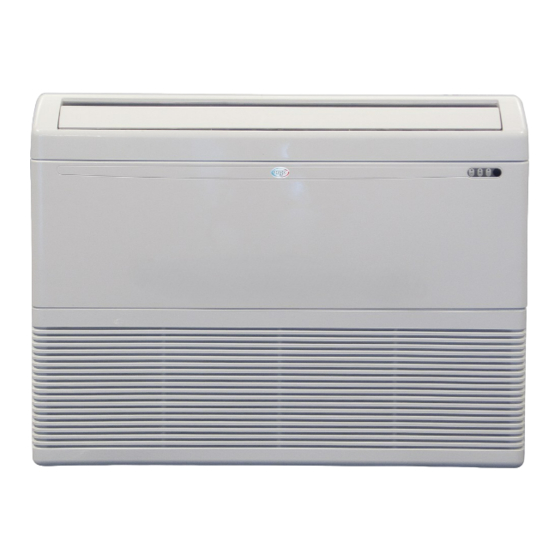

- Page 1 TECHNICAL DATA & SERVICE MANUAL INDOOR UNIT: FCIBS9 SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. FCIBS9 387005003 0.8180.601.01 09/2012...
- Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. SPECIFICATIONS 1-1 Unit specifications 1-2 Major Component specifications 1-3 Other Component specifications 2. DIMENSIONAL DATA 3. PERFORMANCE DATA 3-1 Air Throw Distance Chart 4. ELECTRICAL DATA 4-1 Electric Wiring Diagrams 5. FUNCTION 5-1 System operation control 5-2 Cool Mode Operation 5-3 Heat Mode Operation 5-4 Auto Mode Operation (only monosplit) -
Page 4: Specifications
1. SPECIFICATIONS 1-1 Unit Specifications FCIBS9 220 - 240V ~ 50Hz Power source 230 V - 50 Hz Voltage rating Performance See catalogue with the requested matching Capacity 720/615/515 Air circulation High/Med./Low m³/h Features Microprocessor/ I.C. thermostat Controls/Temperature controls Control unit... -
Page 5: Major Component Specifications
1-2 Major Component Specifications FCIBS9 Controller PCB SAC DCI IDU Part No. Microprocessor Controls 250 V - 3,15 A Control circuit fuse SAC W-REM V3 Remote Control Unit Fan & Fan Motor Centrifugal fan Type 2…. Ø 130 / L 180 Q'ty ……. -
Page 6: Other Component Specifications
1-3 Other Component Specifications Thermistor ( Coil sensor TH1) 10 ± 3% Resistance NTC-THERMISTOR Thermistor ( Room sensor ) 10 at 25 °C Resistance k... -
Page 7: Dimensional Data
2. DIMENSIONAL DATA FCIBS9 Units: mm... -
Page 8: Performance Data
3. PERFORMANCE DATA 3-1 Air Throw Distance Chart FCIBS9 Floor Mounted Ceiling Mounted... -
Page 9: Electrical Data
4. ELECTRICAL DATA 4-1 Electric Wiring Diagram... -
Page 10: Function
5.FUNCTION 5-1 System operation control The inputs to the systems come from indoor and outdoor sensors. The outdoor unit is the system MASTER while the indoor one is the SLAVE. Communication between units is made with a 2 poles RS485 bus The indoor units receives the user input (fan speed, flap position etc) through remote controller which sends signal every time a button is pressed and in any case, automatically, every 5 minutes. -
Page 11: Cool Mode Operation
5-2 Cool Mode Operation In Cooling Mode, the operation of the compressor (CM), Outdoor Fan (FMO) and Indoor Fan (FMI) are determined by: 1) the difference between the room air temperature (RAT) and the set point temperature (SPT) 2) the protection level at which the system is operating 3) the thermal load in the room NOTES In addition to the temperature difference of above, the operation of the main components (CM, FMO,... -
Page 12: Auto Mode Operation (Only Monosplit)
5-4 Auto Mode Operation (only monosplit) In Auto Mode, the unit switches automatically between the Auto Cooling and Auto Heating in order to maintain the room temperature (RAT) at the prescribed set point (SPT). The switching between the two modes is according to the above graph and following table COOLING --->... -
Page 13: Dry Mode Operation
5-5 Dry Mode Operation Dry operation remove moisture from indoor air running, in cooling mode, at a low level without reducing the ambient temperature. This is done cycling ON and OFF indoor and outdoor units according to below. ROOM DRY LEVEL TEMP ≥... -
Page 14: Forced-Made
5-8 Forced Mode In this mode the system operates (COOLING or HEATING mode – fixed settings) or is switched off by means of the MODE button on the indoor unit control board. The operation modes can be selected pressing the button in a cyclic way (OFF COOL HEAT OFF…). The settings are: COOLING mode SET POINT temperature = 25°C FAN SPEED = HIGH... -
Page 15: Protection Operation Outdoor Unit
5-10 Protection operations on outdoor unit 5-10.1 Overheating During cooling operation as soon as the outdoor coil temperature (OCT) increases, compressor speed is reduced in order to avoid heat exchanger overheating. System stops compressor operation when OCT reaches 60 °C 5-10.2 Compressor discharge temperature During operation, as soon as the discharge temperature increases, (CDT) compressor speed is reduced in order to avoid overheating of the motor. -
Page 16: Defrost
5-11 Defrost The defrost process is controlled by a detection algorithm designed in order to mantain optimal utilization of the heat pump capacity especially during negative outdoor temperature conditions. • Compressor speed fixed • Expansion valve opening fixed • Outdoor fan switched off •... -
Page 17: Night Function
5-14 NIGHT Function When this setting is active indoor fan speed is automatically reduced in order to allow low noise operation.Temperature control acts in the same way as NORMAL MODE but after 60 minutes of operation the air conditioner modifies automatically the set-point temperature according to the following: •COOLING/DRY: +1°C •HEATING: - 2°C... -
Page 18: Diagnostic
5-17 Diagnostic With this feature is possible to have a visual signal that a trouble is occurring. This mode is always active and the signalling is made through the display board LEDS In case of no troubles the LEDS status follows its normal function. The detected troubles are showed to the user/technician using the 3 leds of the indoor unit receive and the 5 leds on the outdoor pcb. -
Page 19: Indoor Unit Jumpers Configuration
5-18 Indoor Unit Jumpers Configuration Unit is shipped with jumpers set according to the following table: JUMPER STATUS open open 5-19 Outdoor Unit Jumpers Configuration Unit is shipped with jumpers set according to the following table: JUMPER STATUS open closed open 5-20 Contacts for Building Automation 5-20.1 Input Contact (J11 - green) -
Page 20: Indoor Unit And Remote Control Address
6. INDOOR UNIT AND REMOTE CONTROL ADDRESS 6-1 Address Switches (only for multisplit) INDOOR UNIT A INDOOR UNIT B Check that the setting of switches SW1 and SW3 (on the pcb) Set the switches SW1 and SW3 (on the pcb) and dip switch of remote control correspond to the figure: and dip switch of remote control as shown in the figure: indoor unit PCB... -
Page 21: Troubleshooting
TROUBLESHOOTING 7-1 CHECK BEFORE AND AFTER «TROUBLESHOOTING» (A) Check power supply wiring. • Check the power supply wires are correctly connected. (B) Check power supply. • Check that voltage is in specified range (±10% of the rating). • Check that power is being supplied. •... -
Page 22: System Does Not Run
SYSTEM DOES NOT RUN. 2 - IN INDOOR UNIT THERE IS ONE LED ON AT LEAST AND THE UNIT RECEIVES THE REMOTE CONTROL SIGNAL Reduce the set point Is the set point temperature in temperature cooling mode or appropriate increase the set point in heating mode Is the unit in protection mode?(see par. - Page 23 SYSTEM DOES NOT RUN. 3- IN INDOOR UNIT THERE IS ONE LED BLINKING AT LEAST For the meanings of the faults, see paragraph 5.17 TEMPERATURE FAULT ON THE COMMUNICATION SENSOR DAMAGED OUTDOOR UNIT ERROR Is the Replace fuse communication Check sensor 100mA fuse blown? connection and...
-
Page 24: Outdoor Unit Does Not Run And No Fault Is Displayed
OUTDOOR UNIT DOES NOT RUN AND NO FAULT IS DISPLAYED ONLY OUTDOOR UNIT IS OFF... -
Page 25: Fault On Outdoor Unit
FAULT ON OUTDOOR UNIT IN OUTDOOR UNIT THERE IS ONE LED BLINKING AT LEAST For the meanings of the faults, see paragraph 5.17 FAULT TEMPERATURE COMPRESSOR/FAN ON THE COMMUNICATION SENSOR OVERCURRENT/ PFC FAULT INDOOR ERROR DAMAGED OVERTEMPERATURE UNIT Check sensor See section 7.3 connection Measure the... -
Page 26: Air Conditioner Operates, But Abnormalities Are Observed
AIR CONDITIONER OPERATES, BUT ABNORMALITIES ARE OBSERVED. 1-POOR COOLING OR HEATING Check the remote Try with Receiver PCB assy Does the indoor unit controller settings. another assy may be may be receive the signal? See address remote defective defective chapter 6 controller Is the remote controller Change the... - Page 27 AIR CONDITIONER OPERATES, BUT ABNORMALITIES ARE OBSERVED. 2 - OPERATION DOES NOT SWITCH FROM HEAT TO COOL AND FROM COOL TO HEAT Remote controller Receiver assy Check the connection Check resistance of unit may be defective may be defective of reversing valve coil reversing valve coil...
-
Page 28: Noise Problem
NOISE PROBLEM... -
Page 29: Checking Eletrical Components
8. CHECKING ELETRICAL COMPONENTS 8-1 Measurement of Insulation Resistance The insulation is in good condition if the resistance exceeds 1 Mohm a) Power Supply Wires Clamp the earthed wire of the power supply wires with the lead clip of the insulation resistance tester and measure the resistance by placing a probe on either of the power wires (fig.1). - Page 30 Via Varese, 90 - 21013 Gallarate - Va - Italy Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.com...
