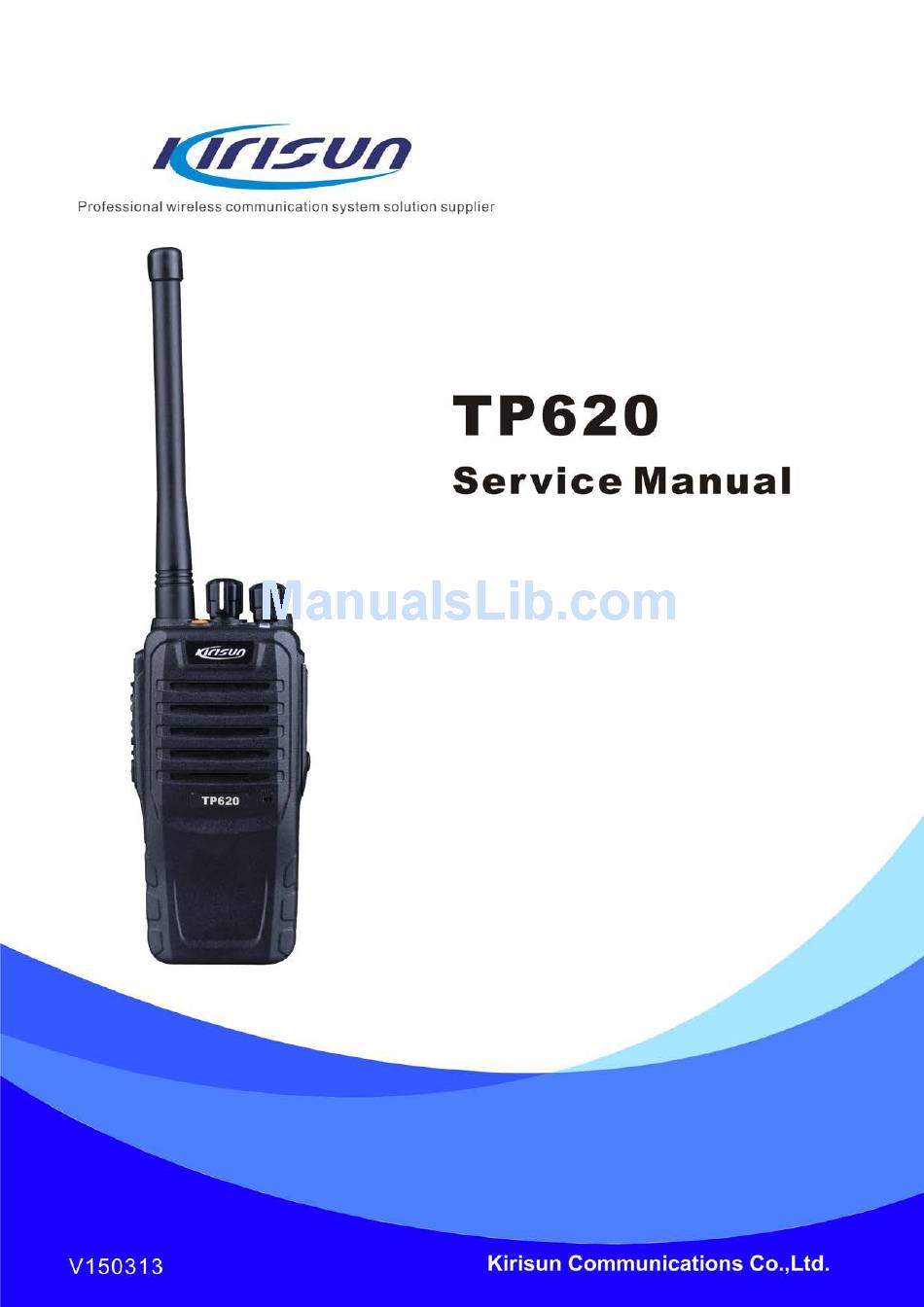

  • Page 1 TP620 Service Manual...

  • Page 2: Table Of Contents

    List 2 Material List (Electronic Section 136-174MHz) ..................... 35 List 3 Material List (structure material) ........................46 Figure 1 TP620 Main Board Top Side PCB View(400-470MHz) ................48 Figure 2 TP620 Main Board Bottom Side PCB View(400-470MHz) ............... 48 Figure 3 TP620 Main Board Top Side PCB View(136-174MHz) ................49 Figure 4 TP620 Main Board Bottom Side PCB View(136-174MHz) ...............

  • Page 3: Overview

    1. Overview 1.1. Scope This manual applies to the service and maintenance of TP620 digital portable radios, and it is intended for use only by engineers and professional technicians trained by Kirisun. Data changes in this manual may occur with the improvement of technology. To get the latest technology information, please contact us or your local dealer.

  • Page 4: Introduction

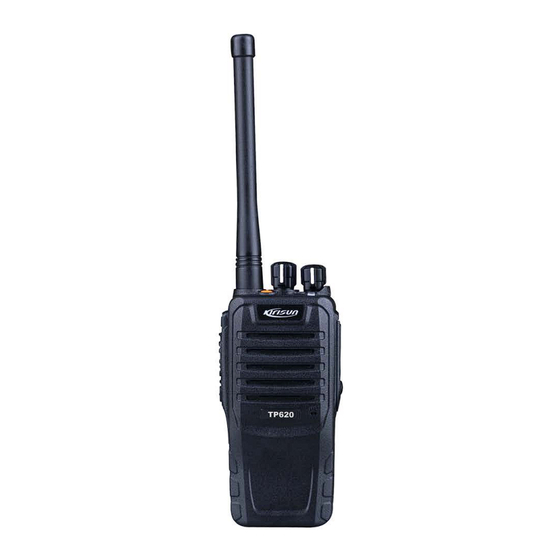

    TP620 Service Manual 2. Introduction 2.1. External Views and Functional Keys Part Name Part Name LED Indicator Power/Volume Switch Channel Switch PTT(Push-To-Talk) Side Key 1(Programmable Key) Side Key 2(Programmable Key) Top Key (Programmable Key) Speaker/Microphone Interface 2.2. LED Indicator • The LED glows red: The radio is transmitting.

  • Page 5: Circuit Description

    TP620 Service Manual 3. Circuit Description 3.1. Tx/Rx Signal Procedure Figure 3-1 RF Schematic Diagram U103 U201 Q504 2SC3356 Q503 2SC3356 Q502 RD01 Q501 RD07 NJM2100 HR_C5000 TX/RX Buffer CODEC Pre-driver driver Final D501 D503 MOD_I TX VCO D504 Loop...

  • Page 6: Rx Circuit

    TP620 Service Manual signal can be offered to the last power amplifier (Q501 RD07) for final power amplification. After being processed by a set of amplifiers at several levels, the Tx signal will complete the output impedance match through a microstrip line at the output terminal of the last power amplifier, through which the output power loss caused by impedance mismatch can be avoided.
  • Page 7 TP620 Service Manual • Rx Circuit RF Part The high frequency signal from low-pass filter passes the front stage electrically tunable band-pass filter controlled by electric level and output by DAC (U301 PIN29) so as to filter out the out-of-band interference signal, sending effective band-pass signal into the low noise amplifier (Q505).

  • Page 8: Frequency Synthesizer Circuit

    TP620 Service Manual 3.1.3. Frequency Synthesizer Circuit Figure 3-4 Frequency Synthesizer Circuit Diagram MOD_I TX VCO U601 Loop DATA 2SK72310 Filter RX VCO 16.8MHz TCXO X601 MOD_Q Frequency synthesizer circuit is composed of VCO and PLL, and it is the kernel module of the whole TRx system.

  • Page 9: Power Section

    TP620 Service Manual 3.2. Power Section Figure 3-5 Power Structure Diagram RF PA AF PA Q401 U404 SAVE U403 SW401 U402 Q402 3.3V Battery U401 DC-DC U301 STM32F This radio applies 7.4V, 2000mAh lithium battery, RF power amplification (Q501, Q502), AF power amplification (IC101), and direct battery power supply.

  • Page 10: Function Description And Parameter Settings

    • Steps for parameter settings are as below: Step 1. Confirm that the right version of TP620 user programmable software is installed on the computer. Step 2. Confirm that the right version of TP620 USB driver software is installed on the computer.
  • Page 11 TP620 Service Manual • Steps for installing TP620 user programmable software are as below: Step 1. Double click the installation file, and the interface in Figure 4-1 will pop up. Figure 4-1 Step 2. Click “Next” to enter the next interface for selecting software installation path.
  • Page 12 TP620 Service Manual Step 4. Click “Next” to enter the installation completion interface. Figure 4-3 Step 5. Click “Finish” to complete the software installation. Figure 4-4 Page 10 of 61...

  • Page 13: Assemble And Disassemble Instructions

    Step 6. After the installation, double click TP620 user programmable software. (See figure 4-5) Figure 4-5 The user can read the current parameter settings from the radio through TP620 user programmable software, and the parameter configuration can also be modified before writing the parameters into the radio.

  • Page 14: Attaching The Antenna

    TP620 Service Manual Figure 5-1 Detaching the battery When detaching the battery, press the latch downwards in the direction ①, and use other hand to push the battery in the direction ② until it is removed from the radio. Figure 5-2 5.2.

  • Page 15: Attaching The Speaker /Microphone

    TP620 Service Manual 5.3. Attaching the Speaker /Microphone Open the microphone cover board and plug the speaker or microphone into the corresponding interface. （See figure 5-4） Figure 5-4 5.4. Attaching the Belt Clip Step 1. Press the belt clip and align the two screw holes with those on the back aluminum shell. (See figure 5-5) Step 2.

  • Page 16: Separating The Aluminum Shell From The Main Board

    TP620 Service Manual Step 3. Remove the three nuts which fix the antenna connector and switch. Step 4. Rotate loose the screws on both sides of the shell and the two screws which fix the aluminum shell. Step 5. Use a tool to pry up the aluminum shell and push it backwards to separate the shell from the chassis.

  • Page 17: Exploded View

    TP620 Service Manual 5.7. Exploded View Part No. Part Name Specification Quantity Silicone gel (highly-elastic), PT7800 major 7MHR-7069-04A-W0 black, hardness 40 waterproof ring degrees,pb-free PT7800 roof Silicone gel, orange, hardness 7MHR-7069-05A-W3 waterproof ring 60 degrees,pb-free Hardened iron,Φ2mm*4mm,cross flat 7SMF-020040M-SZYB Machine screw /M2.0*4.0...
  • Page 18 TP620 Service Manual 7MHP-7210-03A-W0 PT567 channel knob ABS, black,pb-free,texture 7MHS-1140-01A-W 3208 knob calorific Spring steel Brass,internal diameter M6mm, 7NRC-060100035-B1 external diameterφ10mm, Switch nut thickness 3.5mm, black passivation internal diameter M9mm, external diameterφ11mm, 7NRC-090110025-W1 Antenna nut thickness 2.5mm, no surface processing...

  • Page 19: Adjustment And Test

    TP620 Service Manual microphone cloth 0.1mm, one side glue Silicone gel, hardness 40 7MHR-1727-09A-W3 558 microphone case degrees,orange, no surface process PT7800 aluminum Aluminum alloy (ADC12), 7MHL-7069-01A-W bracket ground, polish,pb-free M2*8 club size Hardened 7SMF-020080M-MHH iron,Φ2mm*8mm,metric coarse thick-headed machine T-N1...

  • Page 20: Test Tools

    TP620 Service Manual 6.2.2. Test Tools • Integrated tester • Programming lead • AEROFLEX 3920 • Spectrum analyzer FSU 6.2.3. Tx Test and Modulation Specification Item Steps Requirement 1. Enter computer tuning mode. 2. Enter “RF stability adjustment”. Frequency ≤0.5ppm 3.
  • Page 21 TP620 Service Manual 1. Enter computer tuning mode. 2. Enter “digital Tx I path amplitude and Q path amplitude”. 3. Click digital adjustment item, and adjust Q path (see figure 6) I path and Q to adjust the digital frequency deviation in the range between path 1.9KHZ and 2KHZ;...

  • Page 22: Rx Test And Modulation

    TP620 Service Manual 6.2.4. Rx Test and Modulation Specification Item Steps Requirement 1. Enter the computer tuning mode. 2. Enter the tuning mode ”Rx sensitivity”, click frequency 1,3,5,7,9 one by one. RF Rx SINAD>=12dB 3. Observe the integrated tester spectrum analyzer property,...

  • Page 23: Technical Functions And Specifications

    TP620 Service Manual Rx SNR Observe SNR form value. Decoded CTCSS/CDC successfully and SS Decoding no interrupter 1. Set the output of 3920 as -118dBm. EER≤5% BER Test 2. Enter bit error rate test item; click start and observe bit error rate.
  • Page 24 TP620 Service Manual Damp proof MIL-STD-810 C/D/E/F/G Shock and Oscillation MIL-STD-810 C/D/E/F/G Receiver Specification Frequency Stability ±2.5ppm 0.35μV /-116dBm(12 dB SINAD) Analog Rx Sensitivity 0.22μV /-120dBm Digital Rx Sensitivity Intermodulation ETSI：65dB TIA603：70dB Adjacent Channel ETSI/TIA603：60dB@12.5kHz,70dB@25kHz Selectivity Spurious Response ETSI/TIA603：70dB Suppression...

  • Page 25: Maintenance And Test Equipment

    TP620 Service Manual 12.5kHz（only data） ：7K60FXD 4FSK Modulation 12.5kHz（data + voice） ：7K60FXE Modulation Limit 2.5kHz@12.5KHz, 5kHz@25kHz Audio Response +1dB~-3dB Audio Distortion 3％（typical） Vocoder Type AMBE++ Digital Communication ETSI TS 102 361-1, -2, -3 Protocol 8. Maintenance and Test Equipment During maintenance and adjustment, the major equipment and apparatus below will be used.

  • Page 26: Troubleshooting

    TP620 Service Manual Voltage Stabilizing Output Voltage 5V-30V, Current: 5A Power 9. Troubleshooting Problem Cause and Solution A．Check if the battery is in low power. If the battery is low, please charge it or change it. B． Check if there is poor contact in the power-on knob. Please change the knob and try again.

  • Page 27: Appendix

    TP620 Service Manual Appendix List 1 Material List (Electronic Section 400-470MHz) Part No. Specification Quantity Location 2RW3-TP76 TP76N97N15FB103/RY-10 N97N15FB1 SW100 005,TOCOS,pb-free 3SE3-RE08 RE08140AX-V01-0015A :IP SW200 140AX-V01 Φ6.0mm, height 4SM7-6027- 2.7mm,-40dB±2dB,,2.2KΩ, MIC600 A40B 2V(B6027AP402-65) 2LG1-VLS3 VLS3012ET-100M,10uH+2 012ET-100 L404 0% 3*3*1.2MM 3225,1μH±20%,(LQH32MN...
  • Page 28 TP620 Service Manual 2LG1-VLS3 VLS3012ET-470M 012ET-470 L203 470uH+20% 3*3*1.2MM 5XC1-8R0- DSX321G-8MHZ,8MHZ±30 MML08-253 PPm,8PF,-40℃~+85 X301 ℃,2.5mm*3mm,4PIN DC-DC 1IS1-LN825 IC,SMD,SOP8,DC23V1.8A, U401 ,LN8259,pb-free SKY72310,24 pin QFN 1IS1-SKY72 4mmX4mm U601 （QFN-N24_B4x4-P0_5）, pb-free 3ST1-SKRT SKRTLBE010,4.5*3.55*3.3 SW301 LBE010 mm(ALPS) 1IP1-HRV30 HR_V3000S, U307 1TT1-AT415 SOT143-EEBC-B3X1_4-P1 Q505 7MHP-7042-...
  • Page 29 TP620 Service Manual C597,C644,C646,C654,C655,C672, C675,C691,C695,C713,C718,C724 C115,C117,C130,C133,C135,C160, C225,C226,C230,C232,C235,C239, C240,C252,C264,C267,C273,C274, C285,C290,C305,C306,C307,C310, C311,C320,C338,C346,C350,C360, 2CC1-10-X7 C361,C362,C405,C406,C577,C734, 1005,100nF±10%,16V,X7R R160-104K C258,C260,C170,C171,C407,C413, C416,C428,C432,C435,C438,C520, C532,C547,C548,C551,C552,C559, C571,C583,C595,C596,C610,C613, C615,C627,C630,C637,C638,C663, C665,C676,C682,C690,C709 C114,C118,C119,C120,C121,C129, C132,C134,C136,C137,C138,C146, C149,C163,C190,C224,C238,C249, 2CC1-10-X5 C250,C269,C271,C279,C281,C283, 1005,1uF±10%,6.3V,X5R R6R3-105K C308,C337,C340,C343,C344,C352, C412,C415,C419,C445,C666,C674, C680,C683,C685,C692,C710,C712, C205,C417,C722 2CC1-10-C0 1005,10P±0.5P,50V,C0G C231,C635,C636,C716,C404 G500-100D 2CC1-10-C0 1005,120P±5%,50V,C0G C550 G500-121J 2CC1-10-X7 1005,12nF±10%,25V,X7R...
  • Page 30 TP620 Service Manual 2CC1-10-X7 1005,270P±10%,50V,X7R C263,C265,C266,C268,C704 R500-271K 2CC1-10-C0 1005,2P±0.25P,50V,C0G C524,C527,C689 G500-2R0C 2CC1-10-C0 1005,180P±5%,50V,C0G C645 G500-181J 2CC1-10-X7 1005,3300P±10%,50V,X7R C295,C296,C640,C687 R500-332K 2CC1-10-C0 1005,33P±5%,50V,C0G C518,C545,C579,C647 G500-330J 2CC1-10-X7 1005,3900P±10%,50V,X7R C335 R500-392K 2CC1-10-X7 1005,39nF±10%,10V,X7R C127 R100-393K 2CC1-10-C0 1005,3P±0.25P,50V,C0G C515,C528,C699 G500-3R0C C106,C554,C553,C101,C113,C164, C165,C166,C172,C253,C442,C521, C533,C538,C560,C561,C562,C563, 2CC1-10-C0 C566,C570,C572,C573,C578,C582, 1005,470P±5%,50V,C0G...
  • Page 31 TP620 Service Manual 2CC1-20-Y5 2012,10uF+80%/-20%,16V, C104,C148,C228,C236,C291 V160-106Z 2CC1-20-Y5 2012,2.2uF+80%/-20% ,16 C437 V160-225Z V,Y5V 2CC1-16-C0 1608,10P±0.5P,50V,C0G C606,C623, C604 G500-100D 2CC1-16-C0 1608,120P±5%,50V,C0G C507 G500-121J 2CC1-16-C0 1608,12P±5%,50V,C0G C592,C601,C620 G500-120J 2CC1-16-C0 1608,15P±5%,50V,C0G C587,C588,C590,C625 G500-150J 2CC1-16-C0 1608,18P±5%,50V,C0G C605,C624 G500-180J 2CC1-16-C0 1608,1.5P±0.1P,50V,C0G C503 G500-1R5B 2CC1-16-C0 1608,30P±5%,50V,C0G...
  • Page 32 TP620 Service Manual V100-226Z Y5V(C3216Y5V1A226ZT) 3CF1-BL112 0.5mm,14PIN,BL112-14RL CN101 -14RL 5XC1-50R0- 1D49910GQ9 49.95MHz XF501 49910GQ9 7*5 KDS 1DS1-HSC2 HSC277,1608 D503,D504,D510,D511 1DS1-DA2S DA2S10100L D403,D404,D601 10100L 1DV1-1SV2 1SV278(T1) D610 1DV1-1SV3 D602,D603,D604,D605,D606,D607, 1SV305 D608,D609 1DV1-HVC3 HVC350B(B0),SOD523 D505,D506,D507,D508,D513 1TT1-DTC1 Q102,Q202,Q203,Q206,Q301,Q302, DTC144EE(26),SOT323 44EE Q402,Q201,Q510 3FW1-4293 429003/433003/466003,32...
  • Page 33 TP620 Service Manual 2LW1-16UC 1608,33nH±5%,(C1608CB- L612,L620 -330J 33NJ) 2LL1-16-33 1608,33nH±5%(MLG1608B L617,L625 33NJ) 2LI1-1608-R 0603,390nH±2% murata L611,L614,L615,L616,L619,L622,L6 LQW18ANR39G00 23,L624 2LL1-16-82 1608,82nH±5%(MLG1608B L509 82NJ) L101,L102,L202,L208,L401,L528,L5 5FE1-BLM1 1608,BLM11A601S/BLM18 31,L603,L610,L630,L631,L632,L104, 1A601S AG601S(0138-05) L402,L600 2LI1-2012-1 0805,10nH±5% murata L613 LQW2BHN10NJ032 2LI1-2012-1 0805,15nH±5%,murata,LQ L621 W2BHN15NJ032 2012,1μH±5%(C2012C-1R 2LW1-20UC...
  • Page 34 TP620 Service Manual 1TT1-FMMT FMMT717A,PNP,SOT23 Q401 717TA 1IS1-PST91 RESET IC,PST9124NR U303 24NR 2RS1-10-00 1005,0Ω R160,R320,R334,R263,R647 R107,R113,R114,R118,R121,R128, R129,R133,R154,R244,R310,R402, 2RS1-10-10 1005,100K±5% R418,R501,R502,R503,R504,R510, R513,R581,R599,R644,R645,R650, R651,R659,R161,R162 2RS1-10-10 R517,R518,R604,R614,R627,R629, 1005,100Ω±5% R642,R643,R571 R638,R115,R117,R132,R135,R150, R151,R231,R232,R233,R234,R240, 2RS1-10-10 R259,R262,R266,R267,R268,R306, 1005,10K±5% R311,R313,R321,R342,R360,R361, R419,R422,R549,R631,R632,R637, R652 2RS1-10-10 R229,R269,R270,R528,R609,R630, 1005,10Ω±5% R634 2RS1-10-12 1005,120Ω±5%...
  • Page 35 TP620 Service Manual 2RS1-10-10 1005,1M±5% R141 2RS1-10-20 1005,200K±5% R401 2RS1-10-22 1005,220K±5% R131,R147,R243,R606 2RS1-10-22 1005,220Ω±5% R315 2RS1-10-22 R111,R125,R148,R336,R340,R425, 1005,22K±5% R539,R574,R615 2RS1-10-22 1005,22Ω±5% R106,R120,R543,R548 2RS1-10-27 1005,270K±5% R145 2RS1-10-27 1005,270Ω±5% R568,R556,R595 2RS1-10-27 1005,27K±5% R524,R569,R701 2RS1-10-22 R258,R341,R406,R515,R570,R540, 1005,2.2K±5% R541 2RS1-10-27 1005,2.7K±5% R156 2RS1-10-33 1005,330K±5%...
  • Page 36 TP620 Service Manual 2RS1-10-56 1005,560K±5% R519,R641 2RS1-10-56 1005,56K±5% R511,R514 2RS1-10-56 1005,56Ω±5% R636 2RS1-10-56 R139,R140,R505,R575,R601,R611, 1005,5.6K±5% R616 2RS1-10-68 1005,68K±5% R137,R410,R622 2RS1-10-68 1005,6.8K±5% R506,R546 2RS1-10-75 1005,750K±5% R529 2RS1-10-82 1005,820K±5% R116 2RS1-10-82 1005,820Ω±5% R152 2RS1-10-82 1005,82K±5% R130,R553 2RS1-10-82 1005,8.2K±5% R536,R538 2RS1-10-91 1005,9.1K±5% R649 2RS1-32-R3 3216,0.39Ω±5%...

  • Page 37: List 2 Material List (Electronic Section 136-174Mhz)

    TP620 Service Manual -UHF-V2.0-20140610,108.6 6X46.8mm 2RS1-10-15 1005,1.5M±5% R567,R566 2RS1-10-4R 1005,4.7Ω±5% R507,R598 2LL1-16-18 1608,18nH±5%(MLG1608B L533 18NJ) 2CC1-10-C0 1005,6P±0.5P,50V,C0G C530 G500-6R0D 2CC1-10-C0 1005,1P±0.25P,50V,C0G C608 G500-1R0C 2CC1-10-C0 1005,68P±5%,50V,C0G C648 G500-680J 1TT1-DTA1 DTA143ZE-SMD Q511 43ZE 2CC1-10-C0 1005,3P±0.1P,50V,C0G C508 G500-3R0B 2RS1-10-56 1005,560Ω±5% R157 2RE1-10-15 1005,150KΩ±1%...
  • Page 38 TP620 Service Manual L/LQH3N1R0M04) 1XTV16800CFA 5XC1-16R8- 16.8MHz 3225 VC-TCXO X601 6800CFA 1DR1-1SR1 1SR154-400,4532 D402 54-400 1DS1-1SS3 Dual diode D101,D114,D115 1XTW29491CAA 5XC1-29R5- 29.4912MHz 3225 TCXO X201 29491CAA 1TT1-2SA15 2SA1586 Q105 1TT1-2SC3 2SC3356-R24,SOT23,NPN Q503,Q504,Q507,Q509,Q601,Q603 356-R24 1TT1-2SC4 2SC4116-GR Q103 116-GR 1TF1-2SJ24 2SJ243-SMD Q101,Q607 1TF1-SSM3 SSM3K15AFS（D1）...
  • Page 39 TP620 Service Manual 1DP1-BV08 BV08C D110,D116,D117,D118,D119,D121 2CC1-10-C0 1005,0.5P±0.25P,50V,C0G C609 G500-R50C 2CC1-10-C0 1005,1P±0.25P,50V,C0G C608 G500-1R0C C152,C153,C154,C157,C158,C159, 2CC1-10-C0 1005,100P±5%,50V,C0G C524,C529,C653,C656,C657,C658, G500-101J C659,C678,C681,C519 C105,C125,C233,C248,C256,C287, C314,C315,C404, 2CC1-10-X7 C410,C517,C523,C555,C580,C584, 1005,1000P±10%,50V,X7R R500-102K C594,C639, C649,C684,C690,C711,C720,C805, C806 C102,C126,C131,C141,C142,C144, C145,C177,C178,C191, 2CC1-10-X7 C201,C202,C227,C237,C257,C270, 1005,10nF±10%,50V,X7R R500-103K C272,C276,C278,C282, C284,C312,C313,C316,C317,C318, C319,C339,C341,C345, C115,C117,C130,C133,C135,C160, C225,C226,C230,C232,...
  • Page 40 TP620 Service Manual C680,C683, C685,C692,C710,C712 2CC1-10-C0 C231,C635,C636,C700,C807,C528, 1005,10P±0.5P,50V,C0G G500-100D C527,C728,C515 2CC1-10-C0 1005,120P±5%,50V,C0G C550 G500-121J 2CC1-10-X7 1005,12nF±10%,25V,X7R C124 R250-123K 2CC1-10-C0 1005,12P±5%,50V,C0G C660,C661,C542,C574,C633,C725 G500-120J 2CC1-10-X7 1005,15nF±10%,50V,X7R C332,C686 R500-153K 2CC1-10-C0 1005,15P±5%,50V,C0G C564,C618,C731,C513,C516 G500-150J 2CC1-10-C0 1005,180P±5%,50V,C0G C645 G500-181J 2CC1-10-X7 1005,18nF±10%,50V,X7R C139,C333,C336,C677 R500-183K 2CC1-10-C0 1005,18P±5%,50V,C0G...
  • Page 41 TP620 Service Manual C533,C538,C560,C561,C562,C563, C566,C570,C572,C573, C578,C582,C598,C611,C612,C616, C619,C628,C629,C634, C662,C667,C669,C670,C673,C693, C707,C719,C554,C553,C106 2CC1-10-X7 1005,47nF±10%,16V,X7R C705 R160-473K 2CC1-10-C0 1005,47P±5%,50V,C0G C147,C518,C581,C643 G500-470J 2CC1-10-C0 1005,4P±0.25P,50V,C0G C801 G500-4R0C 2CC1-10-C0 1005,56P±5%,50V,C0G C708,C727,C729,C730 G500-560J 2CC1-10-C0 1005,5P±0.25P,50V,C0G C575,C698 G500-5R0C 2CC1-10-X7 1005,6800P±10%,16V,X7R C170,C171 R160-682K 2CC1-10-X7 1005,68nF±10%,16V,X7R C122 R160-683K 2CC1-10-C0 1005,68P±5%,50V,C0G C648...
  • Page 42 TP620 Service Manual G500-150J 2CC1-16-C0 1608,18P±5%,50V,C0G C605,C624 G500-180J 2CC1-16-C0 1608,8P±0.25P,50V,C0G C620，C508 G500-8R0C 2CC1-16-C0 1608,33P±5%,50V,C0G C626 G500-330J 2CC1-16-C0 1608,20P±5%,50V,C0G C502 G500-200J 2CC1-16-C0 1608,30P±5%,50V,C0G C592 G500-300J 2CC1-16-C0 1608,56P±5%,50V,C0G C587 G500-560J 2CC1-16-C0 1608,3P±0.25P,50V,C0G C590 G500-3R0C 2CC1-16-C0 1608,39P±5%,50V,C0G C607,C588 G500-390J 2CC1-16-C0 1608,27P±5%,50V,C0G C504 G500-270J 2CC1-16-C0 1608,7P±0.5P,50V,C0G...
  • Page 43 TP620 Service Manual 1DV1-1SV2 1SV278(T1) D610 1DV1-HVC3 HVC350B(B0),SOD523 D602,D603,D608,D609 1DV1-HVC3 HVC362 D505,D506,D507,D508,D513 1DV1-HVC3 HVC376B(B9) D604,D605,D606,D607 1TT1-DTC1 Q102,Q201,Q202,Q206,Q301,Q302, DTC144EE(26),SOT323 44EE Q402,Q510 3FW1-4293 429003/433003/466003,32 F401 2-302320 16,3A/32V 1608,3.3μH±10%(MLF1608 2LL1-16-3R L601 A3R3K TA00) 1608,0.47μH±10%(MLF160 2LL1-16-R4 L514,L608 8DR47K) 2LL1-16-R5 1608,560nH±10%(MLF160 L513,L607 8DR56K) 5XT1-JTBM Frequency detector...
  • Page 44 TP620 Service Manual 08B4N7S) 2LW1-16UC 1608,27nH±2%,(C1608CB- L612 -270G 27NG) 2LL1-16-56 1608,56nH±5%(MLG1608B L508 56NJ) 2LL1-16-68 1608,68nH±5%(MLG1608B L518,L519 68NJ) 2LL1-16-82 1608,82nH±5%(MLG1608B L617,L625 82NJ) 5FE1-BLM1 1608,BLM11A601S/BLM18 L101,L102,L202,L208,L401,L528,L5 1A601S AG601S(0138-05) 31,L603,L610,L629,L630,L631,L632 2LW1-20UC 2012,15nH±5%,(C2012C-1 L621 -150J 5NJ) 2LW1-20UC 2012,27nH±2%,[(HWI0805 L613 -270GA UC27NG) 2LW1-25UC 2520,1μ L521 -102JA H±5%,(FHW1008UC1R0J)
  • Page 45 TP620 Service Manual 1IL1-NJM29 NJM2904V,TSSOP-8 U502,U603 1TT1-2SC4 2SC4617-R(BR),EMT3 Q606 617-R 1TT1-2SC5 2SC5066-Y(M2),NPN,SOT Q604,Q605 066-Y 1TT1-DTA1 DTA143ZE-SMD Q511 43ZE 1TT1-FMMT FMMT717A,PNP,SOT23 Q401 717TA 1IS1-PST91 Reset IC,PST9124NR U303 24NR 2RS1-10-00 R249,R160,R320,R334,R263,R280, 1005,0Ω R281 R107,R113,R114,R118,R121,R128, R129,R133,R154,R244, 2RS1-10-10 1005,100K±5% R310,R402,R418,R501,R502,R503, R504,R510,R513,R581, R599,R645,R650 2RS1-10-10 R517,R518,R554,R604,R614,R627, 1005,100Ω±5%...
  • Page 46 TP620 Service Manual 2RS1-10-18 1005,18K±5% R134,R648 R108， R102,R149,R153,R180,R225,R236, R238,R253,R282,R301, 2RS1-10-10 1005,1K±5% R332,R351,R352,R353,R357,R358, R370,R391,R520,R530, R533,R535,R542,R545,R571,R606, R628,R680 2RS1-10-15 1005,1.5K±5% R411 2RS1-10-15 1005,1.5M±5% R567,R700 2RS1-10-10 1005,1M±5% R141 2RS1-10-24 1005,2.4K±5% R555 2RS1-10-20 1005,200K±5% R401 2RS1-10-22 1005,220K±5% R131,R147,R243,R112 2RS1-10-22 1005,220Ω±5% R315 2RS1-10-22 R111,R125,R148,R336,R340,R425, 1005,22K±5% R539,R574,R615 2RS1-10-22 1005,22Ω±5%...
  • Page 47 TP620 Service Manual 2RS1-10-33 1005,330Ω±5% R508 2RS1-10-39 1005,390K±5% R146 2RS1-10-39 1005,390Ω±5% R556,R595 2RS1-10-33 1005,3.3K±5% R142,R526 2RS1-10-39 1005,3.9K±5% R522,R617 2RS1-10-47 1005,470K±5% R136,R144,R155 2RS1-10-47 1005,470Ω±5% R104,R521,R531,R619,R640 2RS1-10-47 R122,R312,R316,R317,R318,R319, 1005,47K±5% R354,R405,R408,R550 2RS1-10-47 1005,47Ω±5% R516,R548 R338,R339,R362,R363,R412,R505, 2RS1-10-47 R523,R541,R547,R575, 1005,4.7K±5% R588,R602,R608,R612,R620,R623, R646,R658,R659 2RS1-10-56 1005,560K±5% R519,R641 2RS1-10-56 1005,56K±5%...

  • Page 48: List 3 Material List (Structure Material)

    TP620 Service Manual 2RS1-32-R3 3216,0.39Ω±5% R559,R560,R561 1IS1-GT313 GT3136,SSOP16 U501 1IS1-TC75S TC75S51F,SSOP5-P-0.95 U203 1IL1-TDA85 ,TDA8547TS,SSOP20, U204 47TS 1IL1-NJM29 NJM2902V-SMD U101,U102 1TC1-UMC4 UMC4,NPN/PNP U104,U503,U505,U604 1IS1-UPB15 UPB1509GV,SSOP U605 09GV 1IM1-W25Q W25Q80DVSIG，SOIC,8M U302 80DVSIG 1DR1-NSR1 020MW2T1 NSR1020MW2T1G D405 1IS1-XC620 3.3V,SOT-23-5,150mA U602 4B332MR 1IS1-XC620 5V,SOT-23-5...
  • Page 49 TP620 Service Manual 7MHR-7042-06B-W0 R thermally conductive silica gel pad 3CR7-SMA-50JFB-4 R RF coaxial connector for analog radio Switch nut 558 3600 7200 568 578 5200 7800 7NRC-060100035-B1A 567 7200EX 7MHL-7069-01A-W PT7800 aluminum alloy bracket 7MHF-7069-02A-W PT7800 roof cover board...

  • Page 50: Figure 1 Tp620 Main Board Top Side Pcb View(400-470Mhz)

    TP620 Service Manual Figure 1 TP620 Main Board Top Side PCB View(400-470MHz) Figure 2 TP620 Main Board Bottom Side PCB View(400-470MHz) Page 48 of 61...

  • Page 51: Figure 3 Tp620 Main Board Top Side Pcb View(136-174Mhz)

    TP620 Service Manual Figure 3 TP620 Main Board Top Side PCB View(136-174MHz) Figure 4 TP620 Main Board Bottom Side PCB View(136-174MHz) Page 49 of 61...

  • Page 52: Figure 5 Tp620 Mainboard Schematic Diagram(400-470Mhz)

    TP620 Service Manual Figure 5 TP620 Mainboard Schematic Diagram(400-470MHz) AF PROCESS CIRCUIT R131 C147 C126 C124 220K R126 C128 220P R127 R125 R124 180K 180K 150K R128 R133 100K R130 100K R129 R123 C121 R132 100K C123 C122 AF_OUT QT_DQT_IN...
  • Page 53 TP620 Service Manual A3V3 L208 BLM18AG601S C310 C311 C239 C240 C237 C291 C290 C276 C278 C279 C281 C282 C283 C284 R238 10U/10V MOD_Q C244 220P C238 DMR_VCC R236 MOD_I C241 220P A3V3 C253 C252 470P R243 220K U203 HPVCC DAC_IVOUT...
  • Page 54 TP620 Service Manual R332 R353 FPC301 R352 R351 PTT_KEY R360 C305 C306 C307 C308 C312 C313 R354 C350 TP301 JTAG_SWCLK R311 R310 100K R391 MICPOW_SW R358 EXT_PTT PA10 PA14 R357 PA15 I2S_FS ECN3 PB11 PC10 I2S_CK R312 ECN2 PB10 PC11...
  • Page 55 TP620 Service Manual POWER CIRCUT BAT7V5 BAT+ Q401 J401 F401 BATTERY-CON 3AFUSE FMMT717 R401 200K BATT BATT C401 C410 C406 C405 C403 C407 R405 C404 R402 100P D402 R406 100K 1SR154-400 POW_C Q402 DTC144EE D403 C428 MA2S111 R419 SWB+ D404...
  • Page 56 TP620 Service Manual J501 ANTENNA C503 C501 C571 C507 C505 L526 C593 D501 R543 C572 Q501 120P R545 HVU131 470P RD07MUS2B L519 22nH C580 L523 TP502 Q502 R540 L520 100P C586 C588 C589 2.7nH C587 C590 C591 RD01MUS2 C592 C574...
  • Page 57 TP620 Service Manual PLL&VCO Circuit PLL3V3 U602 XC6204B332MR C665 C667 C666 VCOVCC 470P L630 BLM18AG601S Q606 Q607 D601 2SJ243 R634 MA2S111 2SC4617(S) C654 R609 C673 C675 C685 C674 C670 C637 RXVCO_VCC R631 470P R623 470P R658 330R R630 C689 C676...

  • Page 58: Figure 6 Tp620 Mainboard Schematic Diagram(134-174Mhz)

    TP620 Service Manual Figure 6 TP620 Mainboard Schematic Diagram(134-174MHz) AF PROCESS CIRCUIT R131 C147 C126 C124 220K R127 R126 R125 R124 C128 220P 180K 180K 150K R128 R133 100K R130 100K R129 R123 C121 R132 100K C123 C122 AF_OUT QT_DQT_IN...
  • Page 59 TP620 Service Manual A3V3 L208 BLM18AG601S C310 C311 C239 C240 C237 C291 C290 C276 C278 C279 C281 C282 C283 C284 R238 10U/10V MOD_Q C244 220P C238 DMR_VCC R236 MOD_I C241 220P A3V3 C253 C252 470P R243 220K U203 C224 HPVCC...
  • Page 60 TP620 Service Manual R332 R353 FPC301 R352 R351 PTT_KEY R360 C305 C306 C307 C308 C312 C313 R354 C350 TP301 JTAG_SWCLK R311 R310 100K R391 MICPOW_SW R358 EXT_PTT PA10 PA14 R357 PA15 I2S_FS ECN3 PB11 PC10 I2S_CK R312 ECN2 I2S_RX PB10...
  • Page 61 TP620 Service Manual POWER CIRCUT BAT7V5 BAT+ J401 F401 Q401 BATTERY-CON 3AFUSE FMMT717 R401 200K BATT BATT C401 C410 C406 C405 C404 C407 R405 470P R402 D402 100K R406 1SR154-400 POW_C Q402 DTC144EE D403 C428 MA2S111 R419 SWB+ D404 MA2S111...
  • Page 62 TP620 Service Manual J501 C589 C587 C590 ANTENNA C503 C501 C507 C505 C571 L526 C593 R543 L534 L535 D501 C572 Q501 100P R545 100P HVU131 470P RD07MUS2B L519 68nH C580 TP502 L520 L523 Q502 C586 C588 C591 27nH 39nH C592...
  • Page 63 TP620 Service Manual PLL&VCO Circuit PLL3V3 U602 XC6204B332MR C667 C665 C666 VCOVCC 470P L630 BLM18AG601S Q606 Q607 D601 2SJ243 R634 MA2S111 2SC4617(S) R609 C675 C685 C673 C674 C654 C637 C670 RXVCO_VCC R631 470P R623 470P R630 C689 C676 C669 470P...
