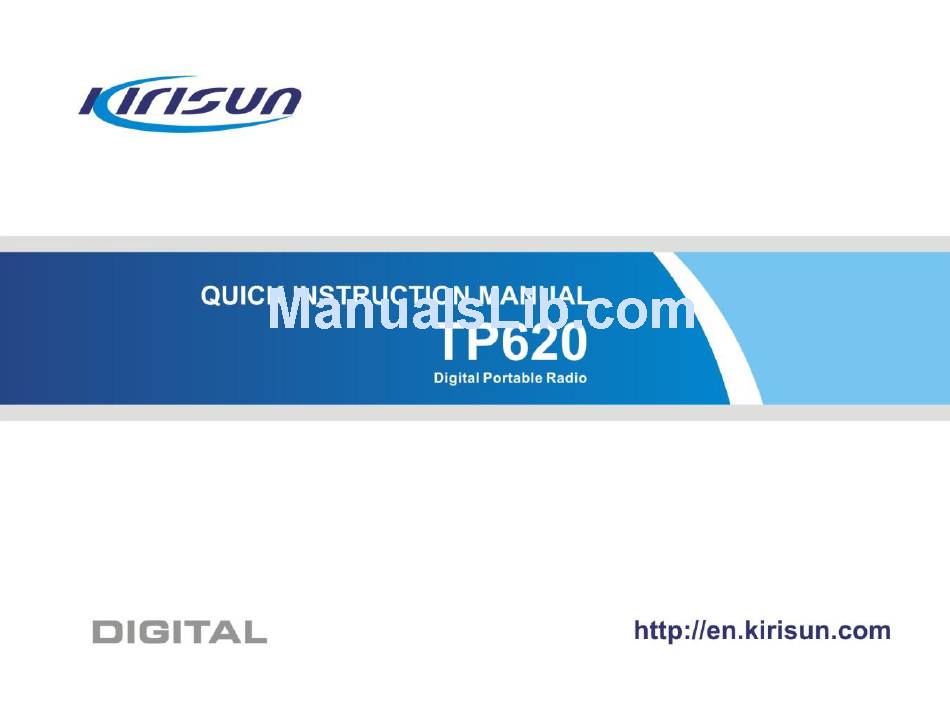

  • Page 1 TP620 Digital Portable Radio Quick Instruction Manual...
  • Page 2 Kirisun Communications Co., Ltd. We believe KIRISUN two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN two-way radio can meet your demands for reliable communication.
  • Page 3 TP620 Digital Portable Radio Quick Instruction Manual Contents ..................1 NPACKING AND HECKING ....................5 RODUCT VERVIEW ....................12 ASIC PERATION ..............ECEIVING AND ESPONDING TO THE ....................AKING A ADIO .................... ESSAGE EATURES ....................17 ROUBLESHOOTING...
  • Page 4 Declaration of Conformity CE0700! We, Kirisun Communications Co.,Ltd. 3-6Flrs, ROBETA Building, No.1, QiMin Road, Song Ping Shan Area, Science&Industry Park, Nanshan District Shenzhen 518057 P.R. China Declare on our sole responsibility that this equipment complies with the Annex IV of Council...
  • Page 5 Quick Instruction Manual (4) EN 50385:2002 We, Kirisun Communications Co.,Ltd. 3-6Flrs, ROBETA Building, No.1, QiMin Road, Song Ping Shan Area, Science&Industry Park, Nanshan District Shenzhen 518057 P.R. China Declare on our sole responsibility that this equipment complies with the FCC Part15 rules These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6 TP620 Digital Portable Radio Quick Instruction Manual connected. ● Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 7: U Npacking And

    TP620 Digital Portable Radio Quick Instruction Manual In the vehicle with an air bag, do not place the radio in the area over an air bag or in the air bag deployment area. Turn off the radio before entering any area with a potentially explosive atmosphere or blasting caps.

  • Page 8: Product Overview

    TP620 Digital Portable Radio Quick Instruction Manual packing material. If any damage or loss occurs during shipment, please contact your dealer. Item Quantity Antenna Belt Clip Charger Antenna Battery Charger Battery Hand Strap Power Adapter Instruction Manual Belt Clip andScrews...

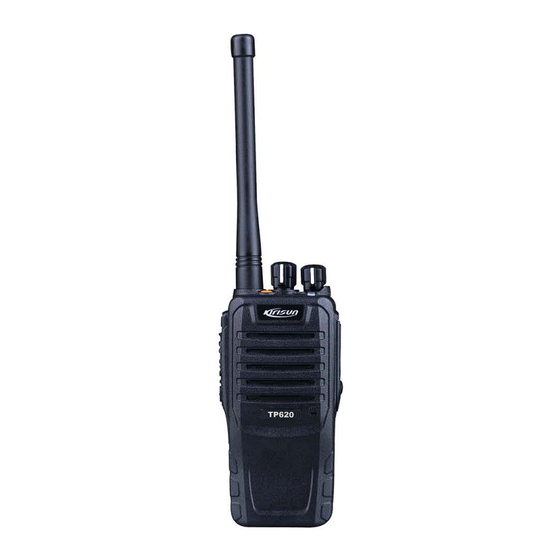

  • Page 9 TP620 Digital Portable Radio Quick Instruction Manual Part Name Part Name LED Indicator Side Button1 Power/Volume Switch Side Button2 Channel Knob Top Button PTT Button External speaker microphone interface...

  • Page 10: P Roduct

    TP620 Digital Portable Radio Quick Instruction Manual  Programmable Buttons Authorized Dealer can program the programmable buttons as shortcuts to various radio features. Each button can has two features and can be activated through Long Press or Short Press. Note：...
  • Page 11 TP620 Digital Portable Radio Quick Instruction Manual Please refer to the following steps to charge your batter. Plug the adaptor in the rear power jack of the intelligent charger, and plug the adaptor into the suitable AC socket. The three LED lights will flash for about one second and turn green when everything is properly set.
  • Page 12 The yellow light flashing indicates abnormality in charging temperature or in the circuit, and the charger will then enter the state of protection. During this state, do not impose charging anymore and take out the battery before unplugging the charger. Please use only the charger and battery provided by Kirisun.
  • Page 13 TP620 Digital Portable Radio Quick Instruction Manual Charging LED Indicator Charging Status Yellow light flashes. Abnormality in charging temperature or in the circuit. The red led lights. The battery is in charging. The green led lights. The battery is full charged or Standby(no load) ...
  • Page 14 TP620 Digital Portable Radio Quick Instruction Manual Uninstalling the Battery For detaching the battery, push downward the battery latch at the radio bottom and then push the battery in the direction of the arrow shown in the picture until the battery is completely detached from...

  • Page 15: Basic Operation

    TP620 Digital Portable Radio Quick Instruction Manual Note： Please do not throw the short-circuit battery terminal or battery into fire. Please do not short-circuit the battery terminal or throw the battery into fire. Do not disassemble the battery casing by yourself.
  • Page 16 TP620 Digital Portable Radio Quick Instruction Manual set an alert tone, the radio will make a beep. Turn the power/volume knob counterclockwise for powering off.  Adjusting the Volume To increase the volume, turn the Volume Knob clockwise. To decrease the volume, turn this knob counterclockwise.
  • Page 17 TP620 Digital Portable Radio Quick Instruction Manual  Push-To-TALK (PTT) Button The PTT button in the radio’s side (Push To Talk, press to talk), this button have functions below: To initiate a new call; In the talking process, you can call other user of this channel.

  • Page 18: R Eceiving And

    TP620 Digital Portable Radio Quick Instruction Manual A negative alert tone indicates the radio switched from zone 2 to zone 1.  Selecting a Radio ChannelProcedure： Once the required zone is programmed (if you have multiple zones in your radio), turn the Channel Selector Knob to select the channel.

  • Page 19: Making A

    TP620 Digital Portable Radio Quick Instruction Manual 5. Other Functions Except making a call and receiving a call, the radio also supports many other functions. These functions need to be programmed before using. You can connect your local dealer to use these functions.

  • Page 20: T Roubleshooting

    TP620 Digital Portable Radio Quick Instruction Manual instantly assess situation. Digital Encryption Enhance communication security. Emergency Variety emergency calls can be confirmed to maximize employee safety. Scan A scan helps ensure all relevant calls are heard. DTMF Encode DTMF function can allow users to send a PTT ID Decode or realize kinds of calls.

  • Page 21: Antenna

    TP620 Digital Portable Radio Quick Instruction Manual C. The power binding post isn’t connected with battery. Re-install it and try again. A. The frequency settings may be different from others. Set your TX/RX frequencies to be the same as others.
  • Page 22 TP620 Digital Portable Radio Quick Instruction Manual A. Check whether the volume level is at its lowest or not. The LED lights up Increase the volume level and try again. solid green without B. Check whether the speaker is broken or not. Change the any voice received speaker and try again.
  • Page 23 TP620 Digital Portable Radio Quick Instruction Manual FCC Statements: FCC Statements: FCC Statements: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:...

  • Page 24: Belt Clip

    TP620 Digital Portable Radio Quick Instruction Manual An appropriate warning lable is affixed to all units.In order to comply with RF exposure requirements, a minimum distance of 2.5cm must be maintained when held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip).
  • Page 25 TP620 Digital Portable Radio Quick Instruction Manual...
