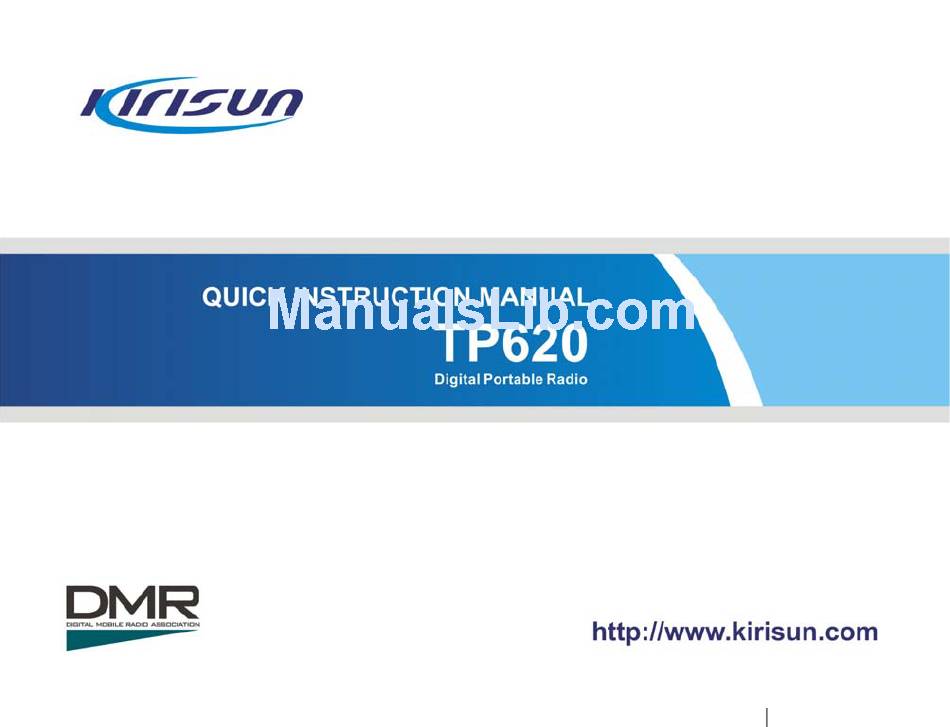

- Page 1 TP620 Digital Portable Radio Quick Instruction Manual...
- Page 2 Kirisun Communications Co., Ltd. We believe KIRISUN two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN two-way radio can meet your demands for reliable communication.
-
Page 3: Table Of Contents
TP620 Digital Portable Radio Quick Instruction Manual Contents 1 Safety ....................... 2 2 General Description ...................... 3 2.1 Unpacking and Checking..................3 2.2 Product Overview ....................4 2.3 Preparing your product for use ................5 2.4 Installing/Uninstalling the Battery................7 3 Basic Operation ...................... - Page 4 TP620 Digital Portable Radio Quick Instruction Manual...
- Page 5 TP620 Digital Portable Radio Quick Instruction Manual We, Kirisun Communications Co.,Ltd is located at 5-6Flrs, ROBETA Building, No.1, QiMin Road, Song Ping Shan Area, Science&Industry Park, Nanshan District Shenzhen 518057 P.R. China. Declare on our sole responsibility that this equipment complies with the FCC Part15 rules.
-
Page 6: Safety
TP620 Digital Portable Radio Quick Instruction Manual 1 Safety Before using this radio, read this operating instruction carefully for safe and convenient usage. This product can only be maintained by the professional technicians. Do not disassemble the radio by yourself. To avoid of the problems caused by electromagnetic interference or electromagnetic compatibility, turn off the radio in any facilities where posted notices instruct you to do so, such as hospital and other health care facilities. -
Page 7: General Description
TP620 Digital Portable Radio Quick Instruction Manual 2 General Description 2.1 Unpacking and Checking Standard Accessories Please unpack carefully and check all the items listed in the following table before discarding the packing material. If any damage or loss occurs during shipment, please contact your dealer. -
Page 8: Product Overview
TP620 Digital Portable Radio Quick Instruction Manual 2.2 Product Overview Identification of Buttons Part Name LED Indicator Power/Volume Switch Channel Knob PTT Button Side Button1 Side Button2 Top Button External speaker microphone interface Programmable Buttons Authorized Dealer can program the programmable buttons as shortcuts to various radio features ( Feature List on Page 10.).Each button can be programmed for two features and can be activated... -
Page 9: Preparing Your Product For Use
TP620 Digital Portable Radio Quick Instruction Manual Note： Short Press – Press and release quickly Long Press – Press and hold for the programmed duration LED Status Indicator The LED indicator shows the operational status of your radio. Solid red – Radio is transmitting Solid green–... - Page 10 TP620 Digital Portable Radio Quick Instruction Manual Make sure the battery is properly attached to the charger. The charging begins when the red light is on. The red light is off when the battery is fully charged，and then the green light is on, indicating the charging is completed.
-
Page 11: Installing/Uninstalling The Battery
TP620 Digital Portable Radio Quick Instruction Manual 2.4 Installing/Uninstalling the Battery Installing the Battery Press the top of the belt clip, and align the battery with the slots on the back of the radio. Press the battery firmly, and slide upward until the latch snaps into place. -
Page 12: Basic Operation
TP620 Digital Portable Radio Quick Instruction Manual 3 Basic Operation Powering on/off Turn the power/volume knob clockwise for powering on. If the dealer set an alert tone, the radio will make a beep. Turn the power/volume knob counterclockwise for powering off.(Refer to figure①) Adjusting the Volume To increase the volume, turn the Volume Knob clockwise. - Page 13 TP620 Digital Portable Radio Quick Instruction Manual Selecting a Channel Usually just switch the channel knob to the desired channel. The white line of channel knob can point directly to the channel number which is printed from 1 to16 around the channel selector.
-
Page 14: Making/Receiving A Call
TP620 Digital Portable Radio Quick Instruction Manual Talk In Right Posture Hold the radio vertically, press and hold the PTT button, wait for half a second, then talk to the Microphone (“MIC”marked in the front cover) at a distance which is around 1 to 2 inches (2.5-5.0 cm) from your mouth. -
Page 15: Other Functions
Allow stolen/lost radios to be enabled over the air. Radio Disable Allow stolen/lost radios to be disabled over the air. TP620 radio can be detected whether it is active by system or DMR Radio Check Radio like TP660 or DP770 from Kirisun. -
Page 16: Troubleshooting
TP620 Digital Portable Radio Quick Instruction Manual 6 Troubleshooting Problem Causes and Solutions a). The battery may run out. Please recharge or change the battery and try again. Powered-on Failure b). Poor contact between battery and radio unit. Please re-install battery and try again. - Page 17 TP620 Digital Portable Radio Quick Instruction Manual a). The antenna may get loose or may be installed improperly. Please re-install the antenna. b). The frequency settings may be different from other Receiving Failure members. Please set your TX/RX frequencies to match with others.
