Summary of Contents for Kirisun W60

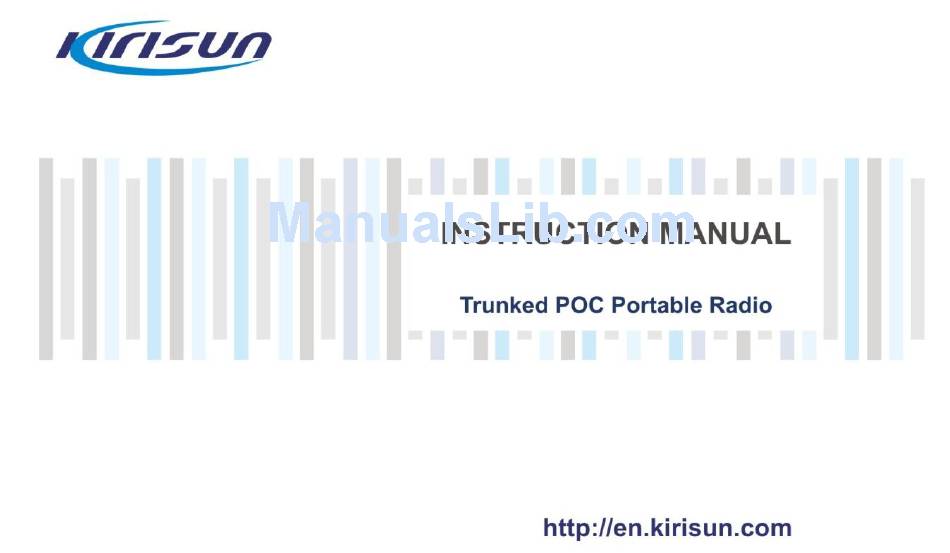

- Page 2 Quick Reference Guide Instruction Manual Trunked POC Portable Radio We are very grateful for your purchasing Kirisun brand two-way radio produced by Kirisun Communications Co., Ltd. We believe Kirisun two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and...
-
Page 4: Table Of Contents
Trunked POC Portable Two-way Radio Quick Reference Guide Contents Safety ............................2 Regulatory ........................... 7 Caring for your product ......................8 Connectors, controls, buttons and keys ..................9 Keys, buttons and knobs overview ..................11 LED status indicator ........................12 Battery information ........................ -
Page 5: Safety
This product must not be operated in environments that exceed those listed in the product technical datasheet and in the Regulatory section of the product user guide. Unauthorised modifications to the product could cause the product to become non-operational. Always use Kirisun approved antenna, battery and accessories with this product. - Page 6 Quick Reference Guide Exposure to RF energy Kirisun designs and manufactures products to meet strict guidelines and international standards relating to Radio Frequency (RF) energy and the potential health risks associated with using such products. If you have any concerns about potential health risks associated with long term exposure to RF energy, you should obtain advice from your employer.
- Page 7 Always ensure that the antenna is pointed away from the body, particularly the eyes. When body-worn, the radio must be secured using Kirisun approved attachments. Always ensure that your radio is operating correctly before entering any environment that has a potential risk to personal safety.
- Page 8 DO NOT handle, hold or swing the radio by its antenna, because this may damage the antenna and the radio. Do not chew the antenna or place it into your mouth. NEVER use your radio without an antenna attached. Transmitting without an antenna may damage the radio. Only use a Kirisun approved antenna with your radio.
- Page 9 Do not install the product within the air bag deployment area. In the event of the air bag deflating, the radio could be propelled at great force potentially causing serious injury. Servicing Do not attempt to dismantle this product. Servicing and repairs to this product must be performed by trained service technicians at Kirisun approved service centres.
-
Page 10: Regulatory
Please dispose of your waste batteries according to your national and local regulations. Contact your service provider or Kirisun about recycling batteries in your region of the world. -
Page 11: Caring For Your Product
Your radio does not require regular servicing. Caring for your radio as described in this guide will help maintain the product in good operational condition. Kirisun supplies a range of accessories to protect the radio during use, including a protective cover. Contact Kirisun for more information. -
Page 12: Connectors, Controls, Buttons And Keys

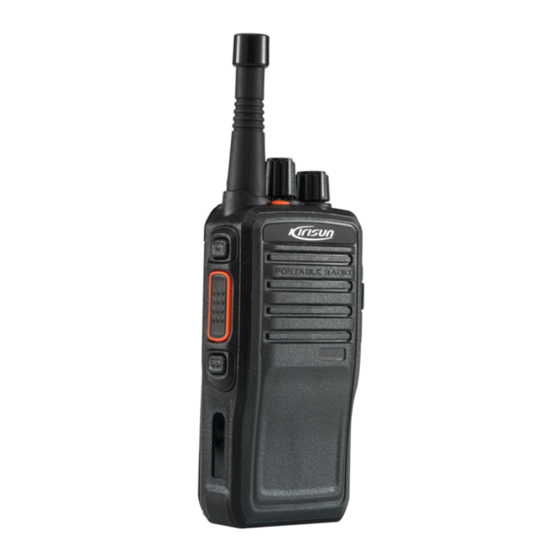

Trunked POC Portable Two-way Radio Quick Reference Guide Connectors, controls, buttons and keys... - Page 13 Trunked POC Portable Two-way Radio Quick Reference Guide Refer to the illustration for the location of the following connectors, controls, buttons and keys: (1) Programmable side button 1 (2) PTT button (3) Programmable side button 2 (4) Antenna (5) Speaker (6) Top key (7) Channel selector knob (8) Power/Volume knob...
-
Page 14: Keys, Buttons And Knobs Overview
Trunked POC Portable Two-way Radio Quick Reference Guide Keys, buttons and knobs overview Power switch / Volume knob To power on, rotate clockwise. To power off, rotate counter-clockwise. To increase the volume, continue rotating clockwise. Rotate counter-clockwise to decrease the volume. Channel knob / Group selector knob Rotate clockwise to change channels / groups. -
Page 15: Led Status Indicator
Trunked POC Portable Two-way Radio Quick Reference Guide LED status indicator The LED changes colour to show the operational state of your radio. Operational State Fail to insert SIM card or SIM card was installed wrongly, voice prompts "mobile phone card read failure" This device is not added in the server Solid red Device is added, but its group selector knob is not set... -
Page 16: Battery Information
Radio is in ‘idle’ mode or is powered off. Battery information Your radio is supplied with a Kirisun approved battery to provide optimum performance. If you battery is new, it may need to be fully charged before first use. Always ensure your battery is fully charged before you start your shift. - Page 17 (battery radios) by metal objects may cause bodily injury such as a burn. Do not disassemble, mutilate or incinerate the battery. Caution: This radio has been tested and certified using a Kirisun approved battery. Using non- approved batteries may damage the radio and invalidate any product warranty.
-
Page 18: Charging Your Battery
Trunked POC Portable Two-way Radio Quick Reference Guide ° ° <1 months -20 to +55 C (-4 to 131 ° ° 1 to 3 months -20 to +40 C (-4 to 104 ° ° >3months -20 to +30 C (-4 to 86 Charging your battery If the battery is new, it is important that it is fully charged before first use. - Page 19 Trunked POC Portable Two-way Radio Quick Reference Guide Charging with the micro USB slot at the bottom of the battery Remove the battery from the body of the radio, connect the data/charging cable to the micro USB slot at the bottom of the battery. The LED indicator can show the charging status.
-
Page 20: Accessory Information
Battery is charging. Solid green Battery is fully charged. Standby mode without battery. Battery is damaged. Contact your service provider or Flashing yellow Kirisun. Accessory information Fit the battery Align the battery with the two slots on the back of the radio. - Page 21 Trunked POC Portable Two-way Radio Quick Reference Guide Fit the antenna Ensure the radio is powered off Place the antenna into its receptacle Rotate the antenna clockwise until finger tight. Fit the belt clip Ensure the radio is powered off. Remove the two screws at the back of the radio using a cross-head PH1 screwdriver.
- Page 22 Connect the programming cable Open the RAC fist, then plus the data/charging cable into the micro USB slot in the RAC. Fit earphone (earphone is optional accessory) Open the RAC cover first, then plug Kirisun-approved earphone into the slot in the RAC.
-
Page 23: Basic Operation
Trunked POC Portable Two-way Radio Quick Reference Guide Basic operation Power on/off To power on, rotate the Power/volume knob clockwise. To power off, rotate the Power/volume knob counter-clockwise until the knob clicks. Standby First boot after installed battery, it will take about 50s to register in the server. Then if turn off the power, the radio will get into sleep mode to maintain the minimum power consumption. - Page 24 Trunked POC Portable Two-way Radio Quick Reference Guide Call duration setting To avoid occupy right to speak too long, it provides setting for call duration, Time periods range from 30 to 90 seconds, and can be set in the configuration tool. At the end of the time period, the call will be terminated automatically no matter the calling is finished or not.
- Page 25 Trunked POC Portable Two-way Radio Quick Reference Guide Priority call Allow setting different priorities for each radio. The radio with higher priority can make a call prior to others Calling types Group call After boot, the radio will enter standby status waiting for group call, press the PTT button can make a group call, and by rotating the channel / group selection knob can switch between the groups Individual call ...
-
Page 26: Low Battery Alert
Trunked POC Portable Two-way Radio Quick Reference Guide Press the programmable button which is programmed to be with “duplex call” function, then enter the duplex call mode, press PTT button to initiate the call, during the duplex call, the members in the call can speak without pressing PTT button *Duplex cal can’t be interrupted Historical call record playback... -
Page 27: Technical Specifications
Trunked POC Portable Two-way Radio Quick Reference Guide Remote programming Allow programming the radio via 2G (GPRS) / 3G network by operating in management platform , or via WIFI network by operating in configuration APP in Android phone. WIFI network Support access to WIFI network and open a hotspot for other devices. - Page 28 Trunked POC Portable Two-way Radio Quick Reference Guide 2G: 200kHz Channel Spacing 3G: 5Mhz (Follow 2G/3G protocol and managed by public telecom operator Operating Temperature -10℃ ~ + 50℃ Storage Temperature -40℃ ~ + 80℃ Power Supply DC 3.7V Battery 3600mAh Li-ion 115mm*54mm*30mm Dimension (H*W*D)
- Page 29 Trunked POC Portable Two-way Radio Quick Reference Guide 2G mode: 22 hrs (GPS on); 25 hrs (GPS off) Battery Life (3600mAh) 3G mode: 15 hrs (GPS on); 16 hrs (GPS off) Transmitter 2G: 2W ± 0.5W RF Power Output 3G: 0.25W ± 0.1W Frequency Stability ±0.1 ppm Audio Distortion...
- Page 31 FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your phone In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
- Page 32 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 33 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following tow conditions: (1)this device may not cause interference, and(2) this device must accept any interference, includinginterference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence.
- Page 34 RF Exposure Information: This product is compliance to IC RF Exposure requirements and refers to IC website https://sms-sgs.ic.gc.ca/eic/site/sms-sgs-prod.nsf/eng/h_00013.html search for IC: 8992A-W60W65 to gain further information include SAR Values. Ce produit est conforme aux exigences d'exposition à RF RF et se réfère au site Web IC Informations sur l'exposition RF: Obtenir d'autres informations incluent les valeurs SAR.
