Operations Check - CODELOCKS CL4500 Installation Instructions Manual

Chisel 25mm (1")
Stanley knife
Adhesive tape, pencil, bradawl, tape measure
Pliers and hacksaw for cutting bolts

Operations Check

You should familiarise yourself with the operation of the lock and check that all the parts work properly.
Remove the battery cover from the back plate and install the 4 x AA cells supplied.
Connect the cables from the front plate and back plate. A BEEP should be heard when you do this. If no BEEP is heard then check that the
batteries are correctly installed.
Place the long spindle in the front plate socket and using finger grip only, test that the spindle is easily moved 80° in both directions.
Leave socket in the centred position.
Enter the factory Master Code #12345678.
The keypad will flash blue and the spindle should not turn as before. After 5 seconds the keypad will flash red and the spindle should turn
easily again. This confirms that the clutch engaged correctly when the code was entered
N.B. When the Master Code is entered 3 times consecutively without performing a programming function, a penalty time of 30 seconds is
activated.
Disconnect the cables.
Special Fixing Note
Remote Release Option

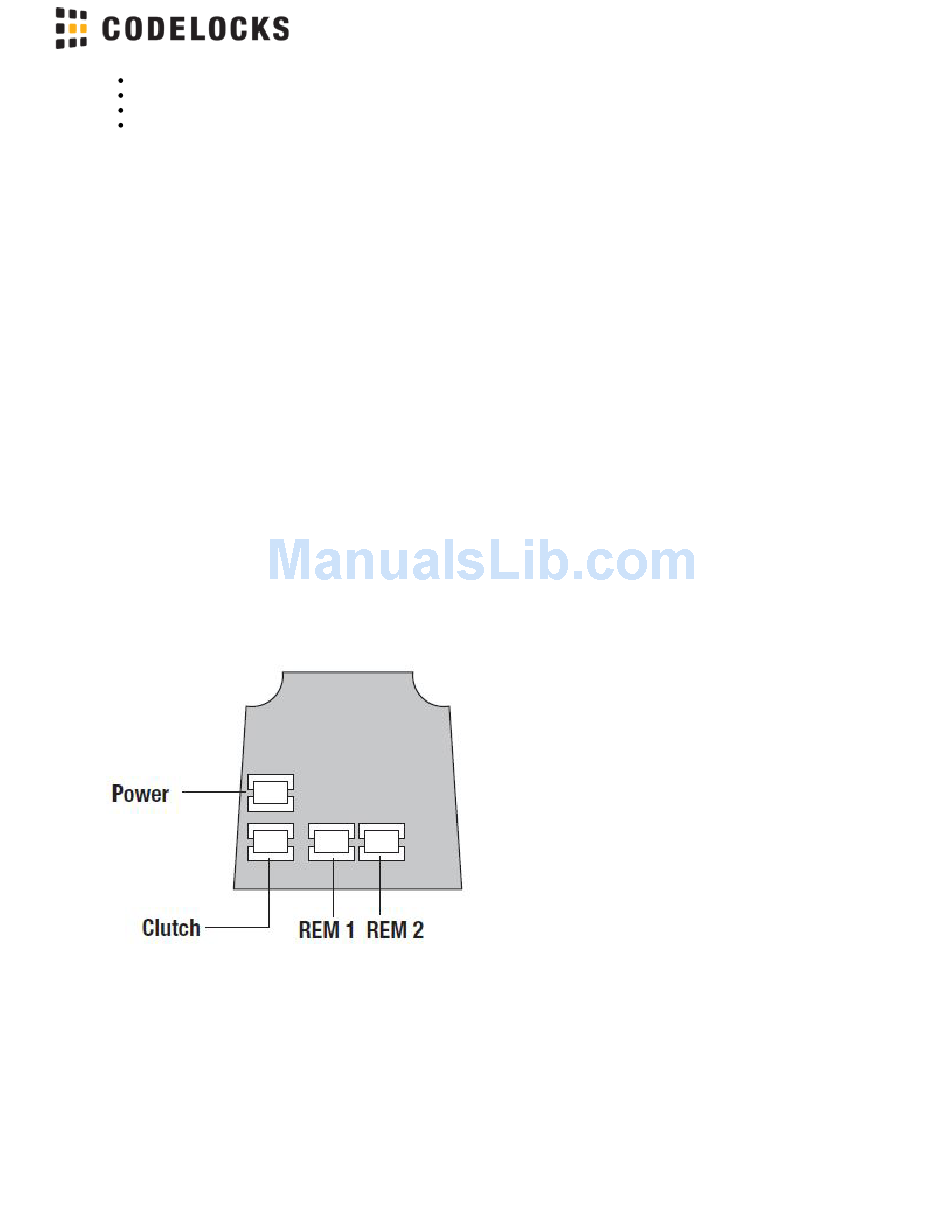

Cables are provided for the REM 1
REM 1 is for connection to a reception desk push button or a door intercom system. Pressing the button will cause the keypad to flash blue
on the lock and release the lock for the pre-set time.
REM 2 is for connection to the building alarm system to release a door in an emergency. This allows rooms, wards, offices to be easily
checked to ensure that no person is trapped or overlooked during an emergency evacuation. When activated
unlocked condition for 30 minutes, the keypad will flash red and BEEP during this time. The lock will automatically lock again after 30
minutes. If necessary Program 7 can be used to re-lock before the end of the 30 minutes.
They are normally open contacts requiring a momentary or maintained signal to close.
and REM 2 terminals on the circuit board.
Page 2
Find more online at www.codelockssupport.com
REM 2 will maintain the
REM 1 and REM 2 do not require additional power.
