Grizzly G8621 Instruction Manual

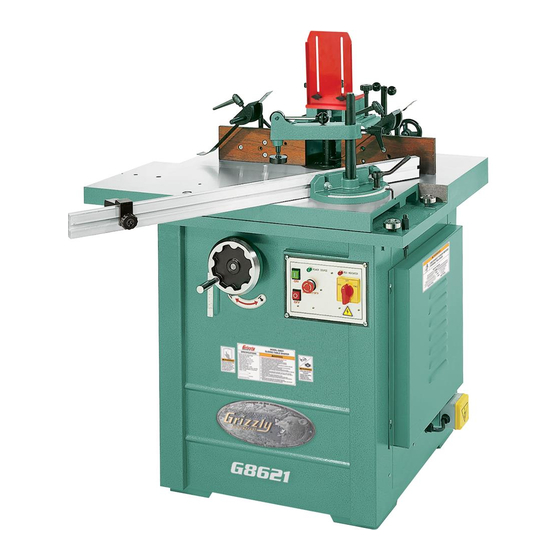

Heavy-duty sliding table shaper
Hide thumbs Also See for G8621:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
HEAVY-DUTY
SLIDING TABLE SHAPER
MODEL G8621

INSTRUCTION MANUAL

COPYRIGHT © 2001 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
REVISED OCTOBER, 2002. PRINTED IN TAIWAN
ONLINE MANUAL DISCLAIMER
THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE
MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE
MACHINE, THIS MANUAL MAY NOT EXACTLY DEPICT YOUR MACHINE . CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS
ABOUT DIFFERENCES. PREVIOUS VERSIONS ARE NOT AVAILABLE ONLINE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G8621 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly G8621

Summary of Contents for Grizzly G8621

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL COPYRIGHT © 2001 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. REVISED OCTOBER, 2002. PRINTED IN TAIWAN ONLINE MANUAL DISCLAIMER THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED.
  • Page 2 WARNING Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...

  • Page 3: Table Of Contents

    SAFETY SAFETY RULES FOR ALL TOOLS ...2-3 ADDITIONAL SAFETY INSTRUCTIONS FOR SHAPERS ...4 CIRCUIT REQUIREMENTS ...5 220V OPERATION ...5 GROUNDING ...5 EXTENSION CORDS ...6 WIRING...6 GENERAL INFORMATION/COMMENTARY ...7 UNPACKING ...8-9 CLEAN UP ...10 SITE CONSIDERATIONS...10 ASSEMBLY...11 BEGINNING ASSEMBLY ...11 HANDWHEEL ...11 SPINDLE...12 HANDLES ...13 GUARD ...14...

  • Page 4: Safety Instructions For Power Tools

    G8621 Heavy-Duty Sliding Table Shaper VISITORS...
  • Page 5 13. NEVER OVERREACH. Keep proper foot- ing and balance at all times. G8621 Heavy-Duty Sliding Table Shaper 14. MAINTAIN TOOLS WITH CARE. Keep 15. DISCONNECT TOOLS before servicing 16. REDUCE THE RISK OF UNINTENTION- 17.

  • Page 6: Additional Safety Instructions For Shapers

    Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor work results. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 7: Section 2: Circuit Requirements

    SECTION 2: CIRCUIT REQUIREMENTS 220V Operation The Model G8621 Shaper is furnished with a 3450 R.P.M., 5 H.P., Single-Phase 220V motor, push-button ON/OFF magnetic starter switch, for- ward-reverse switch and a cord set. Under nor- mal use, the motor draws approximately 25 amps @ 220V.

  • Page 8: Extension Cords

    These requirements are not necessarily comprehensive. You must be sure that your particular electrical configu- ration complies with local and state codes. Ensure compliance by checking with your local municipality or a licensed electrician. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 9: Section 3: General Information

    G8621 are available. Please refer to the current Grizzly catalog for more information. We are also pleased to provide this manual with the Model G8621. It was written to guide you through assembly, review safety considerations, and cover general operating procedures. It repre- sents our latest effort to produce the best docu- mentation possible.

  • Page 10: Unpacking

    Unpacking The Model G8621 Shaper is shipped from the manufacturer in a carefully packed carton. If you discover the machine is damaged after you’ve signed for delivery, and the truck and driver are gone, you will need to file a freight claim with the carrier.
  • Page 11 The Model G8621 Hardware and Qty: ⁄ " Spindle 1" Spindle ⁄ " Spindle ⁄ " Spindle Nut 1" Spindle Nut ⁄ " Spindle Nut Spacer Set Hold Downs Hold Down Bars Hold Down Brackets Fence Pieces Fence Mounts Dust Port...

  • Page 12: Clean Up

    Most commercial shop floors will be ade- quate for the 770 lb. weight of the Model G8621. Some floors may require additional support. Contact an architect or structural engineer if you have any question about the ability of your floor to handle the weight.

  • Page 13: Section 4: Assembly

    SECTION 4: ASSEMBLY Beginning Assembly Most of your Model G8621 Shaper has been assembled at the factory, but some parts must be assembled or installed after delivery. We have organized the assembly process into steps. Please follow along in the order presented here.

  • Page 14: Spindle

    Spindle The Model G8621 comes with three interchange- able spindles like those in Figure 5. The spindles must be inserted correctly and remain stable in order to produce quality work. When installing and changing spindles, make sure the spindle seats snugly and that there is enough drawbar threaded into the bottom of the spindle to safely secure it in place.

  • Page 15: Handles

    Tighten the shaft setscrew into the groove to lock the bar in place as shown in Figure 9. Figure 9. Tightening setscrew with hex key. G8621 Heavy-Duty Sliding Table Shaper Install the round knobs shown in Figure 10 onto both ends of the bar.

  • Page 16: Guard

    Insert the adjustment shaft into the fence bracket as shown in Figure 14. Figure 14. Adjustment guide to fence bracket. Insert the adjustment handle (Figure 15) into the fence bracket, and thread it into the guard body. Figure 15. Adjustment handle. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 17: Guard Cover

    Figure 16. Attach wooden fence assembly. G8621 Heavy-Duty Sliding Table Shaper ''- 18 x 1'' Phillips ® To mount the guard cover:...

  • Page 18: Hold-Downs

    Figure 18. Hold-down on workpiece. -16- Miter Assembly The miter gauge for the Model G8621 features a clamp and special fence. The miter gauge assembly can be mounted on either end of the table, depending on the type of desired cut or cut- ting direction.
  • Page 19 When these have all been installed on the miter fence, it is time to install the fence onto the miter gauge as in Figure 23. G8621 Heavy-Duty Sliding Table Shaper Figure 23. Installing the miter fence. Slide the clamping unit onto the push shaft as shown in Figure 24.

  • Page 20: Section 5: Adjustments

    (one is shown in Figure 25) which are in the lowest groove of the motor pulley and move the pulley into posi- tion. Tighten the setscrews when the align- ment is satisfactory. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 21: V-Belt Tension

    Failure to do this may result in seri- ous personal injury. G8621 Heavy-Duty Sliding Table Shaper Speed Changes The Model G8621 Shaper is equipped with a V- ⁄ " with belt drive system that controls the speeds. To change spindle speeds: Unplug the machine.

  • Page 22: Fence Adjustment

    Figure 27. If the wood fences are not parallel with each other, shim the incorrect side with electrical washers. Normal washers may work, but electrical washers allow for fine adjustments. Figure 27. Aligning fences with straightedge. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 23: Table Inserts

    Table Inserts The Model G8621 is supplied with two inserts which provide three possible opening diameters in the shaper table surface. Use the smallest opening that a particular cutter will allow. This offers more support for the workpiece and reduces the amount of chips that can fall into the machine.

  • Page 24: Test Run

    FWD position. Run the Model G8621 for a short time to ensure that the moving parts are working properly with no excessive vibration. If any problem develops, correct it before attempting to use the machine.

  • Page 25: Section 6: Operations

    WE STRONGLY RECOMMEND that you read books, trade magazines, or get for- mal training to maximize the potential of your shaper. G8621 Heavy-Duty Sliding Table Shaper loose clothing Your FORWARD/REVERSE switch as shown in Figure 30.

  • Page 26: Table Lock

    Although the miter assembly does aid in safety, common sense should always be used during every shaping operation. Table Lock Figure 32. Table lock. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 27: Spindle Height

    Disconnect power to the machine when perform- ing any adjustments or maintenance. Failure to do this may result in seri- ous personal injury. G8621 Heavy-Duty Sliding Table Shaper Straight Shaping Read the entire manual before making any cuts with Serious personal injury...
  • Page 28 Figure 36. Figure 36. Fence adjustment for blind cuts. Always cut the end grain first when putting an edge around the perimeter of your work- piece. See Figure 37. Figure 37. Sequence for multiple cuts. G8621 Heavy-Duty Sliding Table Shaper...

  • Page 29: Rub Collars

    There are two types of rub collars—solid and ball- bearing. We recommend against the use of solid rub collars. Grizzly carries an extensive line of ball bearing rub collars designed for use with Grizzly shapers. See the current catalog for list- ings.

  • Page 30: Pattern Work

    Also, unless your jig is designed to touch the rub collar before contacting the blade, a starting fixture must be used to begin your cut. Workpiece fits here G8621 Heavy-Duty Sliding Table Shaper...

  • Page 31: Freehand Shaping

    G8621 Heavy-Duty Sliding Table Shaper Miter Assembly When the workpiece is clamped to the table using the miter assembly, crosscuts can be made with a much greater degree of safety.

  • Page 32: Shaper Accessories

    Because of the steady feed rate, power feed- ers can also produce cleaner, more consis- tent cuts. Check the current Grizzly catalog for available power feeders. Because of the wide range of fences and guards that can be built in the shop, explaining their con- struction is beyond the scope of this manual.

  • Page 33: Section 7: Maintenance

    General Regular periodic maintenance on your Model G8621 Shaper ensures its optimum performance. Make a habit of inspecting your shaper each time you use it. Check for the following conditions and repair or replace when necessary.

  • Page 34: Wire Diagram

    -32- G8621 Heavy-Duty Sliding Table Shaper...

  • Page 35: Section 8: Closure

    Washington location using the address in the General Information section. The specifications, drawings, and photographs illustrated in this manual represent the Model G8621 as supplied when the manual was prepared. However, due to Grizzly’s policy of continuous improvement, changes may be made at any time with no oblig- ation on the part of Grizzly.

  • Page 36: Machine Data

    " x 13 ⁄ " ⁄ ⁄ ⁄ ⁄ ⁄ ⁄ " ⁄ " x 26 ⁄ " ⁄ '', 1'', 1 ⁄ ⁄ '', 4 ⁄ '', 5 ⁄ ⁄ " ⁄ ⁄ ⁄ " G8621 Heavy-Duty Sliding Table Shaper...

  • Page 37: Parts Breakdown And Parts Lists

    G8621 Heavy-Duty Sliding Table Shaper -35-...
  • Page 38 -36- G8621 Heavy-Duty Sliding Table Shaper...
  • Page 39 G8621 Heavy-Duty Sliding Table Shaper -37-...
  • Page 40 -38- G8621 Heavy-Duty Sliding Table Shaper...
  • Page 41 G8621 Heavy-Duty Sliding Table Shaper -39-...
  • Page 42 LOCK WASHER CAP SCR "-18 X 1" WASHER " LOCK WASHER HEX HD BOLT SCREW 10-24 X HEX HD BOLT HANDLE G8621 Heavy-Duty Sliding Table Shaper "-18 X 1" " "-16X 1 " " " "-12X 1 " " "-18X...
  • Page 43 208 P5912Z208 CAP SCREW 209 PN06 HEX NUT 210 PR39M C-RING C8 211 P5912Z211 SHAFT 212 P5912Z212 SPRING G8621 Heavy-Duty Sliding Table Shaper "-20 X 1" 213 PR05M "-20 214 P5912Z214 PRESS WHEEL 215 P5912Z215 PRESS SHAFT 216 P5912Z216 PLASTIC NUT...

  • Page 44: Warranty And Returns

    WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.

  • Page 45: Warranty Card

    Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Imports to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_______________________________________________...
  • Page 46 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
