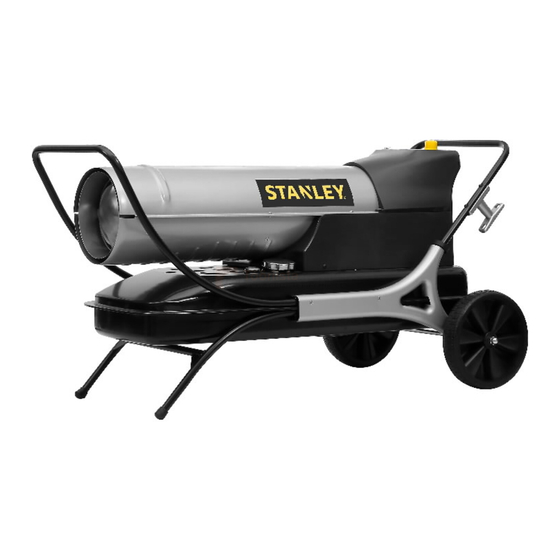

Stanley ST-175T-KFA-E User Manual
Hide thumbs
Also See for ST-175T-KFA-E:
- Operating instructions manual (89 pages) ,
- Instruction manual (86 pages) ,
- Manual (66 pages)
Related Manuals for Stanley ST-175T-KFA-E
Summary of Contents for Stanley ST-175T-KFA-E

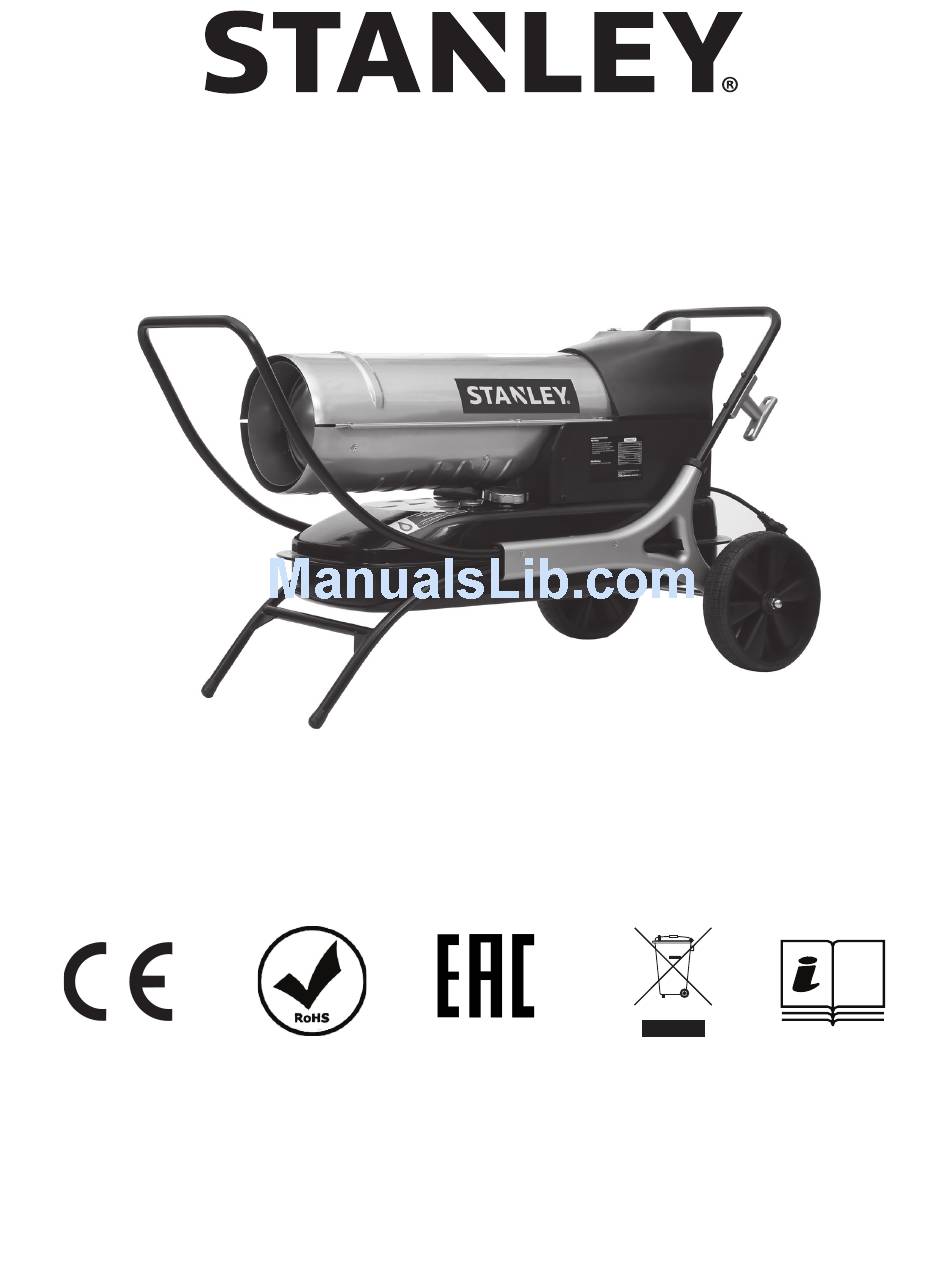

- Page 1 ST-45-KFA-E / ST-70T-KFA-E / ST-125T-KFA-E ST-175T-KFA-E / ST-215T-KFA-E NEVER LEAVE HEATER UNATTENDED WHILE BURNING, OR WHILE CONNECTED TO A POWER SOURCE. STKA-426...
- Page 2 PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 3 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. ST-125T-KFA-E ST-175T-KFA-E ST-70T-KFA-E 19. CORD WRAP (OPTIONAL) ST-215T-KFA-E ST-45-KFA-E *ST-70T-KFA-E, ST-125T-KFA-E, ST-175T-KFA-E, ST-215T-KFA-E only © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53,1030 Brussels, Belgium...
-
Page 4: Wiring Diagram
SPECIFICATIONS Specifications subject to change without notice Model # ST-45-KFA-E ST-70T-KFA-E ST-125T-KFA-E ST-175T-KFA-E ST-215T-KFA-E HEATING AREA (m²) THERMAL POWER (kW) 13.0 20.5 36.6 51.2 63.0 FUEL CONSUMPTION (L/H) TANK CAPACITY (L) 18,9 18,9 37,9 L 49,2 49,2 MAX OPERATING HOURS... -
Page 5: Safety Information
Safety Information Assembly This is a parafin, direct-fired, forced air heater. It is primarily MODELS ST-45/70T-KFA-E intended for use for temporary heating of buildings under - Tools required: Medium phillips screw driver. construction, alteration or repair. This appliance produces small 1. -
Page 6: Operation
Figure 2. Start The Heater qualified persons in order to avoid a hazard. STANLEY, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of Stanley Black & Decker, Inc. or an affiliate thereof. -
Page 7: Plug Replacement
Plug Replacement RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE. WARNING NOTE: This section only applies to heaters sold or used in Great Britain. This appliance is supplied with a BS1363 3 pin The blue wire must be connected to the terminal plug fitted with a fuse. -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible Cause Solution 1. Incorrect pump pressure 1. Adjust Pump Pressure 2. Dirty Input, Output or Lint Filter 2. Clean/replace Air Filter 3. Dirty Fuel Filter 3. Clean/replace Fuel Filter Heater fires, but Main PCB shuts 4. Nozzle is Dirty 4. -
Page 9: Part Maintenance
PART MAINTENANCE © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53,1030 Brussels, Belgium... -
Page 10: Exploded View
EXPLODED VIEW © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53,1030 Brussels, Belgium... -
Page 11: Parts List
PARTS LIST ST-45-KFA-E / ST-70T-KFA-E / ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E Fuel Tank Drain Plug Fuel Gauge Fuel Filter Fuel Cap Power Cord Power Switch Electronic Fuel Gauge Thermostat Control Knob Lower Shell Air Line Temperature Limit Switch Combustion Chamber... - Page 12 Obelis S.A Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium © 2017 Stanley Black & Decker, Inc. © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53,1030 Brussels, Belgium...
