This product is not suitable for primary heating purposes.
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING:
DANGER
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS MANUAL
BEFORE ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure to comply with the
instructions and warnings provided with this heater. Failure to comply can result in fire or explosion
that can cause property loss, bodily injury, or loss of life. Only persons who can follow and
understand these instructions should operate or service this heater. If you need heater info; such as
an operating manual, labels, etcetera, contact the manufacturer.
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN ENCLOSED SPACES
DANGER
WITHOUT ADEQUATE VENTILATION. FOR OUTDOOR USE. INDOOR USE
PERMITTED ONLY FOR: THE TEMPORARY HEATING OF ADEQUATELY VENTILATED
BUILDINGS OR STRUCTURES UNDER CONSTRUCTION, ALTERATION OR REPAIR. This is
an unvented portable heater that uses air (Oxygen) from within the area in which it is used. Failure
to provide adequate combustion and ventilation air will result in asphyxiation, carbon monoxide
poisoning, bodily injury or death. Refer to "Ventilation" on Page 8.
Factory ID: 500
Model Numbers

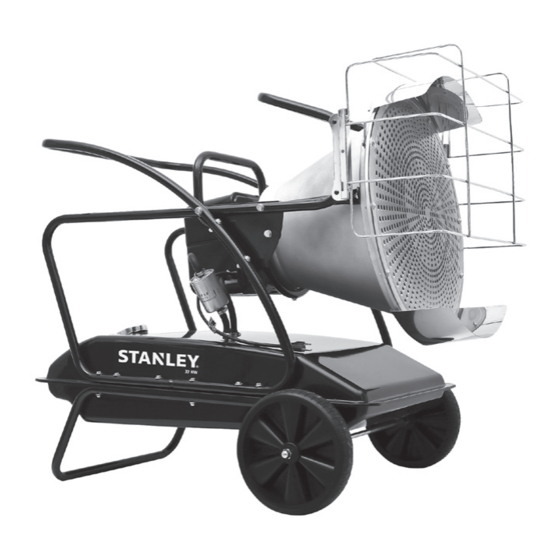

ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
STRB-436
Advertisement
Table of Contents
Related Manuals for Stanley ST-125-OFR-E
Summary of Contents for Stanley ST-125-OFR-E
- Page 1 Model Numbers ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E This product is not suitable for primary heating purposes. CONSUMER: READ AND SAVE THESE INSTRUCTIONS GENERAL HAZARD WARNING: DANGER READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS MANUAL BEFORE ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure to comply with the instructions and warnings provided with this heater.
-
Page 2: Table Of Contents
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Table Of Contents Safety Information ......... 1-2 Maintenance ..........10-11 Features and Specifications ......3-4 Troubleshooting Guide ........12 Assembly ............5-7 Wiring Diagrams ..........13 Ventilation ............8 Exploded Views ......... -
Page 3: Safety Information
Minimum Clearance From Combustibles than others. These include: pregnant women, ST-70-SS-E / ST-70T-SS-E ST-125-OFR-E those with heart or lung problems, anemia or those under the influence of alcohol or at high altitudes. 1.2 m 1.2 m... - Page 4 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Specifications Model # ST-70-SS-E / ST-70T-SS-E ST-125-OFR-E Rating: kW 20,5 36,6 Fuel Consumption: L/Hr Fuel Tank Capacity: L 15,1 Max Operating Hours Volts: AC/Hz 230VAC / 50Hz...
- Page 5 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Features ST-125-OFR-E Radiant Cone Handle Front Safety Guard Radiant Fuel Cap Visors Wheel Frame Adjustment Knob Can Tilt Up To 15° Drain Bolt Wheel © 2021 Pinnacle Climate Technologies, Inc.
- Page 6 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Assembly Instructions ST-70-SS-E / ST-70T-SS-E - Remove the heater and all packaging materials Note: Save the box and packaging materials from the shipping carton. for future storage. What’s In The Box Carry Handle (1) Black Screws (2)
- Page 7 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Assembly Instructions ST-125-OFR-E Note: Save the box and packaging materials Remove the heater and all packaging materials from the shipping carton. for future storage. What’s In The Box...
-
Page 8: Assembly
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Assembly 4. Attach Radiant Visors to the top and bottom 1. Slide axle through Wheel Frame and attach rear of the Radiant Cone Assembly using extra wheels, washers and nuts. screws included. -
Page 9: Ventilation
Minimum Ventilation Opening Needed - NEVER use Paraffin that has been stored from one ST-70-SS-E / season to the next. Paraffin deteriorates over time. ST-125-OFR-E ST-70T-SS-E OLD Paraffin WILL NOT BURN PROPERLY IN THIS HEATER. 1950 cm 3484 cm ©... - Page 10 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Operation: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E Starting the Heater: (Ignition) Stopping the Heater: (Cool Down) 1. Fill the tank with Paraffin or other approved 1. Turn the power switch to the “OFF” position.
-
Page 11: Maintenance
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E Long Term Storage: 1. Unscrew the fuel cap. 2. Using an approved siphon, remove the Paraffin or diesel. 3. Using a small amount of Paraffin or diesel, rinse and swirl the fuel inside the fuel tank NOTE: NEVER MIX WATER WITH FUEL. - Page 12 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E Service (Continued): PHOTOCELL: The photocell should be cleaned at least once NOZZLES: per heating season or more depending on Nozzles should be cleaned or replaced at least conditions.
-
Page 13: Troubleshooting Guide
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Troubleshooting Guide: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E Problem Possible Cause Solution 1. Dirty Fuel Filter. 1. Clean/replace Fuel Filter. 2. Nozzle Dirty. 2. Clean/replace Nozzle 3. Photocell Dirty. - Page 14 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Wiring Diagrams AC 250V 3.15A ST-70T-SS-E ST-70-SS-E AC230V/50Hz 250V/3.15A ST-125-OFR-E © 2021 Pinnacle Climate Technologies, Inc.
-
Page 15: Exploded Views
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Exploded View ST-70-SS-E Parts List Fuel Filter Heat Plate Fuel Line Shell Ring Fuel Gauge Safety Guard Fuel Cap Burner Body Cooling Fan Housing / Cooling Fan Spark Plug Housing Panel Burner Blade... - Page 16 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Exploded View ST-70T-SS-E Part Shell Insulator Ceramic Fiber Heat Plate Shell Ring Parts List Safety Guard Part Burner Body Fuel Tank Assembly Spark Plug Fuel Filter Burner Blade Fuel Pipe Assembly Nozzle Fuel Hose...
- Page 17 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Exploded View ST-125-OFR-E © 2021 Pinnacle Climate Technologies, Inc.
- Page 18 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Parts List: ST-125-OFR-E Fuel Filter Fuel Cap Wheel Axle Drain Bolt Height Adjustment Knob Return Fuel Line Intake Fuel Line Fuel Filter Assembly Fuel Pump Main PCB and Fuse...
- Page 19 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Information requirements for liquid fuel local space heaters Model(s): ST-70-SS-E Indirect heating functionality: No Direct heat output: 20,5 (kW) Indirect heat output: N/A (kW) Space heating emissions (*) Fuel Diesel/Paraffin Select fuel type...
- Page 20 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Information requirements for liquid fuel local space heaters ST-70T-SS-E Model(s): ST-70-SS-E Indirect heating functionality: No Direct heat output: 20,5 (kW) Indirect heat output: N/A (kW) Space heating emissions (*) Fuel Diesel/Paraffin Select fuel type...
- Page 21 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Information requirements for liquid fuel local space heaters Model(s): ST-125-OFR-E Indirect heating functionality: No Direct heat output: 36,6 (kW) Indirect heat output: N/A (kW) Space heating emissions (*)
- Page 22 6 20871 Vimercate (MB) Tel. 039-9590-200 Brvace 11 gmm@g-mm.si Fax 039-9590-313 1290 Grosuplje T: +386 01 78 66 500 Nederlands Stanley Black & Decker Netherlands B.V. www.stanleyworks.nl Slovenija F: +386 01 78 63 023 Postbus 83 Enduser.NL@SBDinc.com Estonia AS Tallmac www.tallmac.ee/est...
- Page 23 Manufactured by: Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium © 2020 Stanley Black & Decker, Inc.
