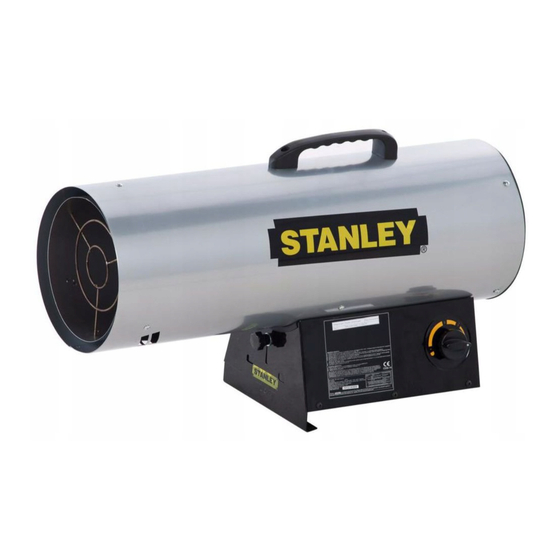

Stanley ST-40-GFA-E Instruction Manual
Mobile gas fired forced air heater
Hide thumbs
Also See for ST-40-GFA-E:
- Manual (78 pages) ,
- User manual (72 pages) ,
- Instruction manual (53 pages)
Subscribe to Our Youtube Channel
Related Manuals for Stanley ST-40-GFA-E
Summary of Contents for Stanley ST-40-GFA-E

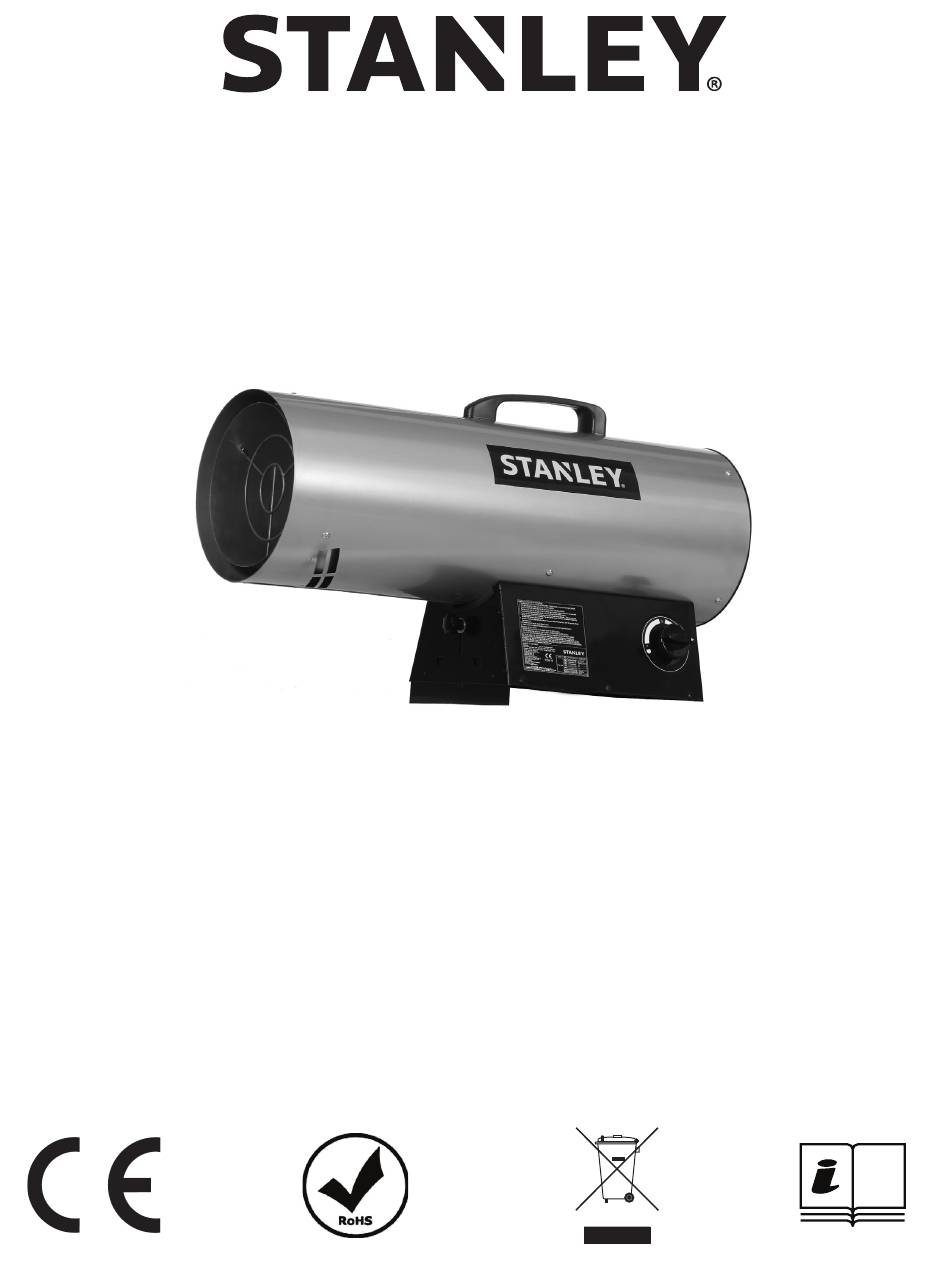

- Page 1 ST-40-GFA-E / ST-60V-GFA-E / ST-100V-GFA-E / ST-150V-GFA-E — MOBILE GAS FIRED FORCED AIR HEATER — NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED TO A POWER SOURCE,OR WHILE CONNECTED TO A FUEL SOURCE. 0359 STGA-421...
- Page 2 Read The Instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 3: Wiring Diagram
SPECIFICATIONS Specifications subject to change without notice Model # ST-40-GFA-E ST-60V-GFA-E ST-100V-GFA-E ST-150V-GFA-E THERMAL POWER (kW) 12.3 11.2-17.5 19.8-28.4 32.5-43.9 THERMAL POWER (GRAMS/HR) 770-1200 1451-2041 2359-3039 HEATING AREA (m FUEL CONSUMPTION (Kg/HR) 0.86 0.77-1.2 1.5-2.0 2.4-3.1 MAX OPERATING HOURS VOLTAGE... - Page 4 Read this User’s Manual carefully and completely before Not for home or recreational vehicle use. WARNING attempting to operate or service this heater. If the information The hose assembly shall be pro tected from in this manual is not followed exactly, a fire or explosion may traffic, building materials and contact with hot surfaces both result causing property damage, personal injury or loss of life.
- Page 5 CAUTION listed below. SERVICING INSTRUCTIONS ST-40-GFA-E : 9 Kg to 45 Kg fuel cylinder These instructions are intended to be used only by competent ST-60V-GFA-E : 9 Kg to 45 Kg fuel cylinder persons for carrying out all servicing operations authorized by the...
- Page 6 Plug Replacement RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE. WARNING NOTE: This section only applies to heaters sold or used in Great Britain. This appliance is supplied with a BS1363 3 pin The blue wire must be connected to the terminal plug fitted with a fuse.
-
Page 7: Troubleshooting Guide
STANLEY, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of Stanley Black & Decker, Inc. or an affiliate thereof. © 2017, Obelis S.A Registered Address:... -
Page 8: Exploded View
EXPLODED VIEW © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium... -
Page 9: Parts List
PARTS LIST ST-40-GFA-E / ST-60V-GFA-E / ST-100V-GFA-E / ST-150V-GFA-E Inner Shell / Combustion Chamber Base Height Controller Base Cover Inner Shell Cap Multi bracket Tubing Nozzle Nozzle Nut Handle Flange Hex Nut Fan Blade Cushion Pad Motor Rear Guard Round Bolt... - Page 10 Manufactured by: Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA © 2017 Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium...
