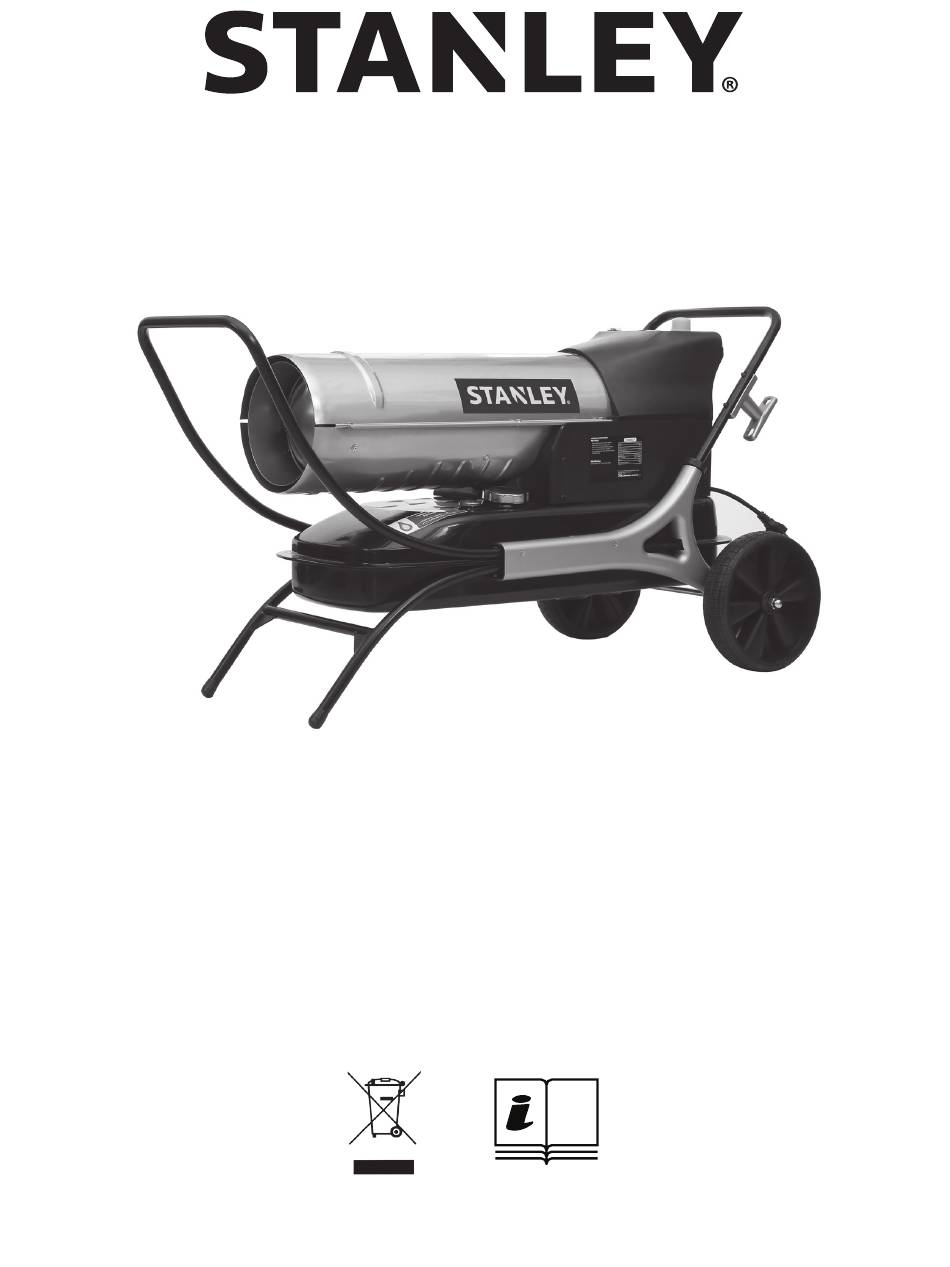

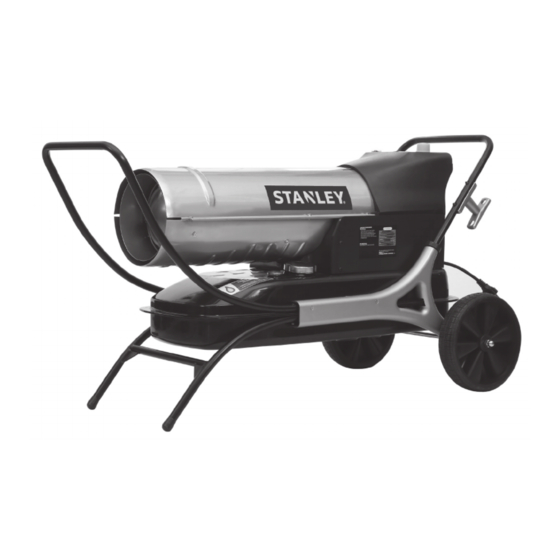

- Page 1 ST-45-KFA-E / ST-70T-KFA-E /ST-70TW-KFA-E / ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E NEVER LEAVE HEATER UNATTENDED WHILE BURNING, OR WHILE CONNECTED TO A POWER SOURCE. THIS PRODUCT IS NOT SUITABLE FOR PRIMARY HEATING PURPOSES. STKB-480...
- Page 2 SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 3 SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER Read The Instruction manual: When this symbol is marked on a product, it means that the instructon manual must be read. WARNING! Never touch heater until heater has cooled off. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and...
-
Page 4: Specifications
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SPECIFICATIONS Specifications subject to change without notice ST-45-KFA-E ST-70T-KFA-E ST-125T-KFA-E ST-175T-KFA-E ST-215T-KFA-E Model # HEATING AREA (m 13.2 20.5 36.6 51.2 63.0 THERMAL POWER (kW) FUEL CONSUMPTION (L/H) 5.07 TANK CAPACITY (L) 38 L MAX OPERATING HOURS VOLTAGE (AMPS) -
Page 5: Tools Needed
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER WHAT’S IN THE BOX (45-KFA / 70T-KFA) Cord Wraps (Optional) Carry Handle (1) Shown With Optional Cord Wraps Heater (1) 10 mm Screws (2) 15 mm Screws (2) Fuse (1) WHAT’S IN THE BOX (125T-KFA / 175T-KFA / 215T-KFA) Tools Needed: Tip: Be sure to remove the axle from the side of... -
Page 6: Safety Information
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER Safety Information NEVER use fuel that has been stored from one season to the next. Fuel deteriorates over time. OLD FUEL WILL NOT This is a parafin, direct-fired, forced air heater. It is primarily BURN PROPERLY IN THIS HEATER. -
Page 7: Operation
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER Operation Store heater in a dry, well-ventilated area! If your heater cannot be stored indoors, a tarp or weatherproof cover must be This heater is factory-tested for use with 1-K kerosene/paraffin, used to protect the heater. -
Page 8: Troubleshooting Guide
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER TROUBLESHOOTING GUIDE Problem Possible Cause Solution 1. Incorrect pump pressure 1. Adjust Pump Pressure 2. Dirty Input, Output or Lint Filter 2. Clean/replace Air Filter 3. Dirty Fuel Filter 3. Clean/replace Fuel Filter Heater fires, but Main PCB shuts 4. -
Page 9: Part Maintenance
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER PART MAINTENANCE BURNER HEAD SET SCREW SCREW MOTOR SHAFT SPARK PLUG FAN BLADE IGNITOR WIRE OUTPUT FILTER FUEL HOSE INTAKE FILTER AIR HOSE END FILTER COVER NOZZLE LINT FILTER AIR LINE FITTING FUEL FILTER FUEL LINE FITTING PHOTOCELL... - Page 10 SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER EXPLODED VIEW: ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E © 2020, Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium...
-
Page 11: Parts List
SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER PARTS LIST ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E Fuel Tank Drain Bolt Fuel Gauge Fuel Filter Fuel Cap Power Cord Power Switch Electronic Fuel Gauge Thermostat Control Knob Lower Shell Air Line Temperature Limit Switch Combustion Chamber Photocell Bracket... - Page 12 SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER EXPLODED VIEW: ST-45-KFA-E / ST-70T-KFA-E © 2020, Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium...
- Page 13 SOURCE NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER PARTS LIST ST-45-KFA-E / ST-70T-KFA-E Fuel Tank Fuel Gauge Fuel Filter Fuel Cap Power Cord Power Switch Thermostat Control Knob Air Line Thermostat Limit Control Photocell Bracket Fuel Line Photocell Burner Head Assembly Nozzle Kit Spark Plug Kit...
- Page 14 6 20871 Vimercate (MB) Tel. 039-9590-200 Brvace 11 gmm@g-mm.si Fax 039-9590-313 1290 Grosuplje T: +386 01 78 66 500 Nederlands Stanley Black & Decker Netherlands B.V. www.stanleyworks.nl Slovenija F: +386 01 78 63 023 Postbus 83 Enduser.NL@SBDinc.com Estonia AS Tallmac www.tallmac.ee/est...
- Page 15 Manufactured by: Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium © 2020 Stanley Black & Decker, Inc.
