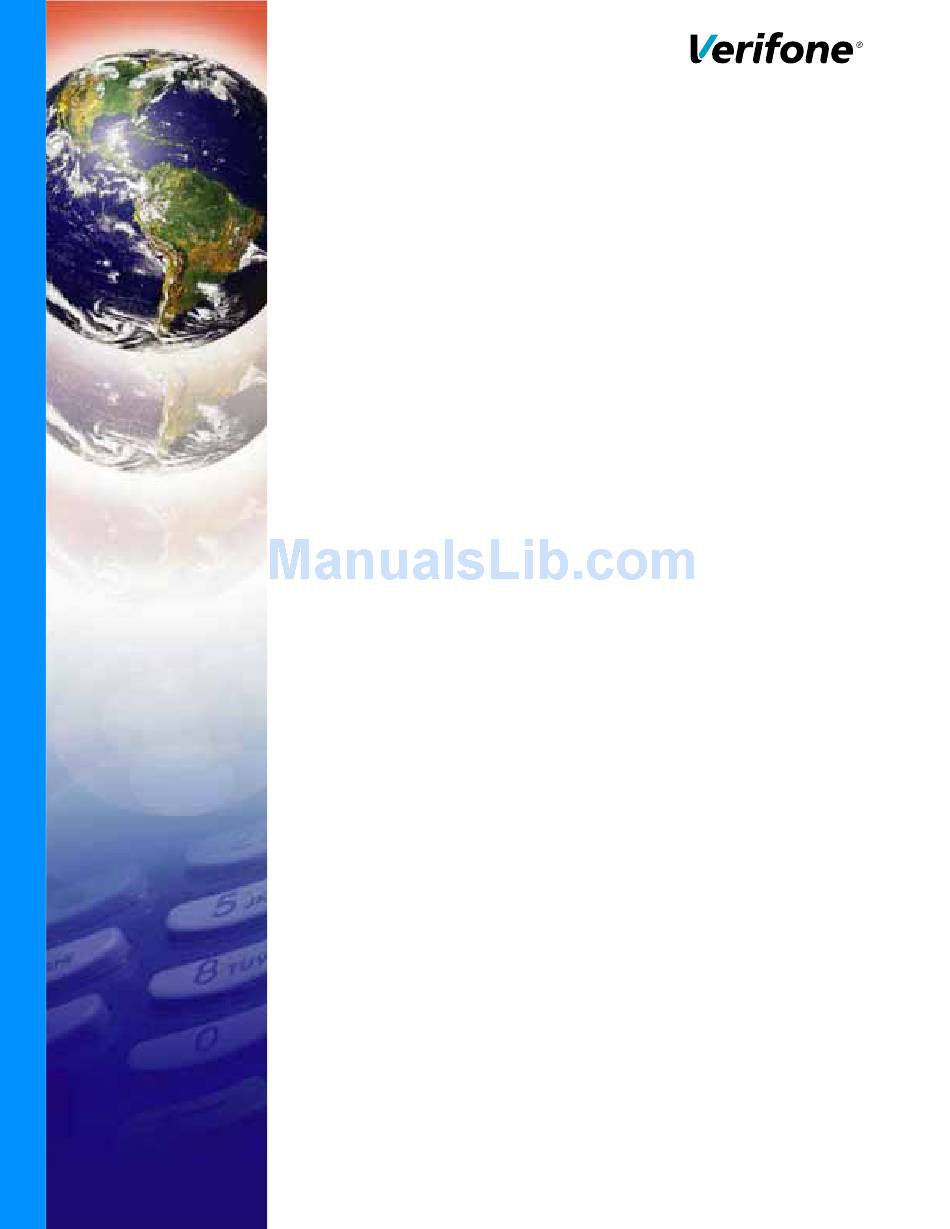

- Page 1 V205c Installation Guide Verifone Part Number DOC470-103-EN-A, Revision A...
- Page 2 Verifone, Inc. The information contained in this document is subject to change without notice. Although Verifone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose.
-
Page 3: Table Of Contents
Connecting ECRs to the V205c ........21... - Page 4 External Dimensions ......... . . 25 Weight.
-
Page 5: Preface
This guide is organized as follows: Chapter 1, Overview. Provides an overview of a V205c device. Chapter 2, Setup. Explains how to set up and install the V205c and establish connections with other devices. Chapter 3, Specifications. Discusses the power requirements and dimensions of V205c. -
Page 6: Acronym Definitions
REFACE Guide Conventions Table 1 Document Conventions Convention Meaning Example The pencil icon is used to RS-232-type devices do not work NOTE highlight important information. on the communication port. The caution symbol indicates The unit is not waterproof or CAUTION hardware or software failure, or dustproof, and is intended for loss of data. - Page 7 REFACE Guide Conventions Table 2 Acronym Definitions (continued) Acronym Definitions Universal Serial Bus Verifone Part Number V205 NSTALLATION UIDE...
- Page 8 REFACE Guide Conventions V205 NSTALLATION UIDE...
-
Page 9: Hapter
The V205c offers several communication options, enhanced display, increased processing power and two USB peripheral ports. The V205c terminal uses a robust, sleek, and highly functional design. With modular communication options, enhanced color display, increased processing power, expanded memory, and two USB peripheral ports. -
Page 10: Rear Compartments
VERVIEW V205c Terminal Rear Compartments After removing the rear covers, the underside of the V205c shows the following: Figure 2 V205c Card Compartment View • Dual MSAM slots • Micro SD Card slot Figure 3 V205c Port Compartment View •... -
Page 11: Features And Benefits
Meets ISO and ANSI standards for PIN encryption, key management, and MAC. • The VeriShield security architecture meets published specifications for PCI PTS POI and provides sophisticated file authentication to prevent execution of unauthorized software. • Key injection simplified and secured with Verifone’s SecureKit key loading software. V205 NSTALLATION UIDE... -
Page 12: Countertop Performance In A Hand-Over Design
VERVIEW Features and Benefits Countertop • The 32-bit processing and multi-tasking capabilities ensures fast processing of Performance in a payment, payment-related, and value-added applications. Hand-Over Design • Exceptional display and printer graphics-handling capabilities that quickly render logos, graphical fonts, and character-based languages. V205 NSTALLATION UIDE... -
Page 13: Setup
• A flat support surface such as a countertop or a table, • Near a power outlet and the terminal or computer that connects to the V205c. WARNING For safety, do not string cables or cords across a walkway. Environmental •... -
Page 14: Electrical Considerations
PIN Protection Measures • Do not use the V205c outdoors. CAUTION The V205c is not waterproof or dustproof and is intended for indoor use only. Any damage to the unit from exposure to rain or dust can void any warranty. Electrical •... -
Page 15: Unpacking Shipping Carton
• Offer PIN security literature at the point of sale • Use signage to limit the view of the V205c to just that of the cardholder. Unpacking Carefully inspect the shipping carton and its contents for possible tampering or Shipping Carton damage. -
Page 16: Installing Or Replacing Msam And Micro Sd Cards
Remove the clear protective film from the display. Replace all the packing materials, close the lid, and save the carton for repacking or moving the V205c unit in the future. Do not use a unit that has been tampered with or otherwise damaged. This unit WARNING comes equipped with tamper-evident label. -
Page 17: Changing Or Installing Micro Sd Card
ETUP Installing or Replacing MSAM and Micro SD Cards Remove the old card, if any, and insert the MSAM card carefully into the slot (with the gold contacts facing downward) until fully inserted. Figure 6 Inserting MSAM Card NOTE Insert the card with the card’s gold contacts facing away from you, toward the unit. Take note of the notched edge on the MSAM card for quick orientation. -
Page 18: Establishing Communication
ETUP Establishing Communication If you are finished replacing or inserting cards, put the rear cover back in place. Establishing You can connect the V205c to your network by using the following options: Communication • Connecting by Telephone Line • Connecting by Ethernet Cable. -
Page 19: Loading Printer Paper
Paper install paper in the printer. The V205c uses a roll of 57 mm wide x 40 mm, single-ply, thermal sensitive paper. A pink out-of-paper indicator line appears on the edge of the paper before the end of the roll. After this line appears, there is enough paper remaining on the roll to conclude at least one more transaction. -
Page 20: Optional Device Connections
Different terminals support different devices, so for more information about optional devices, please contact your Verifone distributor. Optional Device You can connect several devices to your V205c. You can use the following cables Connections for different types of device connections: •... -
Page 21: Connecting Ecrs To The V205C
Power Supply Verifone ships the power supply unit with the terminal as required. Contact your Verifone representative If you have changed the context in which the terminal is used or have questions about which power supply should be used. CAUTION Using an incorrectly rated power supply can damage the unit or cause it not to work properly. -
Page 22: Smart Card Reader
When the terminal has power and an application is loaded, the application starts after the initial Verifone copyright screen and displays a unique copyright screen. If no application is loaded, DOWNLOAD NEEDED appears on the display after the initial Verifone copyright screen. -
Page 23: Magnetic Stripe Card Reader Use
ETUP Magnetic Stripe Card Reader Use Magnetic Stripe The V205c has a magnetic card reader that uses a triple track stripe reader. This Card Reader Use gives the unit greater reliability over a wide range of swipe speeds and operating environments. -
Page 24: Periodic Inspection
If any device is found in tamper state, please remove it immediately from service. NOTE Keep it available for potential forensic investigation, and notify your company security officer and your local Verifone representative or service provider. For more information on contacting Verifone, refer to Service and Support. -
Page 25: Hapter
HAPTER Specifications This chapter discusses power requirements, dimensions, and other specifications of the V205c terminal. V205c Terminal Refer to the following technical information for the V205c terminal: Unit Power • 8 V DC, 2.25 A Operating Power: Requirements Temperature •... -
Page 26: Connectivity
PECIFICATIONS V205c Terminal Connectivity • Ethernet RJ45 • Speed 10 Base-T /100 Base-TX • Compliant with IEEE802.3 LAN networks. • Dial modem RJ11 • V.92 standard supported, line speeds of up to 56 Kbps • USB type-A receptacle • USB2.0 high speed •... -
Page 27: Hapter
HAPTER Troubleshooting Guidelines This chapter lists typical malfunctions that may occur while operating a V205c device and the appropriate corrective action. If the problem persists – even after performing the outlined guidelines, or if the problem is not described, contact your local Verifone representative for assistance. - Page 28 ROUBLESHOOTING UIDELINES Transactions Fail To Process • If the problem persists, contact your local Verifone representative. Check Smart Card Reader • Perform a test transaction using several different smart cards to ensure the problem is not a defective card. •...
-
Page 29: Hapter
Never use thinner, trichloroethylene, or ketone-based solvents – they can deteriorate plastic or rubber parts. Because the V205c can be damaged by liquid, do not spray cleaners or other solutions directly onto the keypad or display. Always apply the cleaner to a cloth before cleaning the device. - Page 30 You will be issued MRA number(s) and the fax will be returned to you. NOTE One MRA number must be issued for each V205c unit you return to Verifone, even if you are returning several of the same model. Describe the problem(s).
-
Page 31: Accessories And Documentation
Monday - Friday, 7 A.M. - 5 P.M., MST • International – Contact your Verifone representative Cables Contact your local Verifone distributor to determine which cable fits your needs. CBL159-312-01-A LAN cable for Ethernet connections (CAT5, 2.0 m). CBL000-051-02-A RJ9 to DB9 cable, 2.0 m... - Page 32 ERVICE AND UPPORT Accessories and Documentation V205 NSTALLATION UIDE...
-
Page 33: A P P En Di
être endommagé, en label. If a label or component aviser immédiatement la compagnie maritime appears damaged, immediately et votre représentant Verifone ou prestataire notify the shipping company and de services. your Verifone representative or service provider. - Page 34 Electrostatic discharges décharges électrostatiques. Les décharges can damage the equipment. électrostatiques peuvent endommager le Verifone recommends using a matériel. Verifone recommande d'utiliser un grounded anti-static wrist strap. bracelet anti-statique à la terre. Caution Setup page...
- Page 35 Caution and Warning Messages V205 NSTALLATION UIDE...
- Page 36 Verifone, Inc. 1-800-Verifone www.verifone.com V205c Installation Guide Verifone Part Number DOC470-103-EN-A, Revision A...
