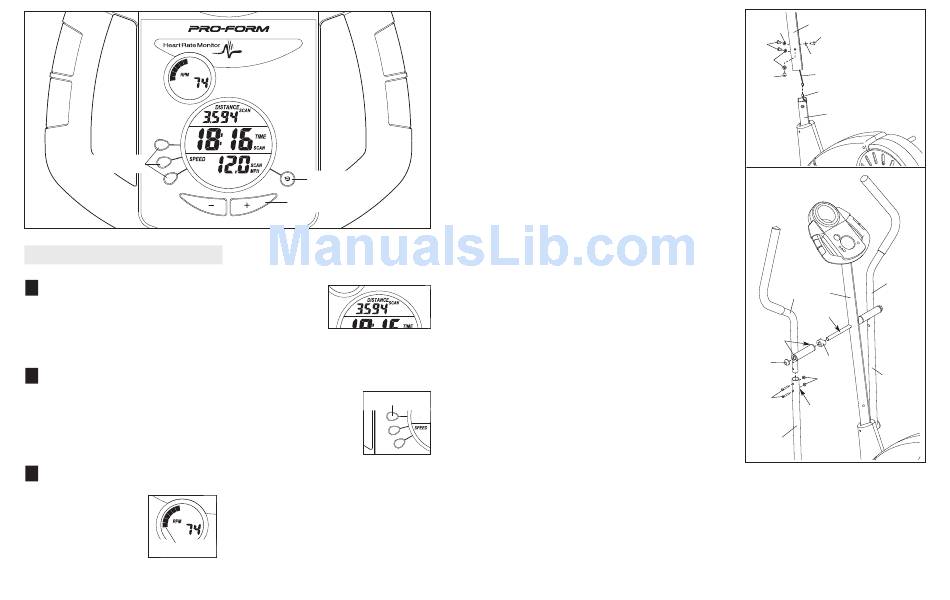

Display Buttons
HOW TO USE THE CONSOLE
Turn on the console.
1
Note: The console requires four 1.5V "D" batteries
(see assembly step 3 on page 6).
To turn on the console, press the On/Reset button
or begin pedaling. (See the drawing above to
identify the On/Reset button.)
Begin pedaling and change the resistance of
2
the pedals as desired.
As you pedal, change the resistance of the ped-
als by pressing the + and – buttons below the
large display. There are ten resistance levels—
level 10 is the most challenging. Note: After the
buttons are pressed, it will take a few seconds for
the resistance to reach the selected setting.
Follow your progress with small display and
3
the large display.
The small display will
show your pedaling pace,
in revolutions per minute
(RPM). The indicator bar
in the small display will
increase or decrease in Indicator Bar
length as you increase or
On/Reset Button
Resistance Buttons
decrease your pedaling pace. The small display
will also show your heart rate when you use the
handgrip pulse sensor (see step 4 on page 11.)
The upper sec-
tion of the large
display will show
the distance you
have pedaled and
the numbers of
calories and fat calories you have burned (see
FAT BURNING on page 13 for an explanation of
fat calories). The display will change from one
number to the next every few seconds.
To view only the distance
Upper Button
you have pedaled or the
number of calories or fat
calories you have burned,
press the upper button on
the left side of the large
display until only the word
DISTANCE, CALORIES, or
FAT CALORIES appears in the upper section of
the large display. Make sure that the word SCAN
does not appear. To again view the distance you
have pedaled and the numbers of calories and
fat calories you have burned, press the upper
button until the word SCAN reappears.
10
5. Whilst another person holds the Upright (2) near the
Frame (1), connect the Upper Wire (44) to the Sensor
Wire (53).
Push the excess wire down into the Frame (1). Slide
the Upright (2) onto the Frame. Be careful to avoid
pinching the wires. Attach the Upright with four M8 x
19mm Button Screws (68) and four M8 Split Washers
(59). Do not tighten the Button Screws yet.
6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Arms (5); make sure that the Handlebar
Arm is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Arm with two M8 x 38mm Button Bolts (50)
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Apply a small amount of the included grease to the left
axle on the Upright (2).
Make sure that there are two Small Handlebar
Bushings (49) in the Left Handlebar (6). Slide a
Handlebar Spacer (47) and the Left Handlebar onto the
left axle on the Upright (2) as shown. Make sure that the
Handlebar Spacer is turned so the curved side is fac-
ing the Upright. Tap an Axle Cap (14) onto the axle.
Repeat this step to assemble the Right Handlebar (8)
and the other Handlebar Arm (5).
5
2
Make sure that
59
68
the wires do
68
not get pinched
and damaged
59
59
during this
step.
44
68
53
1
6
8
2
6
Grease
49
47
14
5
38
50
Hexagonal
Holes
5
