5.
Connect the AutoView Wireless transmitter cables into the computer's PS/2 keyboard (purple
connector), PS/2 mouse (green connector) and monitor connections (blue connector).

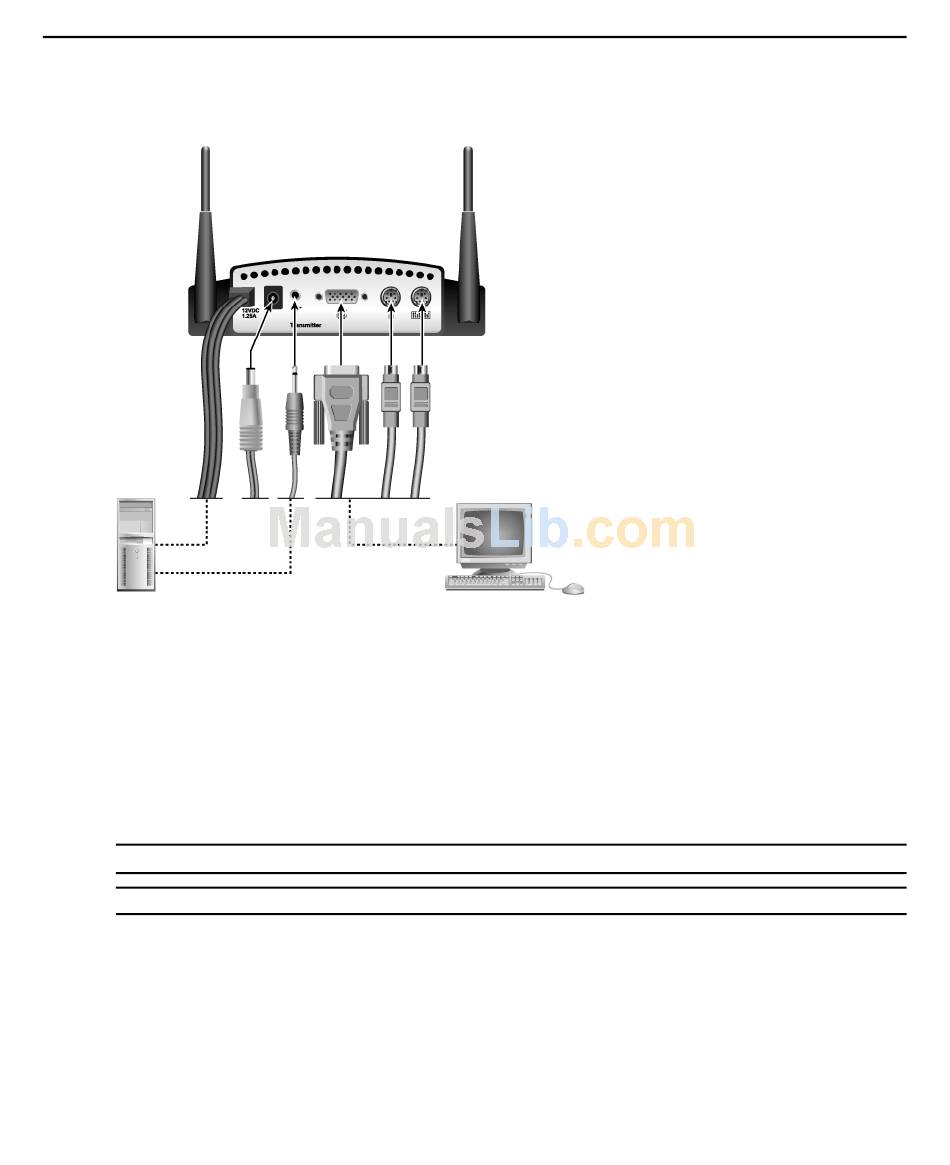

Figure 2.2: AutoView Wireless Transmitter Installation Example
6.
Using the supplied audio cable, connect one end to the AutoView Wireless transmitter's
audio input connection (lime green connector) and the other end to the computer's audio
output connection (lime green connector).
7.
Optionally, you may connect a local keyboard, monitor and mouse to the ports located on the rear
of the transmitter.
8.
Connect your AutoView Wireless transmitter to an AC power source with one of the power sup-
plies included with your AutoView Wireless switch.
NOTE: The transmitter must be powered up before the computer.
NOTE: Use only an Avocent-supplied power supply.
9.
Power up your computer.
10. Repeat this step for each computer that you wish to attach.
To cascade a KVM switch:
1.
Power down the second switch and all computers attached to it.
2.
Unplug any peripherals (keyboard, mouse, monitor and speakers with built-in amplifiers, if
applicable) from the switch.
Chapter 2: Installation
5
