Philco PDT 671 User Manual

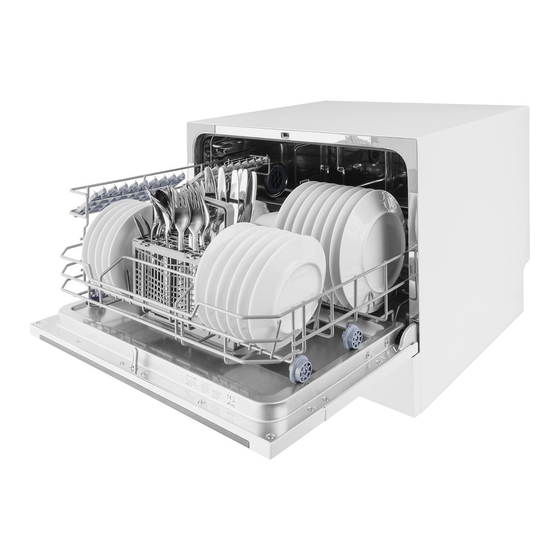

Table top dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

TABLE TOP DISHWASHER
USER'S MANUAL
PDT 671

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDT 671 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PDT 671

Summary of Contents for Philco PDT 671

  • Page 1 TABLE TOP DISHWASHER USER’S MANUAL PDT 671...
  • Page 2 Dear customer, thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2016, Fast ČR, a. s. 08/2016...

  • Page 3: Table Of Contents

    CONTENTS 1. IMPORTANT SAFETY INFORMATION ..................... 3 2. QUICK OPERATION GUIDE ........................9 3. OPERATION INSTRUCTION ........................11 4. PRIOR USING FOR THE FIRST TIME ....................... 12 5. LOADING THE DISHWASHER BASKETS ....................17 6. STARTING A WASHING PROGRAMME ....................21 7.
  • Page 4 Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. Pass it on to any subsequent owner of the appliance. This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Trou- bleshooting Tips, etc.

  • Page 5: Important Safety Information

    1. IMPORTANT SAFETY INFORMATION WARNING! When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in...
  • Page 6 or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1) This appliance is for indoor household To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance.
  • Page 7 Do not modify the plug provided with the appliance; If it does not fi t the outlet. Have a proper outlet installed by a qualifi ed electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
  • Page 8 Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Children should be supervised to ensure that they do not play with the appliance. The door should not be left open, since this could increase the risk of tripping.
  • Page 9 Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: PE — for polyethylene, e.g. sheet wrapping material PS — for polystyrene, e.g. padding material POM — polyoxymethylene, e.g. plastic clips PP —...
  • Page 10 for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city offi ce and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste.

  • Page 11: Quick Operation Guide

    2. QUICK OPERATION GUIDE For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. Compartment A: With each wash cycle. Compartment B: For programmes with pre-wash only.
  • Page 12 • 1. A running cycle can only be modifi ed if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the • Changing the detergent dispenser must be refi...

  • Page 13: Operation Instruction

    3. OPERATION INSTRUCTION IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the fi rst time. Control Panel Power Button: To turn on/off the power supply. Washing Program Selector: Press the button to select wash cycles. Program indicator light.

  • Page 14: Prior Using For The First Time

    4. PRIOR USING FOR THE FIRST TIME NOTE: If your model have no water softener, you may skip this section. A. Loading the Salt Into the Softener Always use salt intended for use with dishwasher. The salt container is located beneath the basket and should be fi lled as follows: Attention! Only use salt specifi...

  • Page 15: Adjusting Salt Consumption

    Adjusting Salt Consumption Step 1: Enter the status of salt adjustment Close the door, within 60 seconds after power on, press Start/Pause button and hold for 5 seconds, the machine will enter setting mode. Step 2: select a certain level of salt consumption Press the Start/pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;...
  • Page 16 Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
  • Page 17 Adjusting Rinse Aid Dispenser Adjust lever The rinse aid dispenser has six or four settings. Always start with the (Rinse) dispenser set on “4”. If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to “5”.
  • Page 18 Amount of Detergent to Use Push latch to open A For main wash detergent Fill in Detergent A For pre-wash detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: A The place of main wash cycle detergent placed. B The place of pre-wash cycle detergent placed.

  • Page 19: Loading The Dishwasher Baskets

    WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children. 5. LOADING THE DISHWASHER BASKETS Recommendation Consider buying utensils which are identifi ed as dishwasher-proof. Use a mild detergent that is described as ‘kind of dishes’ . If necessary, seek further information from detergent manufacturers.
  • Page 20 To avoid damage to glasses, they must not touch. Load large items which are most diffi cult to clean into the basket. Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket. Please do not overload your dishwasher.

  • Page 21: Cutlery Basket

    Cutlery Basket Position the dishes and cookware so that they do not get moved by the spray of water. Forks Soup spoons Dessert spoons Teaspoons Knives Serving spoons Gravy ladles Serving forks EN - 19 Copyright © 2016, Fast ČR, a. s. 08/2016...
  • Page 22 WARNING! Do not let any item extend through bottom. Always load sharp utensils with the sharp point down! For personal safety and a top quality clean, make sure place the silverware In the basket as follows: They do not nest together. Place silverware with handles-down.

  • Page 23: Starting A Washing Programme

    6. STARTING A WASHING PROGRAMME Wash Cycle Table Cycle Selection Description Detergent Running Energy Water Rinse Program Information of Cycle pre/main time(min) (Kwh) For heaviest soiled Pre-wash(50°C) crockery, and Wash (70 °C) normally soiled Rinse 3/15g pots, pans, dishes Rinse (or3in1) Intensive Rinse (70 °C)

  • Page 24: Turning On The Appliance

    *EN 50242: This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows: Capacity: 6 setting Rinse aid setting: 6 The power consumption of off -mode is 0.45W left-on mode is 0.49W Turning On the Appliance Starting a wash cycle...

  • Page 25: Maintenance And Cleaning

    Forget to Add a Dish? A forgotten dish can be added any time before the detergent cup opens. Press the Start/Pause button Open the door a little to stop the washing. spray arms stop working, you can open the door completely. Add forgotten dishes.

  • Page 26: Filter Assembly

    Filter assembly The fi lter effi ciently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the fi lter assembly must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapping in the fi...

  • Page 27: Cleaning The Filter

    NOTE: Inspect the fi lters for blocking after every time the dishwasher has been used. By unscrewing the coarse fi lter, you can remove the fi lter system. Remove any food remnants and clean the fi lters under running water. NOTE: The entire fi...

  • Page 28: How To Keep Your Dishwasher In Shape

    NOTE: If your dishwasher cannot work because of the ice, please contact authorised service person. Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, check- ing that their rotary movement is in no way impeded.

  • Page 29: Installation Instruction

    8. INSTALLATION INSTRUCTION Attention! The installation of the pipes and electrical equipments should be done by professionals. Warning! Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock. Installation preparation The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.

  • Page 30: Water Connection

    Water Connection Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities.

  • Page 31: Start Of Dishwasher

    How to Drain Excess Water From Hoses If the sink is 1000 higher from the fl oor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

  • Page 32: Troubleshooting Tips

    9. TROUBLESHOOTING TIPS Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Replace fuse or reset circuit breaker. Remove any Fuse blown, or the circuit other appliances sharing the same circuit with the breaker tripped.

  • Page 33: Error Codes

    Problem Possible Causes What To Do The dishes were not loaded See notes in “Loading the Dishwasher Baskets”. correctly. The programme was not Select a more intensive programme. See “Wash powerful enough. Cycle Table”. Not enough detergent was Use more detergent, or change your detergent. dispensed.

  • Page 34: Technical Information

    10. TECHNICAL INFORMATION Height: 438mm Width: 550mm Depth: 500mm Voltage connected Load: see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 6 Place settings EN - 32 Copyright © 2016, Fast ČR, a. s. 08/2016...
  • Page 35 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer Philco Type / Description PDT 671 Standard place settings Energy effi ciency class Annual energy consumption 174 kWh Energy consumption of the standard cleaning cycle 0.61 kWh Power consumption of off...

  • Page 36: Disposal

    11. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
