Physical Dimensions

BX-320-DCxxxxxx
*1: Ensure that the penetration depth (L) from the chassis surface to the screw tip is 3 mm or lower for the top and
bottom and 4 mm or lower for the back.

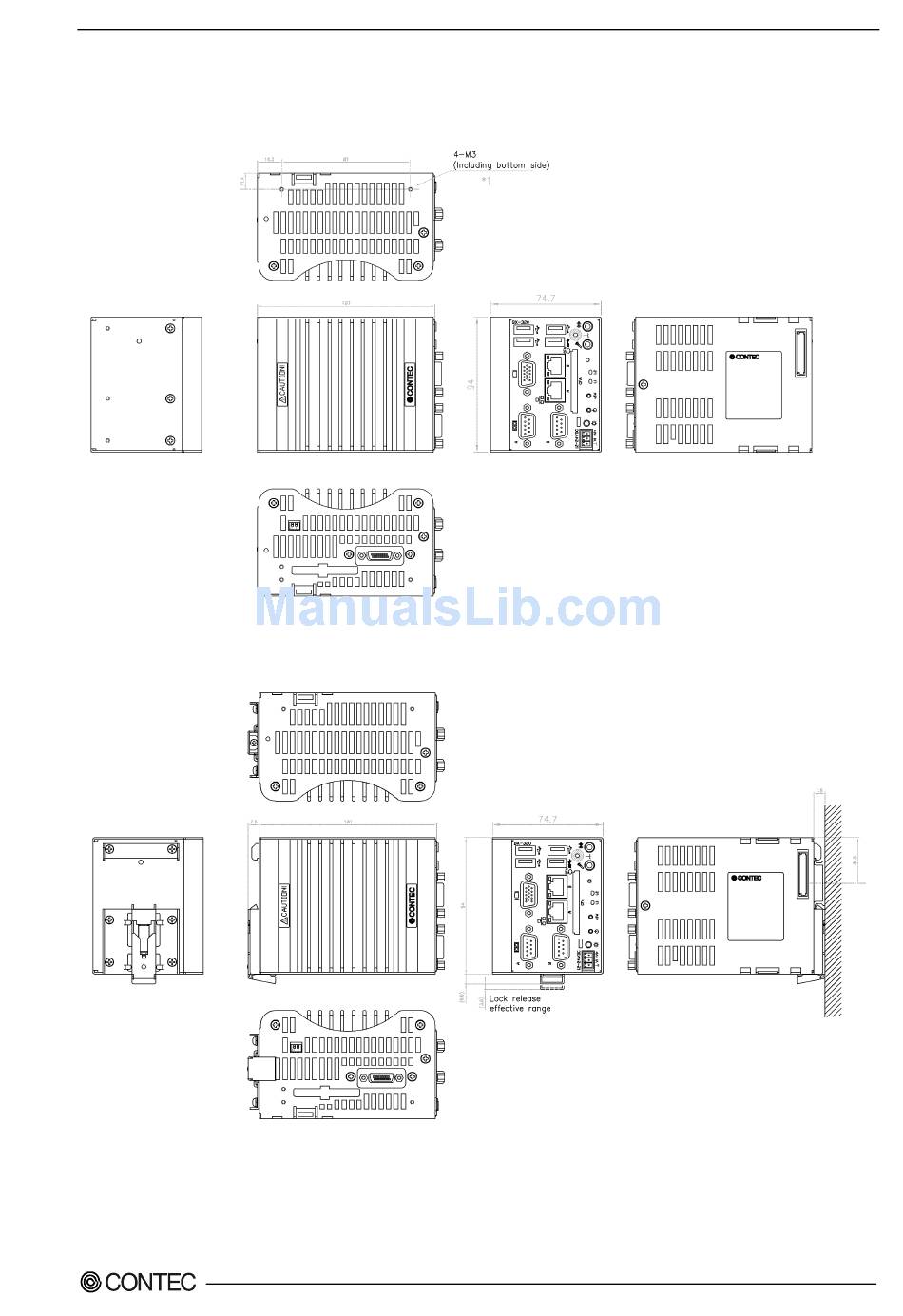

Figure 2.1. BX-320-DCxxxxxx (Including screw hole dimensions *1)
*2: To secure this product with the included fittings, use the included screws (M3x7). In other situations, use screws
with a penetration depth (L) from the chassis surface to the screw tip of 3 mm or lower.
Figure 2.2. BX-320-DCxxxxxx (When mounting the DIN rail installation metal fittings *2)
