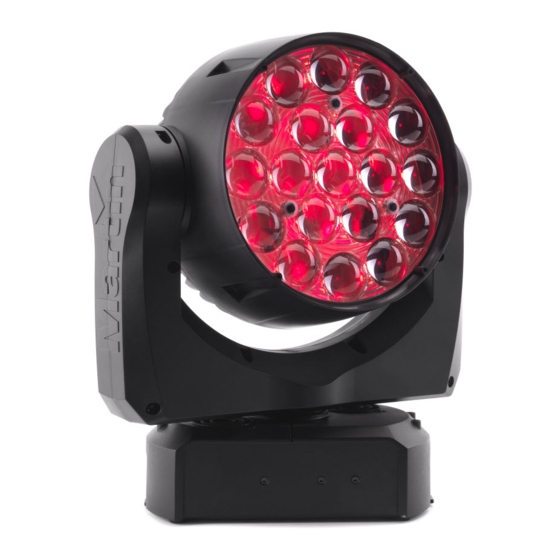

MAC Aura FX Guide
This guide gives details of the effects available on the FX selection DMX channels 15 and 17 in the
MAC Aura™.
Aura Sync
Dimmer sync
DMX values
10 - 12
Percent
4
Input parameters
Dimmer
Output parameters
Dimmer Aura
Priority
Overrides any other dimmer Aura DMX input value
Details
•
Any dimmer settings from the Beam are applied to the Aura section of the fixture.
•
Beam and Aura act in perfect sync and all fades, dimming smoothing, curves, tracking, etc.
are applied to both sections.
Strobe sync
DMX values
13 - 15
Percent
5
Input parameters
Strobe
Output parameters
Strobe Aura
Priority
Overrides any other strobe Aura DMX input value
Details
•
Any strobe settings from the Beam are applied to the Aura section of the fixture.
•
Beam and Aura act in perfect sync, and all shutter functions such as random and pulsing FX
stay synchronized.
Martin Professional™ MAC Aura™ FX Guide Rev. A
Page 1/1
Advertisement
Related Manuals for Martin MAC Aura FX
Summary of Contents for Martin MAC Aura FX
- Page 1 Any strobe settings from the Beam are applied to the Aura section of the fixture. • Beam and Aura act in perfect sync, and all shutter functions such as random and pulsing FX stay synchronized. Page 1/1 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 2 Any dimmer, strobe and color (RGB or color wheel) settings from the Beam are applied to the Aura section of the fixture. • All Aura parameters are synchronized to Beam parameters. Page 2/2 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 3 Strobe flash bounces from Beam to Aura and performs two flashes each time • Beam flash – Off - Beam flash – Off - Aura flash- Off - Aura flash- Off Page 3/3 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 4 Fixture starts with Aura and Beam both dimmed to zero. • Aura dimmer ramps to level. • Aura dimmer snaps to zero and Beam performs one single strobe flash at the same time. Page 4/4 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 5 The Beam color RGB value (from RGB or the color wheel) is used as an input to determine the current color position. Aura is then shifted around on the color circle within the same saturation range. Example of 180° offset visualized on the color circle: http://www.colorjack.com/sphere/ Page 5/5 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 6 The strobe channel of the fixture gives speed control including all ramps, random settings, pulses, etc. • The alternate color is set as an absolute using the color wheel. Page 6/6 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 7 • The alternate color is set relative to the main color using a color circle degree offset as with the “Aura color offset” effect. Page 7/7 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 8 Zoom fades from current zoom value to maximum zoom. • At the same time color fades from curent RGB values to color wheel value. • Both snap back to their start values together. Page 8/8 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 9 Output parameters Zoom Priority Zoom value is used to set base level FX Adjust Speed Details • Zoom ramps up from minimum zoom to base level. • FX Adjust sets speed. Page 9/9 Martin Professional™ MAC Aura™ FX Guide Rev. A...
- Page 10 Zoom Priority Zoom value is used to set base level FX Adjust Speed Details • Zoom ramps down from base level to minimum zoom. • FX Adjust sets speed. www.martin,com Page 10/10 Martin Professional™ MAC Aura™ FX Guide Rev. A...
