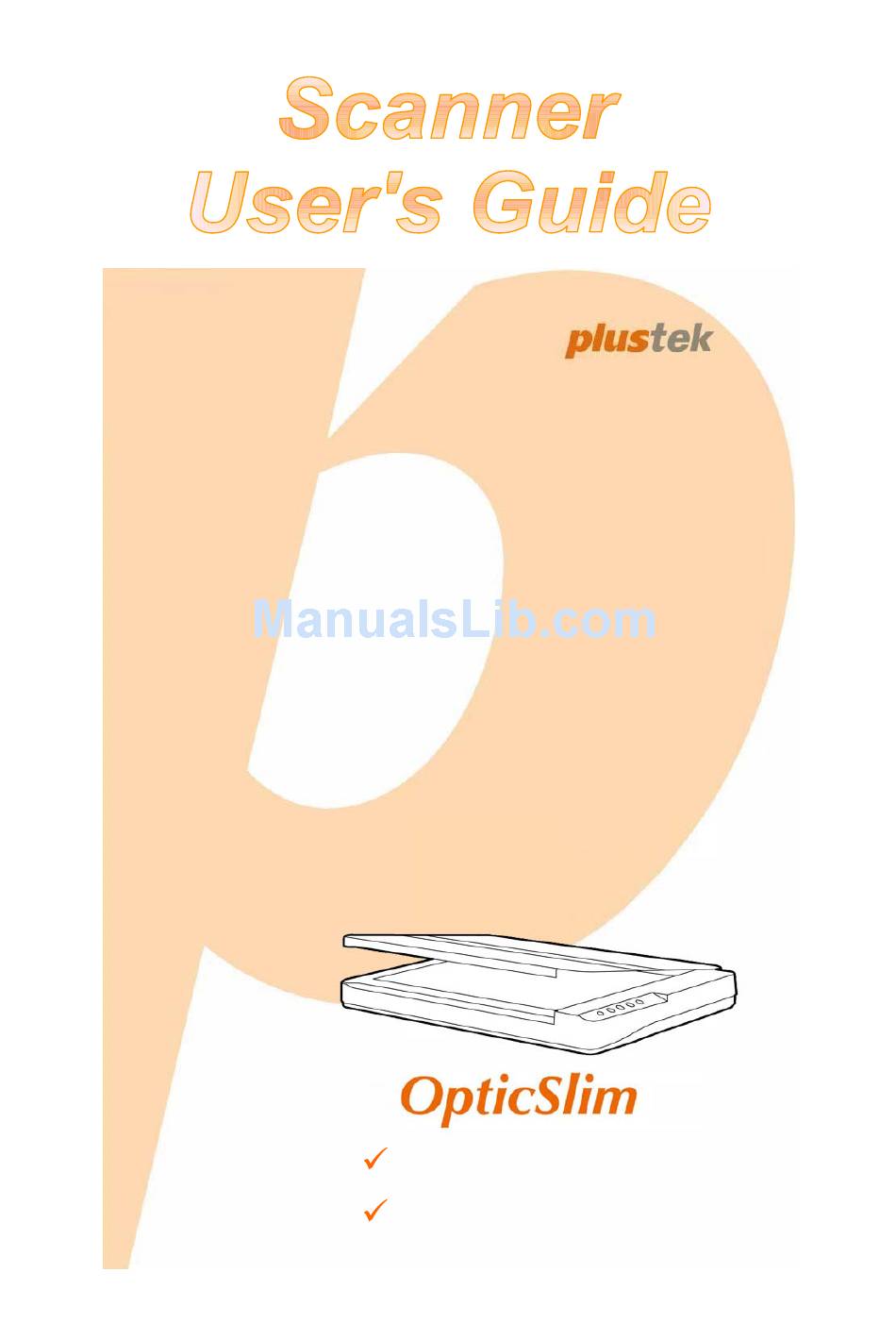

- Page 1 Installation Usage & Maintenance...
- Page 2 Trademarks © 2017 Plustek Inc. All rights are reserved. No portion of this document may be reproduced without permission. All trademarks and brand names mentioned in this publication are property of their respective owners. Liability While all efforts have been made to ensure the accuracy of all contents in this manual,...
-
Page 3: Table Of Contents
Table of Contents ....................1 NTRODUCTION How to Use This Guide....................1 Conventions of This Guide ..................2 A Note about Icons ....................... 2 Safety Precautions...................... 2 Minimum System Requirements ................. 3 Box Contents ......................4 Scanner Overview ...................... 4 I. I ..............6 HAPTER NSTALLING THE... -
Page 4: Introduction
NTRODUCTION Thank you for choosing us as your scanner supplier. Your new scanner will improve the professionalism of your day-to-day computing tasks by allowing you to input images and electronic text into your computer system. Like all of our products, your new scanner is thoroughly tested and backed by our reputation for unsurpassed dependability and customer satisfaction. -
Page 5: Conventions Of This Guide
ONVENTIONS OF UIDE Bold —Represents commands or contents on your computer screen. ALL CAPS —Important note or first use of an important term in a chapter. Italic —Represents buttons on your scanner OR important notes. This guide uses the following icons to point out information that deserves special attention. -
Page 6: Minimum System Requirements
quickly unplug the AC adapter during emergencies. 4. Damaged wire could cause fire or electrical shock. Keep the power cord straight and without being twisted, bended, or scraped. 5. Unplug this device if you don’t need to use it for a certain period of time, such as, during night or long weekend, to avoid any risks of causing fire. -
Page 7: Box Contents
ONTENTS 1. Scanner 2. USB Cable 3. AC Adapter 4. Quick Guide CANNER VERVIEW 1. DOCUMENT COVER— Helps keep the paper in place and protects the scanner glass. 2. DOCUMENT PAD— Keeps the paper in place and improves accuracy of image quality. - Page 8 5. POWER BUTTON— Use this to turn the scanner ON or OFF. POWER LED— Indicates the scanner status. Light Status Blue The scanner is turned on, ready to scan images. The scanner is in standby mode if it is idle for 10 minutes. The scanner is off, either because the power is not turned on, or because the power cord is not properly plugged into an AC power outlet.
-
Page 9: Chapter I. Installing The Scanner
EQUIREMENTS Your scanner comes with the scanner’s driver and the task management software (Plustek MacAction). All of these software applications use approximately 400 megabytes of hard disk space after they are installed into your computer. To ensure ample room for the installation, as well as for scanning and saving images, a minimum of 1 GB of hard disk space is recommended. -
Page 10: Installing And Setting Up The Scanner
NSTALLING AND ETTING UP THE CANNER Please follow the step-by-step procedures described below to install the Plustek scanner. Choose a Proper Site First! Always place your scanner on a level, smooth strong surface before proceeding the scanner setup or any scanning task. - Page 11 1. Plug the AC adapter into the scanner’s power receptor. 2. Plug the other end of the power cable into a standard AC power outlet. 3. Plug the square end of the included USB cable to the USB port at the rear of the scanner.
- Page 12 5. If you plan to connect your scanner to a USB hub , make sure that the hub is connected to the USB port in your computer. Next, connect the scanner to the USB hub. 6. Plug the rectangular end of another USB cable to the USB hub at the rear of this scanner.
-
Page 13: Step 2. Installing The Software
1. Switch the scanner power on. 2. Download the Mac scanner driver from the Support Page of the company website, and the setup file icon will show on the desktop of your Mac OS X. 3. Double-click on the setup file icon, and a window will pop up displaying the file folder. - Page 14 3. Do one of the following to open the Button Configuration window: Double-click the icon in Finder > Applications > Plustek > Your scanner model name. Click the icon in the Dock. Right-click the icon in the Dock, and then choose Button Configuration…...
-
Page 15: Chapter Ii. Scanning
II. S HAPTER CANNING Your scanner needs to be driven by certain type of software program. Since all documents or images (whether text or pictures) that are acquired from the scanner are treated by your computer as images, most scanning will probably be done from an image-editing program where you can view, edit, save and output the scanned images. -
Page 16: Placing Documents
LACING OCUMENTS 1. Open the scanner's document cover. 2. Place the document onto the scanner glass headfirst and face-down. Align the top left corner of the document with the arrow on the reference mark. 3. Gently close the document cover. CANNING OCUMENTS There are 3 different ways to operate the scanner:... -
Page 17: Scanning From The Scanner's Panel Or On-Screen Macaction's Execute Menu
There are three ways to configure or view the button settings of MacAction: Double-click the icon in Finder > Applications > Plustek > Your scanner model name. Click the icon... - Page 18 Right-click the icon in the Dock, and then choose Button Configuration in the pop-up menu that opens. Within the “Button Configuration” window, you can find a row of icons running through the left side of the window. Each icon corresponds to a button on your scanner's panel (as well as MacAction's on-screen Execute menu).
-
Page 19: Chapter Iii. Care And Maintenance
III. C HAPTER ARE AND AINTENANCE Your scanner is designed to be maintenance-free. However, constant care and maintenance can keep your scanner working smoothly. LEANING THE CANNER Paper powder, dust, ink and toner from paper being scanned may make the scanner glass dirty, which leads to poor image quality or document-feeding errors. -
Page 20: Calibrating The Scanner
The following describes how to calibrate the scanner: 1. Click Finder > Applications > Plustek > Your scanner model name > Calibration Wizard. 2. Click on the Start button to begin the calibration process. -
Page 21: Standby Mode
5. Click the Alignment Position buttons (Up, Down, Left, Right) until the top left corner of the scanned document aligns with the top left corner of the Alignment Window. 6. When the alignment completes, click on OK button to save settings and exit. TANDBY To save power consumption, the scanner will enter the standby mode after it is idle for a while. -
Page 22: Chapter Iv. Troubleshooting
IV. T HAPTER ROUBLESHOOTING If you encounter problems with your scanner, please review the installation and scanning instructions contained in this guide. CANNER ONNECTION The first step to take when troubleshooting connection problems with your scanner is to check all physical connections. The icon , located on the Dock, indicates if the scanner software is properly launched and the scanner and computer are communicating with each other. -
Page 23: Appendix A: Specifications
A: S PPENDIX PECIFICATIONS Image Sensor Light Source Color: 48-bit input, 24-bit output Scan Modes Grayscale: 16-bit input, 8-bit output B/W: 1-bit output Scanning Area (W x L) Max. 297 mm x 431.8 mm (12" x 17"), A3 Daily Duty Scan ( Sheets ) 2,500 Power Supply 24 Vdc/ 0.75 A... -
Page 24: Appendix B: Customer Service And Warranty
ERVICE AND ARRANTY Visit our website www.plustek.com for more customer service information. For further assistance call our customer support phone number listed on the website. One of our representatives will be happy to assist you from Monday through Friday during office working hours. -
Page 25: Statement Of Limited Warranty
TATEMENT OF IMITED ARRANTY This Statement of Limited Warranty applies only to the options you originally purchase for your use, and not for resale, from an authorized reseller. The manufacturer warranty includes all parts and labor, and is not valid without the receipt of original purchase. -
Page 26: Fcc Radio Frequency Statement
Some jurisdictions do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights that vary from jurisdiction to jurisdiction. FCC R ADIO REQUENCY...
