4.5Test Point E
Test Point E Pin description:
Pin
Signal
1
NC12
2
WAKEUP_IN
3
NC11
4
RESERVED
5
NC16
6
NC3
7
NC4
8
NC15
9
NC5
10
NC10
11
NC6
12
NC7
13
NC9
14
NC8
Note: please refer to specified TE schematic for test point if there has difference.
SIMCOM_EVB Kit_User Guide_V1.01

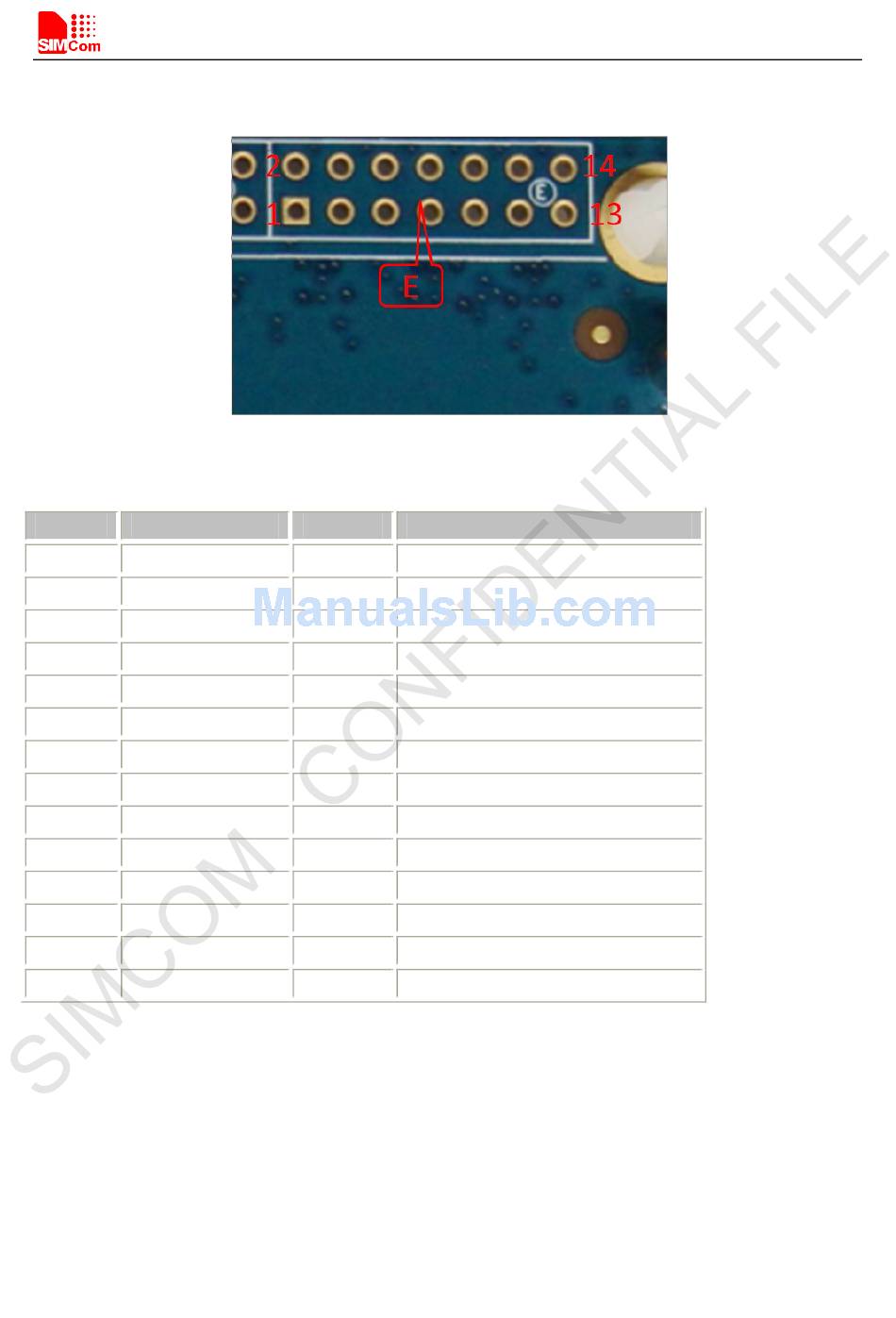

Figure11: Test Point E
I/O
Description
I
WAKEUP input
Smart Machine Smart Decision
16
2016-08-17
