Test Point B - SimCom EVB Kit User Manual

4.2 Test Point B

Test point B Pin description:
Pin Signal
1 STATUS
2 NC17
3 KBC0
4
5
6 KBC1
7 KBC2
8 GPIO11
9 KBC3
10 KBC4
11 GPIO12
12 KBR0
13 KBR1
14 KBR2
15 SIM1_DET
16 KBR3
SIMCOM_EVB Kit_User Guide_V1.01

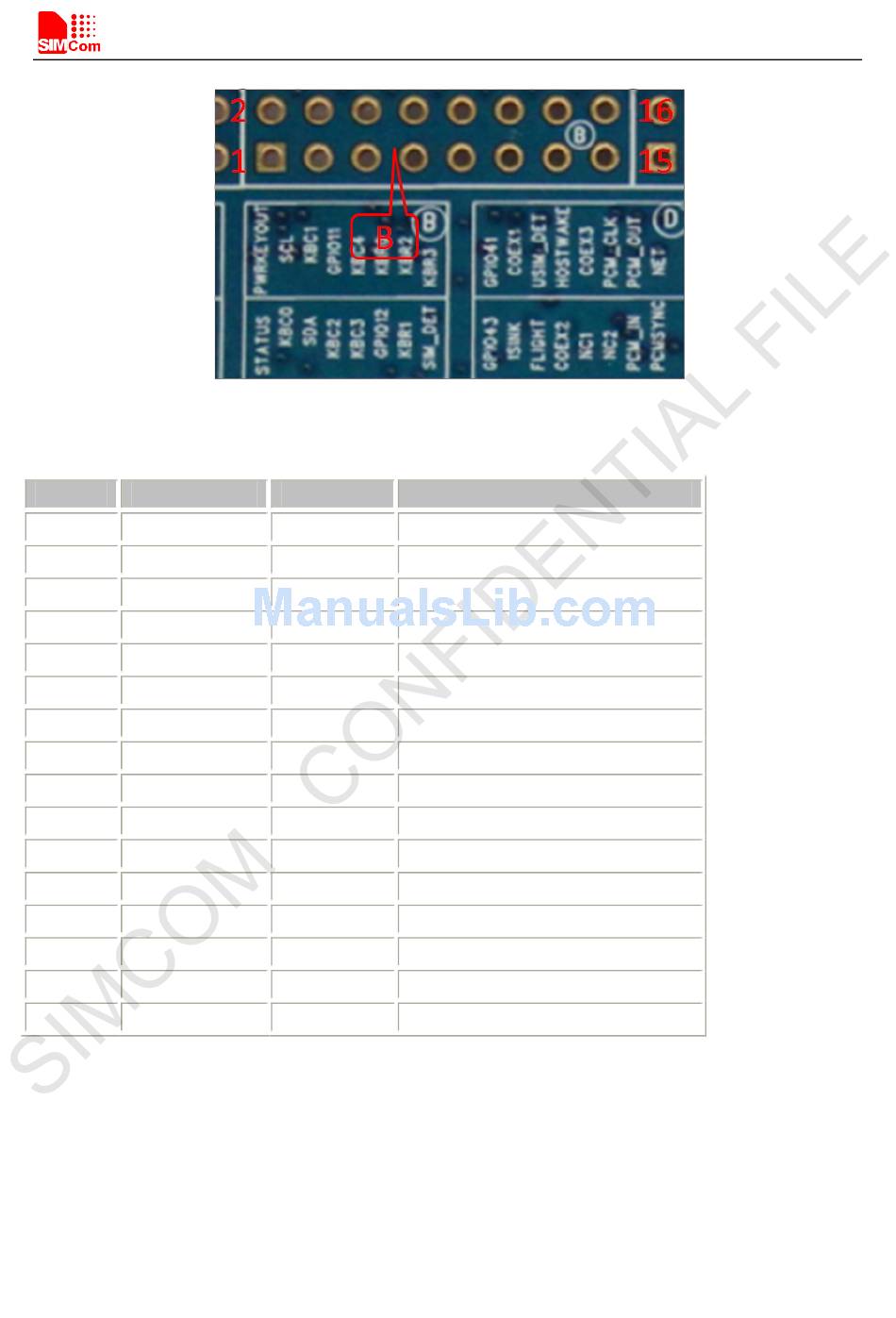

Figure8: Test Point B
