4.4Test Point D

Test point D Pin description:
Pin Signal
1 GPIO43
2 GPIO41
3 ISINK
4 COEX1
5 F LIGHT
6 SIM2_DET
7 COEX2
8 HOST_WAKE
9 NC1
10 COEX3
11
12 PCM_CLK
13 PCM_IN
14 PCM_OUT
15 PCM_SYNC
16 NET_STATUS
SIMCOM_EVB Kit_User Guide_V1.01

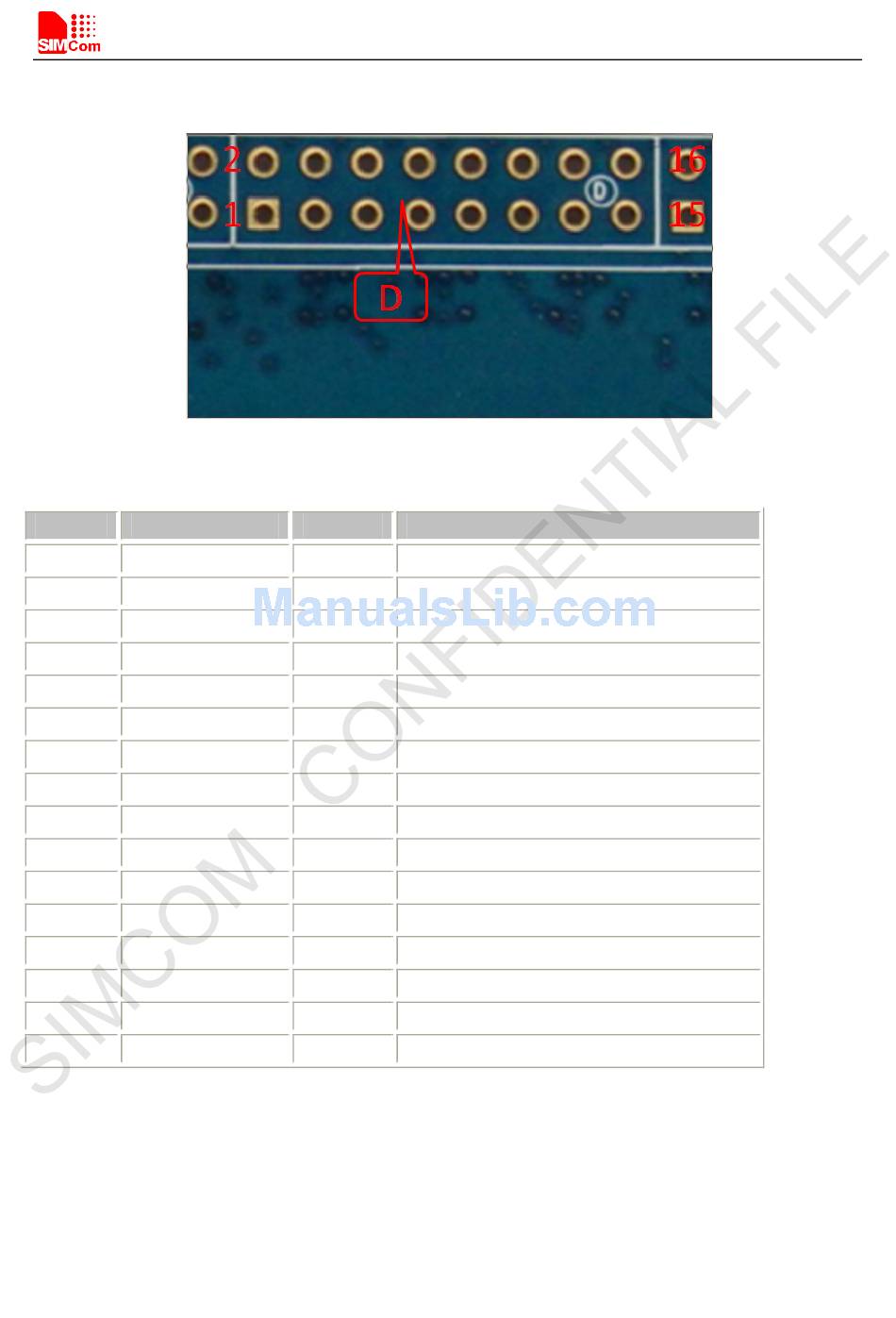

Figure10: Test Point D
I/O Description
I/O GPIO
I/O GPIO
AI Ground-referenced current sink.
O RF synchronizing between Wi-Fi and LTE
O Flight mode
I SIM detect
O RF synchronizing between Wi-Fi and LTE
O HOST WAKEUP
O RF synchronizing between Wi-Fi and LTE
O PCM data bit clock
I PCM data input
O PCM data output
O PCM data frame sync signal
O NET status
